Глушитель

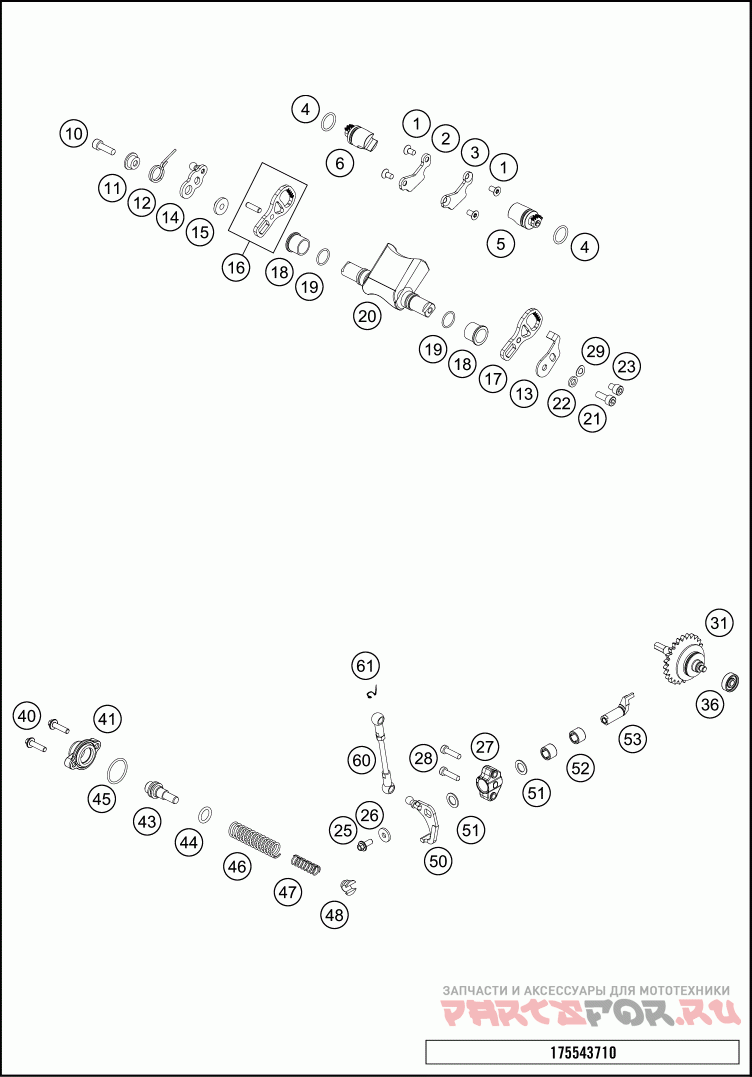

KTM 2019 300 XC-W TPI ENGINE

KTM
#oem кодцена
1
0019050106S
hex lobe countersunc screw M5x10 - 10.9
10
0912060203
AH SCREW DIN0912-M 6X20
11
54637067000
SPRING SLEEVE
12
54637066000
OVERLOAD SPRING
14
54637065000
CONTROL LEVER WITH BALL TYPE
15
54637068100
BUSHING SLEEVE
16
54837364044
GEAR SEGMENT RIGHT CPL. 08
17
54837364050
GEAR SEGMENT 300 L/S 08
18*
50437023100
exaust flap bushing
19
0770150151
O-RING 15,00X1,50 VITON
2
54837362100
RETAINING PLATE 300 R/S 08
20
55637120000
CONTROL FLAP 300
21
0912060163
AH SCREW DIN0912-M 6X16
22
54637056100
WASHER 6,5X11X2
23
0912060083
AH SCREW DIN0912-M 6X 8
25
0014050123
HH COLLAR SCREW M 5X12 WS=6
26
0349000050
WASHER DIN7349-5X15X2
27
55437058000
BEARING SUPPORT
28
0025050256
HH COLLAR SCREW M5X25 ISA30
29
0137060003
spring washer DIN 137 B - 6
3
54837363100
RETAINING PLATE 300 L/S 08
31*
55537050444
Centrifugal force governor cmpl.
36
54637098100
BALL BEARING 626LLBC3/5K
4
0770160021
O-RING 16,00X2,00 VITON
40
0014050203
HH COLLAR SCREW M 5X20 WS=6
43
54837075000
SPRING GUIDE 250/300
44
0770021120
O-RING 12,37X2,62 NBR70
45
0770240020
O-RING 24,00X2,00 NBR70
46
54837069000
ADJUST. SPRING 2003
47
54637072300
AUXILIARY SPRING MID., YELLOW
48
54637071200
SPRING INSERT
5
55437161044
CONTROL ROLLER 300 LEFT CPL.
50
47237056000
angle lever
51
0988101610
SHIM WASHER DIN988 10X16X1
52
0618101410
needle sleeve HK 1010 10x14x10
53
55437057100
ADJUSTING LEVER 250/300
6
55437162044
CONTROL ROLLER 300 RIGHT CPL.
60
55437095044
CONNECTING ROD CPL.
61
50237195055
SECURING DIN-71805-S-8
