Рама

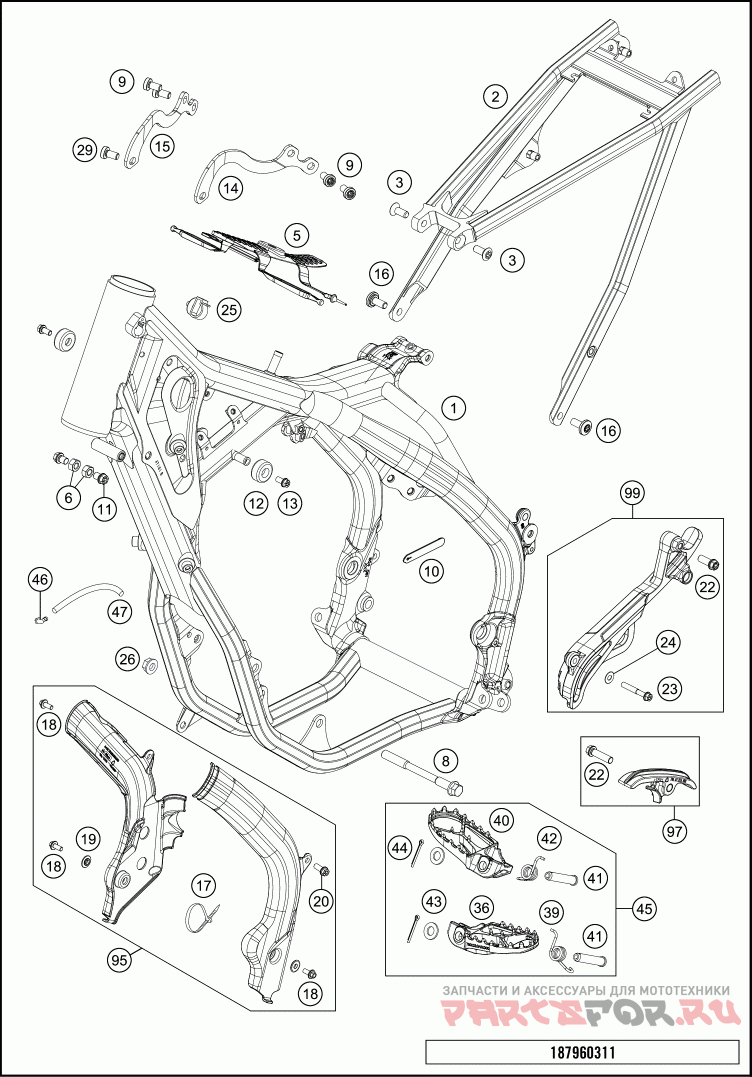

KTM 2019 250 XC-W TPI CHASSIS

KTM
#oem кодцена
1*
55603101000EB
Рама
10
60011093075
RUBBER CABLE TIE 75MM 03
11
59001037000
SPECIAL SCREW M8X26 WS=10
13
0026060136
COLLAR SCREW M6X13 ISA30
14
55403113000
ENGINE BRACE LEFT
15
55403114000
ENGINE BRACE RIGHT
16
79003003000
SPECIAL SCREW M8X18 TORX45 SS
17
44011076140
CABLE TIE 140/2,5MM BLACK
17
44011076305
CABLE TIE 300/4,8MM BLACK
18
0014050123
HH COLLAR SCREW M 5X12 WS=6
19
54803092060
BUSH F . FRAME PROTECTION 03
2*
79003002100
Subframe 2018
20
0025060126
HH collar screw M6x12 TX30
22
0025080306
HH collar screw M8x30 TX40
23
0025060406
HH collar screw M6x40 TX30
24
0125060003
WASHER DIN0125-A 6,4
25
58111076000
CABLE SUPPORT KHS NR.150-47610
26
54310086100
SELF LOCKING NUT M10 CU WS=14
29
0035080206S
SHCS M8x20 TX45
3
0019080206S
FLAT HEAD SCREW M. ISA45 M8X20
36
79603040000
FOOTREST L/S EXC 2017
39
79003045000
FOOTREST SPRING L/S 2016
40
79603041000
FOOTREST R/S EXC 2017
41
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
42
79003044000
FOOTREST SPRING R/S 2016
43
0125100003
washer DIN 125 A 10.5
44
0094032253
PIN DIN0094-3,2X25 STEEL
45
79603040033
FOOTREST-SET
46
51030022000
ANGLE PIECE 90 DEGREE M10X1
47
55007016001
PVC-HOSE 7X10 PER METER
5
79607012000
TANK REST RUBBER
6
0934080003
HEXAGON NUT DIN0934-M 8
8
77203014000
engine brac.scr. M10x115
9
0035080156S
AH-COLLAR SCREW M8X15 TORX45
95*
79003094000EB
FRAME PROTECTION SET ORANGE
97
79003053010
CHAIN SLIDING KIT BELOW CPL.16
99
55403096010
SPROCKET COVER KIT
