Коленвал и поршень для мотоциклов KTM 2019 250 XC-F ENGINE (2019)

Москва и регионы России

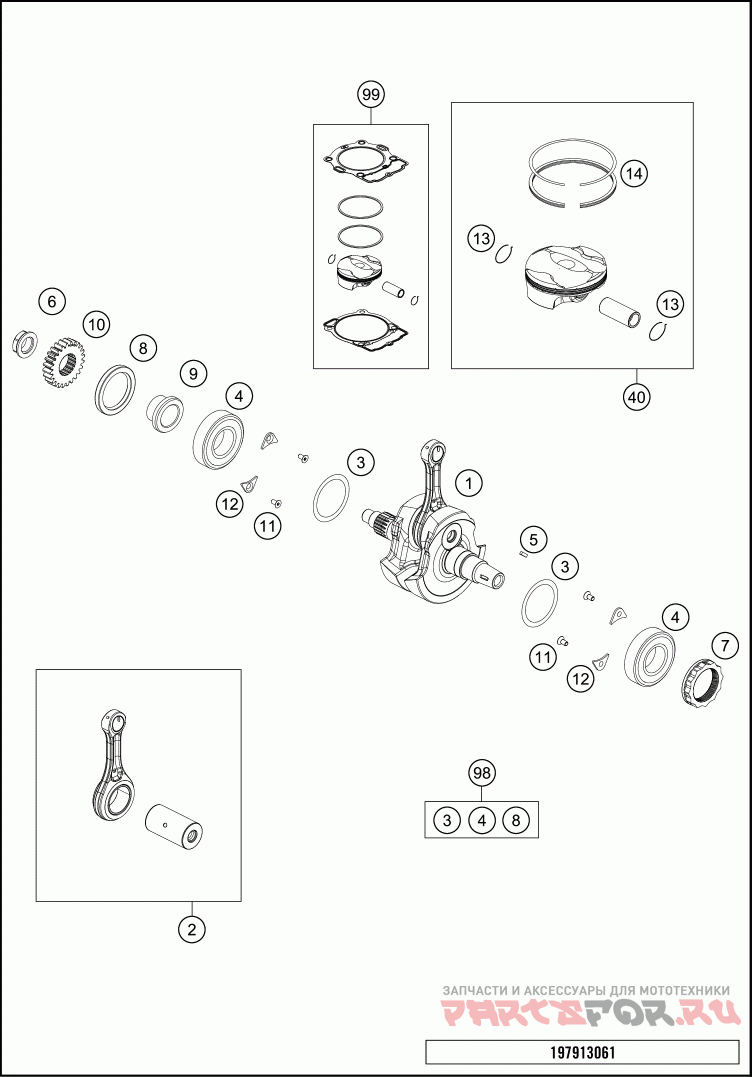

Коленвал и поршень

KTM 2019 250 XC-F ENGINE

Коленвал и поршень

#

oem код

название

цена

1*

Crankshaft cpl.

Crankshaft cpl.

10*

gear primary drive

gear primary drive

11

INT. TORX FLAT HEAD M5X12 T25

INT. TORX FLAT HEAD M5X12 T25

12

RETAINING PLATE F. CS BEARING

RETAINING PLATE F. CS BEARING

13

CIRCLIP PISTON PIN

CIRCLIP PISTON PIN

14

Кольца поршневые стандарт

Кольца поршневые стандарт

2

CONROD REPAIR KIT

CONROD REPAIR KIT

3

THRUST WASHER 988ST 32X0,15

THRUST WASHER 988ST 32X0,15

3

THRUST WASHER 988ST 32X0,1

THRUST WASHER 988ST 32X0,1

3

THRUST WASHER 988ST 32X0,30

THRUST WASHER 988ST 32X0,30

4

BEARING NJ 206 ECP/HN3C4HVA624

BEARING NJ 206 ECP/HN3C4HVA624

40

PISTON I CPL. 250

PISTON I CPL. 250

40

PISTON II CPL. 250

PISTON II CPL. 250

5

WOODRUFF KEY DIN6888-3X3,7

WOODRUFF KEY DIN6888-3X3,7

6

NUT PRIMARY WHEEL

NUT PRIMARY WHEEL

7*

Nut M27x1

Nut M27x1

8

SHAFT SEAL RING A 40X55X6 V.

SHAFT SEAL RING A 40X55X6 V.

9

SPACER BUSHING PRIMARY GEAR

SPACER BUSHING PRIMARY GEAR

98

Kurbelwellenreperaturkit

Kurbelwellenreperaturkit

99

PISTON KIT I

PISTON KIT I

99

PISTON KIT II

PISTON KIT II
