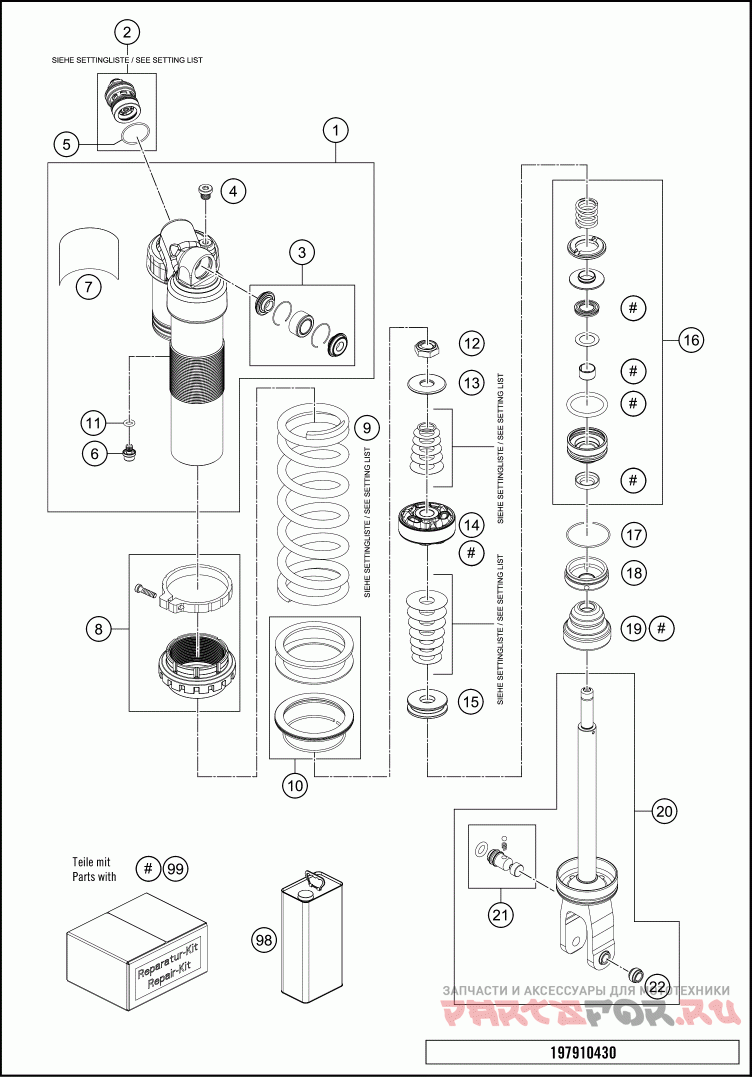

Амортизатор в разборе

KTM 2019 250 SX-F CHASSIS

KTM
#oem кодцена
1
50181144S1
MONOSHOCK UPPER PART CPL.
10
50180824S
SPRING PLATE SET
11
46810893
O-RING NBR 5,28X1,78
12*
50181207
Locking Nut M12x1 h9 SW19
13
50181092
REBOUND DISC 12X34 T2 H0
14*
50181255S1
Kolben iØ12 aØ50 kpl. MY18
15
50181091
REBOUND DISC 12X43 H8
16
50180603SA
ADAPTER D50 H28 CPL.
17
50180126
CIRCLIP 53X1,75
18
50180626
RESERVOIR CAP D=50 H=10 09
19
50181100
BUMP RUBBER Ø57/18 H46
2
50181101S23
DCC cpl.
2*
50181101S29
Druckstufe kpl.
2*
50181101S30
DCC Link 2019 US kpl.
2*
50181101S33
Druckstufe kpl.
20
50181148S1
MONOSHOCK BOTTOM PART CPL.
21
50181094S
ADJUSTING SCREW M8X0,5 CPL.
22
46811205
ADAPTOR-BUSH M10x1,50, D=15
3
R15006
REP .KIT BEAR./SEAL KGW 1525 HD
4
50180095
BLEED PLUG R 1/8
5
50180218
O-RING 25X1,5 VITON
6
36120151S
SCREW PLUG M5X6
7
52000146
STICKER WP WARNING 92X53MM
8
50180991S
SPRING ADJUSTER PLASTIC CPL.
9
91210128S
Spring 255 36 N/MM
9
91210123S
SPRING 260 39 N/MM
9
91210124S
SPRING 260 42 N/MM
9
91210100S
SPRING 260 45 N/MM
9
91210101S
SPRING 260 48 N/MM
98
50180751S1
SHOCK ABSORBER FLUID 5 LT
99*
RP10019
Revisionskit 5018 Link 2019
