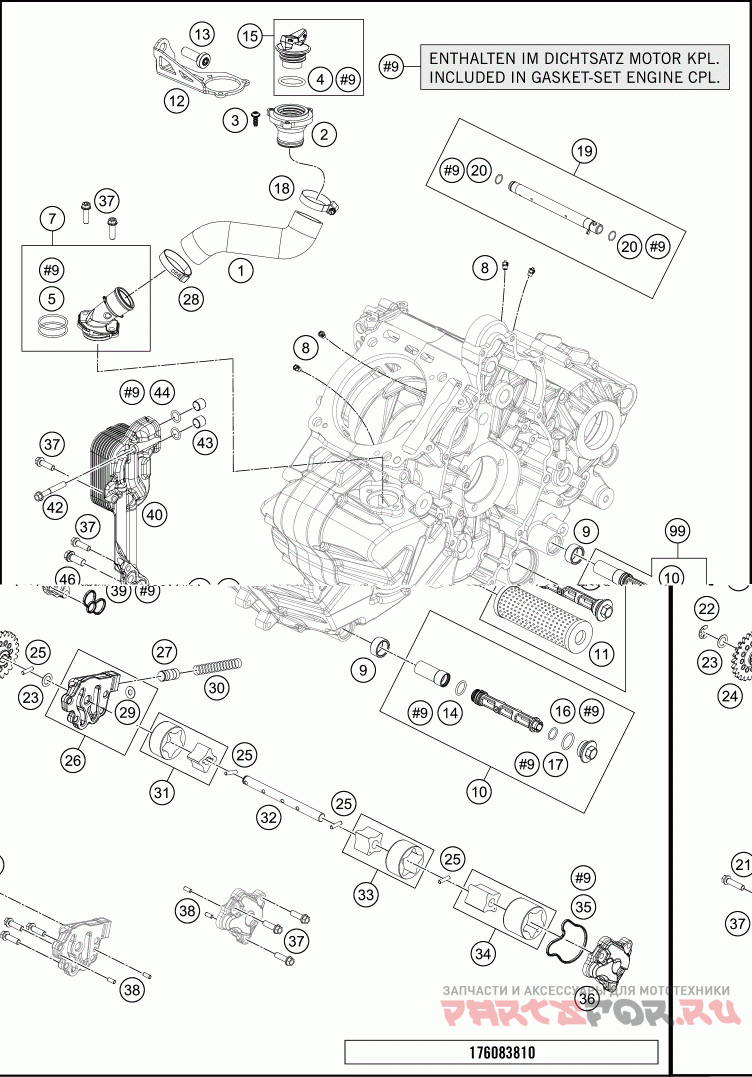

Масляная система

KTM 2019 1090 ADVENTURE R ENGINE

KTM
#oem кодцена
1
60307026100
OIL INFILLING HOSE
10
61238021100
oil screen cpl.
11
61338015200
OIL FILTER
12
60407026050
OIL FILLER PLUG SUPPORT
13
0035100309S
SHCS M10x30 TX45
14
0770140200
O-RING 14,00X2,00
15
60338085100
OIL PLUG CPL.
16
0770125015
O-RING 12,5X1,5 NBR
17
0770170200
O-RING 17,00X2,00
18
10001120000
CLAMP 25-40 SGT 4
19
61230065000
OIL INJECTION TUBE CPL. 08
2
60307129000
THREADED ADAPTER
20
0770010010
o-ring 10.00x1.00 NBR70
21
0025060256
HH collar screw M6x25 TX30
22
0799080000
retaining washer DIN 6799 - 8
23
60038007010
washer 10x16x0.5
24
60038001324
OIL PUMP GEAR 24Z
25
0402041580
needle roller NRB 4x15.8 G2
26
61238009144
PRESSURE PUMP COVER CPL.
27
60038128000
CONTROL PISTON LC8 03
28
00050376706
VARIABLE ONE-EAR CLAMP 37,6MM
29
50337073000
Регулировочная прокладка
3
0081050141
EJOT PT screw K50x14
30
61438026000
Oil pressure spring
31
60038009000
ROTOR-SET 19MM 03
32
61238002000
OIL PUMP SHAFT 08
33
61238011100
ROTOR SET 22MM
34
61238010100
eaton pump set 30mm
35
61238008150
MOLDED RING SUCTION PUMP COVER
36
61238008200
SUCTION PUMP COVER
37
0025060206
HH collar screw M6x20 TX30
38
0402050980
needle roller DIN 5402 5x9.8
39
61238051000
MOLDED RING
4
0770250032
O-RING 25,00X3,20 NBR 70
40
6923805000033
OIL COOLER CPL.
42
0025060506
HH collar screw M6x50 TX30
43
61238052000
Втулка
44
0770012021
O-RING 12X2 VITON GREEN
46
0025080206
HH collar screw M8x20
5
0770300020
O-RING 30X2,0 FPM
7
60638085000
OIL FILLING FLANGE CPL.
8
60030063070
oil jet 70 M5
9
61238017000
OIL SCREEN BUSHING 08
99
00050000068
OILFILTER SERVICE KIT
