Глушитель

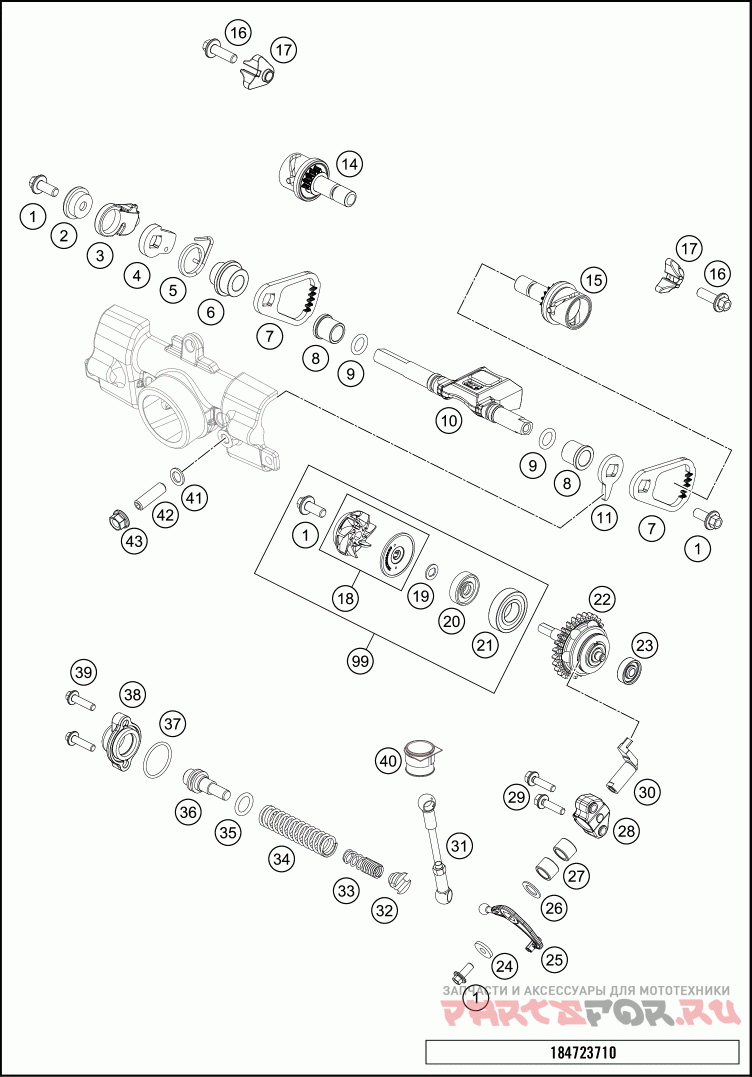

KTM 2018 TC 85 ENGINE

KTM
#oem кодцена
1
0014050123
HH COLLAR SCREW M 5X12 WS=6
2
47237068000
Bearing bush
3
47237077000
adjusting lever
4
47237036000
Attachment plate
5
47237066000
Overload spring
6
47237076000
Distance bush
7
47237067000
Gear segment
8
47237023000
Eshaust flap bushing
9
0770080201
O-Ring 8,00x2,0 viton
10
47237020000
Клапан выпускной
11
47237085000
Limit plate
14
47237065033
Steuerschieber rechts kpl.
15
47237064033
Steuerschieber links kpl.
16
0014050123
HH COLLAR SCREW M 5X12 WS=6
17
47237079000
guide piece
18
79235055044
WATER PUMP WHEEL CPL.
19
50435049000
PREFORMED WASHER
20
0760082472
SHAFT SEAL RING 8X24X7 A DUO
21
0625160020
BALL BEARING 16002 C3
22
47237050044
Centrifugal governor cpl.
23
0625006065
RILLENKUGELLAGER 696 DDM1 C3
24
0349000050
WASHER DIN7349-5X15 X2
25
47237056000
angle lever
26
0988101605
SHIM WASHER DIN988 10x16x0,5
27
0618101410
needle sleeve HK 1010 10x14x10
28
55437058000
BEARING SUPPORT
29
0025050256
HH COLLAR SCREW M5X25 ISA30
30
47237057000
Adjusting lever 85/105
31
47237095044
GEST?NGE KPL.
32
54637071200
SPRING INSERT
33
50437069050
SUPPORT SPRING
34
47237072000
Setting spring
35
0770021120
O-RING 12,37X2,62 NBR70
36
54837075000
SPRING GUIDE 250/300
37
0770240020
O-RING 24,00X2,00 NBR70
39
0014050203
HH COLLAR SCREW M 5X20 WS=6
40
47237091000
Sealing element
41
0603061001
CU-SEAL RING DIN7603-6X10 X1
42
0913060203
THREAD PIN DIN0913-M 6X20
43
77336088106
COLLAR NUT M6X1 SW8
99
50435055015
WATER PUMP REP . KIT
