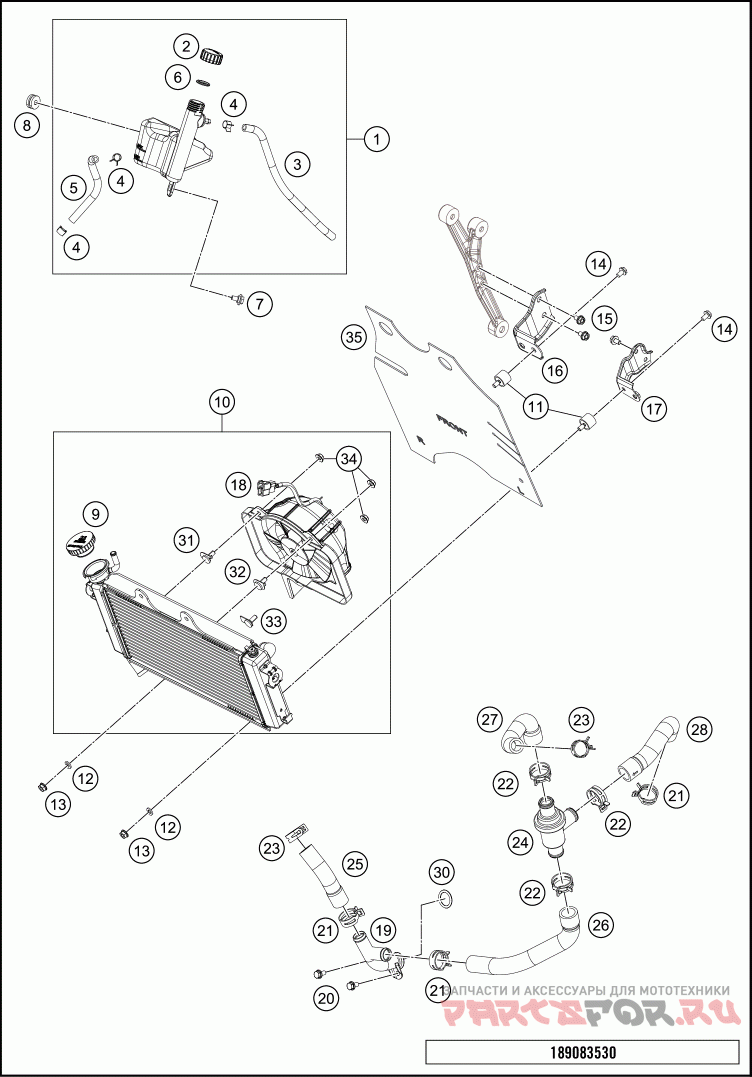

Система охлаждения

KTM 2018 RC 390 ENGINE

Система охлаждения

#

oem код

название

цена

1

EXPANSION TANK CPL.

EXPANSION TANK CPL.

2

PLUG F. EXPANSION TANK

PLUG F. EXPANSION TANK

3

TUBE DRAIN

TUBE DRAIN

4

CLAMP 10MM

CLAMP 10MM

5

HOSE 6X10X154 MM

HOSE 6X10X154 MM

6

COMPENSA TING TANK O-RING

COMPENSA TING TANK O-RING

7

SPECIAL SCREW M6X12 FLANGED

SPECIAL SCREW M6X12 FLANGED

8

GROMMET EXPANSION TANK

GROMMET EXPANSION TANK

9

RADIA TOR CAP

RADIA TOR CAP

10

K?hler kpl

K?hler kpl

11

silentbloc M6

silentbloc M6

12

WASHER SPRING B6

WASHER SPRING B6

13

FLANGED NUT M6 WS10 SELF LOCK.

FLANGED NUT M6 WS10 SELF LOCK.

14

HH COLLAR SCREW M6X8 SW10

HH COLLAR SCREW M6X8 SW10

15

HH COLLAR SCREW M6X10 SW10

HH COLLAR SCREW M6X10 SW10

16

BRACKET RADIA TOR L/S

BRACKET RADIA TOR L/S

17

BRACKET RADIA TOR R/S

BRACKET RADIA TOR R/S

18

L?fter kpl

L?fter kpl

19

COOLANT PIPE T

COOLANT PIPE T

20

BOL T FLANGED M6X14

BOL T FLANGED M6X14

21

hose clamp D26

hose clamp D26

22

HOSE CLAMP D28

HOSE CLAMP D28

23

hose clamp D24

hose clamp D24

24

THERMOST AT

THERMOST AT

25

COOLING HOSE RADIA TOR-PIPE 'T'

COOLING HOSE RADIA TOR-PIPE 'T'

26

HOSE COOLANT THERM. TO T-PIPE

HOSE COOLANT THERM. TO T-PIPE

27

COOLING HOSE THERMOST AT

COOLING HOSE THERMOST AT

28

HOSE COOLANT ENGINE - THERM.

HOSE COOLANT ENGINE - THERM.

30

O-RING 18,5X3

O-RING 18,5X3

31

BRACKET FAN MOUNTING 1

BRACKET FAN MOUNTING 1

32

BRACKET FAN MOUNTING 2

BRACKET FAN MOUNTING 2

33

BRACKET FAN MOUNTING 3

BRACKET FAN MOUNTING 3

34

Гайка

Гайка

35

Schild

Schild
