Рама

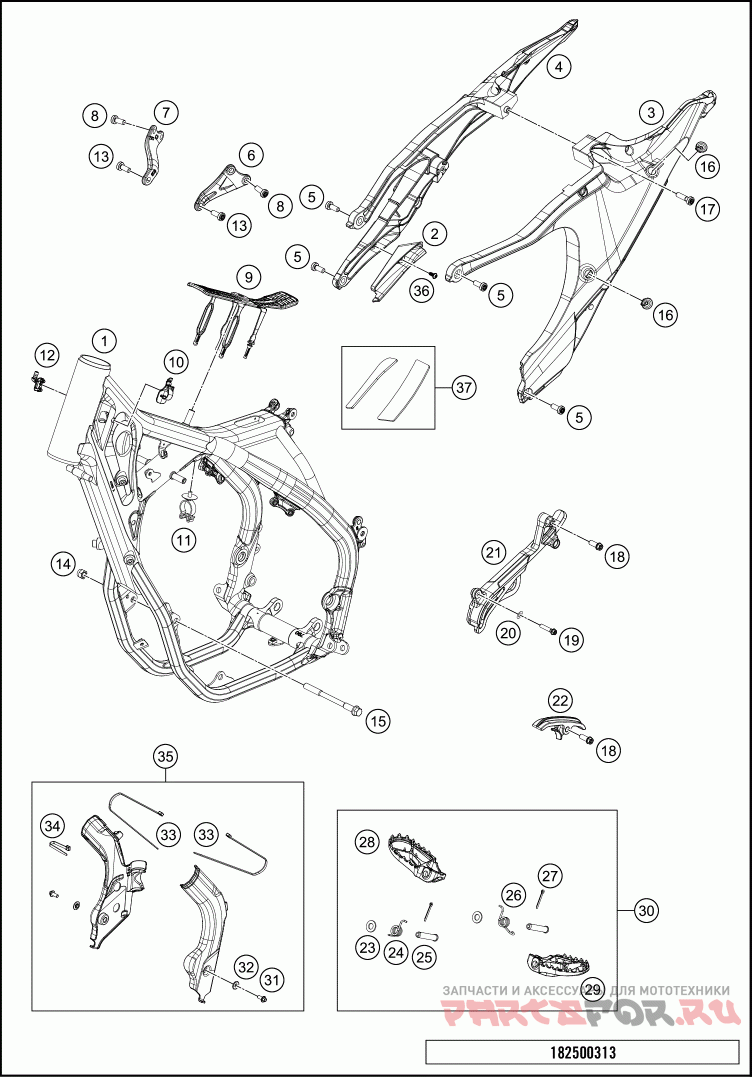

KTM 2018 FC 450 ROCKSTAR EDITION CHASSIS

KTM
#oem кодцена
1
7950300100033
Frame 795S3
5
0035080206S
SHCS M8x20 TX45
6
7950301300001S
head hanger 450 left
7
7950301400001S
head hanger 450 right
8
0035080156S
AH-COLLAR SCREW M8X15 TORX45
9
79607012000
TANK REST RUBBER
10
79111093000
wire holder le 19
11
61111041000
CABLE SUPPORT 07
12
79107013010
wire holder / fuel ventilation
13
0035080206S
SHCS M8x20 TX45
14
54310086100
SELF LOCKING NUT M10 CU WS=14
15
59003013000
ENGINEBRAC.SCREW M10X123 WS=13
16
47106003160
quick release rubber grommet
17
0035080306S
AH-COLLAR SCREW M8X30 ISA45
18
0025080306
HH collar screw M8x30 TX40
19
0025060356
HH collar screw M6x35 TX30
20
0125060003
WASHER DIN0125-A 6,4
21
79403096000
SPROCKET COVER 450
22
79003053000
CHAIN SLIDER LOWER PAR T CPL.
23
0125100003
washer DIN 125 A 10.5
24
79003044000
FOOTREST SPRING R/S 2016
25
54803044000
Footpeg bolt
26
79003045000
FOOTREST SPRING L/S 2016
27
0094032253
PIN DIN0094-3,2X25 STEEL
28
79003041000
Foot grid right 2016
29
79003040000
Foot grid left 2016
30
79003040033
Footpegs left+right cpl. 16
31
0014050123
HH COLLAR SCREW M 5X12 WS=6
32
54803092060
BUSH F . FRAME PROTECTION 03
33
44011076305
CABLE TIE 300/4,8MM BLACK
34
76311093200
CABLE TIE 200MM
36
0081050121
EJOT PT screw K50x12
