Рама

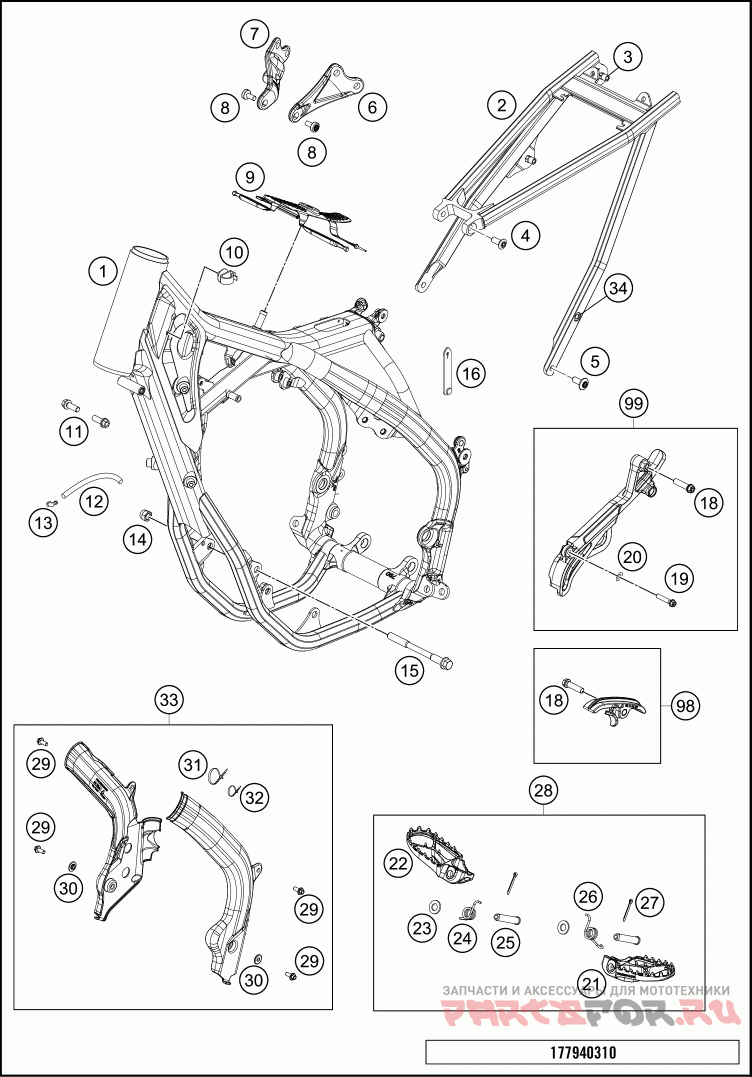

KTM 2018 450 SX-F CHASSIS

KTM
#oem кодцена
1
79403001400EB
Рама
2
79003002100
SUBFRAME 2016
3
77303139000
BLIND RIVET NUT EM6-60LF/HX
4
0019080206S
FLAT HEAD SCREW M. ISA45 M8X20
5
79003003000
SPECIAL SCREW M8X18 TORX45 SS
6
79403013100
ENGINE BRACE LEFT
7
79403014100
ENGINE BRACE RIGHT
8
0035080206S
SHCS M8x20 TX45
9
79007012000
TANK REST RUBBER
10
58111076000
CABLE SUPPORT KHS NR.150-47610
11
0025080166S
HH collar screw M8x16 TX40 SL
12
55007016001
PVC-HOSE 7X10 PER METER
14
54310086100
SELF LOCKING NUT M10 CU WS=14
15
59003013000
ENGINEBRAC.SCREW M10X123 WS=13
16
60011093075
RUBBER CABLE TIE 75MM 03
18
0025080306
HH collar screw M8x30 TX40
19
0025060356
HH collar screw M6x35 TX30
20
0125060003
WASHER DIN0125-A 6,4
21
79003040000
FOOTREST L/S 2016
22
79003041000
FOOTREST R/S 2016
23
0125100003
washer DIN 125 A 10.5
24
79003044000
FOOTREST SPRING R/S 2016
25
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
26
79003045000
FOOTREST SPRING L/S 2016
27
0094032253
PIN DIN0094-3,2X25 STEEL
28
79003040033
FOOT PEGS SET CPL. 2016
29
0014050123
HH COLLAR SCREW M 5X12 WS=6
30
54803092060
BUSH F . FRAME PROTECTION 03
31
44011076305
CABLE TIE 300/4,8MM BLACK
32
44011076140
CABLE TIE 140/2,5MM BLACK
33
79003094000EB
FRAME PROTECTION SET ORANGE
34
79003002080
BLIND RIVET NUT M6 KNURLED
98
79003053010
CHAIN SLIDING KIT BELOW CPL.16
99
79403096010
SPROCKET COVER KIT
