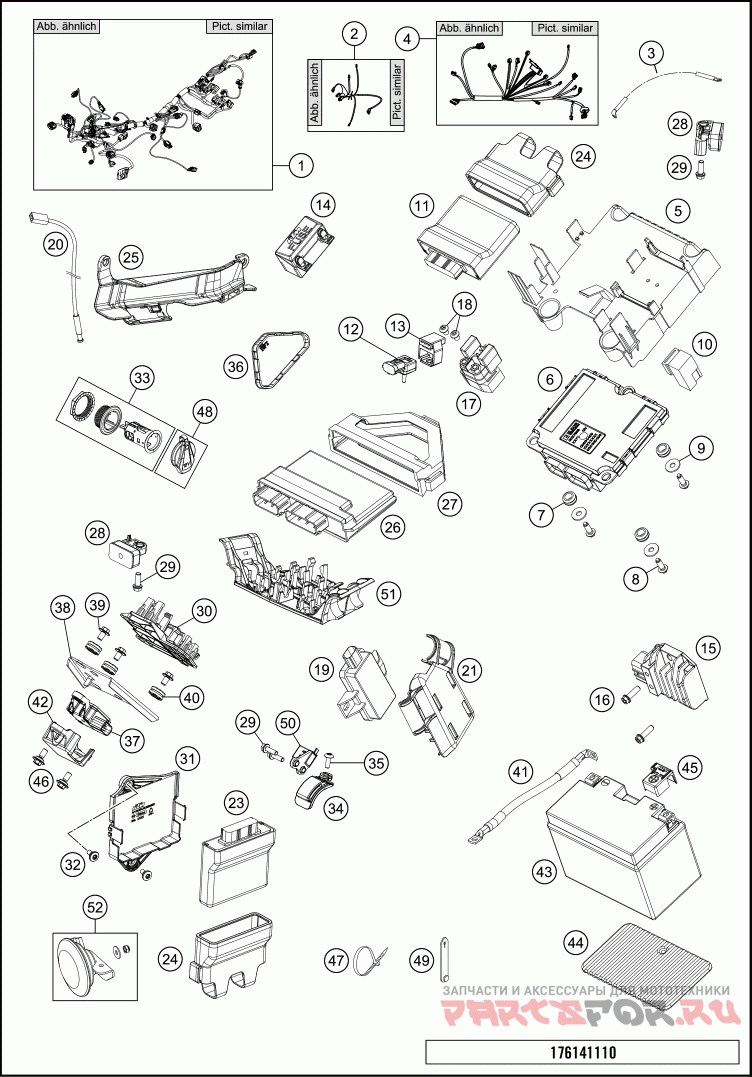

Электрика для мотоциклов KTM 2018 1290 SUPER DUKE GT BLACK CHASSIS (2018)

Москва и регионы России

Электрика

KTM 2018 1290 SUPER DUKE GT BLACK CHASSIS

Электрика

#

oem код

название

цена

1

MAIN HARNESS CPL.

MAIN HARNESS CPL.

2

engine harness

engine harness

3

BA TTERY CABLE

BA TTERY CABLE

4

REAR WIRING HARNESS

REAR WIRING HARNESS

5

MCU HOLDER

MCU HOLDER

6

MOTORCYCLE CONTROL UNIT 2.1

MOTORCYCLE CONTROL UNIT 2.1

7

rubber grommet 9x11x16x8.5 mm

rubber grommet 9x11x16x8.5 mm

8

SCREW F. PLASTIC K60X20AL SW6

SCREW F. PLASTIC K60X20AL SW6

9

WASHER DIN9021-A 6,4

WASHER DIN9021-A 6,4

10

RELA Y CM1A-R-12 V-H80 07

RELA Y CM1A-R-12 V-H80 07

11

ELECTRONIC CONTROL UNIT SAFE

ELECTRONIC CONTROL UNIT SAFE

12

PRESSURE SENSOR 06

PRESSURE SENSOR 06

13

RUBBER SUPP . PRESSURE SENS. 06

RUBBER SUPP . PRESSURE SENS. 06

14

RUBBER CASING FUSE BOX

RUBBER CASING FUSE BOX

15

VOL TAGE REGULA TOR

VOL TAGE REGULA TOR

16

HH collar screw M6x20 TX30

HH collar screw M6x20 TX30

17

STARTER RELA Y 07

STARTER RELA Y 07

18

COU.SUNK SCR. AH ISO7380 M6X10

COU.SUNK SCR. AH ISO7380 M6X10

19

RECEIVER AIR PRESSURE SENSOR

RECEIVER AIR PRESSURE SENSOR

20

TEMPERA TURE SENSOR

TEMPERA TURE SENSOR

21

TPMS holder

TPMS holder

23

CONTROL UNIT CURVE LIGHT

CONTROL UNIT CURVE LIGHT

24

RUBBER EDS-CONTROL UNIT

RUBBER EDS-CONTROL UNIT

25

CABLE CHANNEL R/S

CABLE CHANNEL R/S

26

ECU EFI

ECU EFI

27

ECU RUBBER BRACKET

ECU RUBBER BRACKET

28

ACCLERA TION SENSOR

ACCLERA TION SENSOR

29

HH collar screw M6x16 TX30

HH collar screw M6x16 TX30

30

CONNECTOR BOARD FRONT

CONNECTOR BOARD FRONT

31

LCU HOLDER

LCU HOLDER

32

special screw M5x17

special screw M5x17

33

Power socket 12V

Power socket 12V

34

MAGNET HOLDER

MAGNET HOLDER

35

SCREW M5X14 TORX 25 07

SCREW M5X14 TORX 25 07

36

HEA TINGSWITCH COVER

HEA TINGSWITCH COVER

37

SLOPING POSITIONS SENSOR

SLOPING POSITIONS SENSOR

38

SUPPORT SLOPING POS. SENSOR

SUPPORT SLOPING POS. SENSOR

39

HH COLLAR SCREW M6X10 TX30

HH COLLAR SCREW M6X10 TX30

40

DAMP . COMPONENT ABS MODUL

DAMP . COMPONENT ABS MODUL

41

GROUND CABLE BA TT.-FRAME 16MM

GROUND CABLE BA TT.-FRAME 16MM

42

COVER SENSOR BOX

COVER SENSOR BOX

43

BA TTERY 12V/11AH 03

BA TTERY 12V/11AH 03

44

RUBBER PLATE FOR BA TTERY

RUBBER PLATE FOR BA TTERY

45

COVER POSITIVE POLE

COVER POSITIVE POLE

46

SPECIAL SCREW M6X15X3

SPECIAL SCREW M6X15X3

47

CABLE TIE 140/2,5MM BLACK

CABLE TIE 140/2,5MM BLACK

47

CABLE TIE 200/3,6MM BLACK

CABLE TIE 200/3,6MM BLACK

47

CABLE TIE 300/4,8MM BLACK

CABLE TIE 300/4,8MM BLACK

48

Lid 12V-socket

Lid 12V-socket

49

RUBBER CABLE TIE 75MM 03

RUBBER CABLE TIE 75MM 03

50

WHEEL TRA VEL SENSOR

WHEEL TRA VEL SENSOR

51

CONNECTOR BOARD REAR

CONNECTOR BOARD REAR

52

Direct current horn complete

Direct current horn complete
