Глушитель для мотоциклов KTM 2018 125 SX ENGINE (2018)

Москва и регионы России

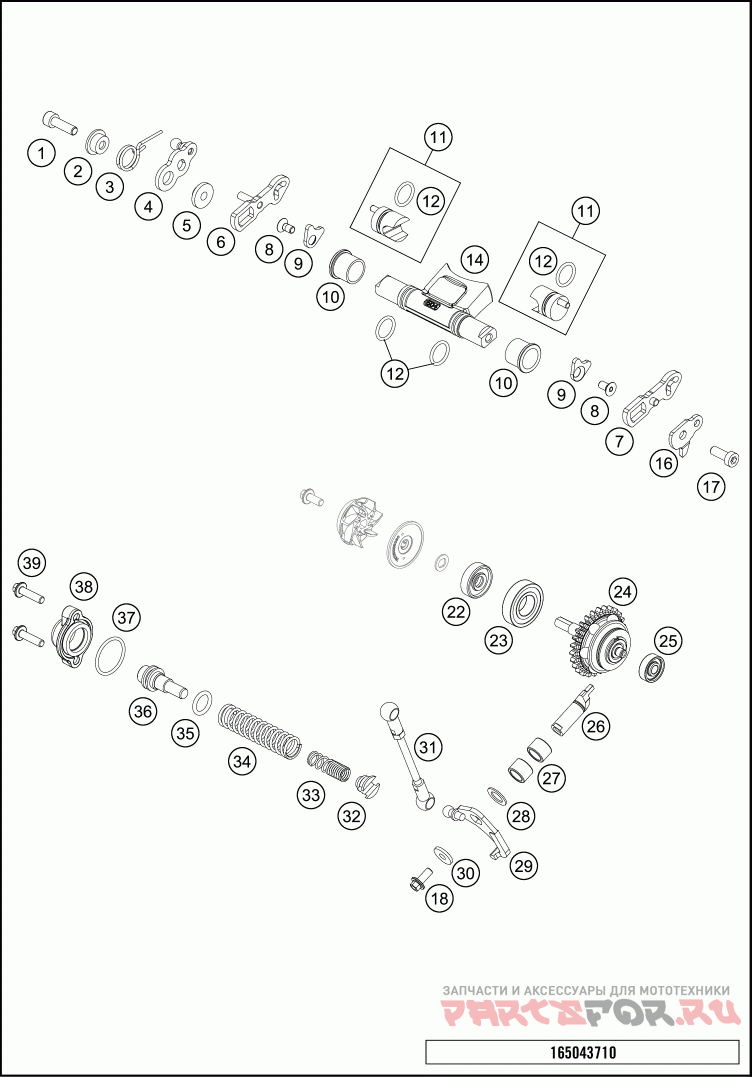

Глушитель

KTM 2018 125 SX ENGINE

Глушитель

#

oem код

название

цена

1

AH SCREW DIN0912-M 6X20

AH SCREW DIN0912-M 6X20

2

SPRING SLEEVE

SPRING SLEEVE

3

OVERLOAD SPRING

OVERLOAD SPRING

4

CONTROL LEVER WITH BALL TYPE

CONTROL LEVER WITH BALL TYPE

5

BUSHING SLEEVE

BUSHING SLEEVE

6

SLOTTED LEVER R/S

SLOTTED LEVER R/S

7

SLOTTED LEVER L/S

SLOTTED LEVER L/S

8

INT . TORX FLAT HEAD M5X10 10.9

INT . TORX FLAT HEAD M5X10 10.9

9

LOCK PLATE

LOCK PLATE

10

BEARING SLEEVE F. CONTROL FLAP

BEARING SLEEVE F. CONTROL FLAP

11

CONTROLLER DRUM CPL.

CONTROLLER DRUM CPL.

12

O-RING 14X2 FPM 75SH

O-RING 14X2 FPM 75SH

14

CONTROL FLAP

CONTROL FLAP

16

STOP PLATE

STOP PLATE

17

AH SCREW DIN0912-M 6X16

AH SCREW DIN0912-M 6X16

18

HH COLLAR SCREW M 5X12 WS=6

HH COLLAR SCREW M 5X12 WS=6

22

SHAFT SEAL RING 8X24X7 A DUO

SHAFT SEAL RING 8X24X7 A DUO

23

BALL BEARING 16002 C3

BALL BEARING 16002 C3

24

CENTRIFUGAL UNIT

CENTRIFUGAL UNIT

25

BALL BEARING 626LLBC3/5K

BALL BEARING 626LLBC3/5K

26

ADJUSTING LEVER 125/150 2016

ADJUSTING LEVER 125/150 2016

27

NEEDLE SLEEVE HK 1010 10/14/10

NEEDLE SLEEVE HK 1010 10/14/10

28

SHIM WASHER DIN988 10X16X1

SHIM WASHER DIN988 10X16X1

29

WINKELHEBEL

WINKELHEBEL

30

WASHER DIN7349-5X15 X2

WASHER DIN7349-5X15 X2

31

CONNECTING ROD CPL.

CONNECTING ROD CPL.

32

SPRING INSERT

SPRING INSERT

33

SUPPORT SPRING

SUPPORT SPRING

34

ADJUST . SPRING 2003

ADJUST . SPRING 2003

35

O-RING 12,37X2,62 NBR70

O-RING 12,37X2,62 NBR70

36

SPRING GUIDE 250/300

SPRING GUIDE 250/300

37

O-RING 24,00X2,00 NBR70

O-RING 24,00X2,00 NBR70

39

HH COLLAR SCREW M 5X20 WS=6

HH COLLAR SCREW M 5X20 WS=6
