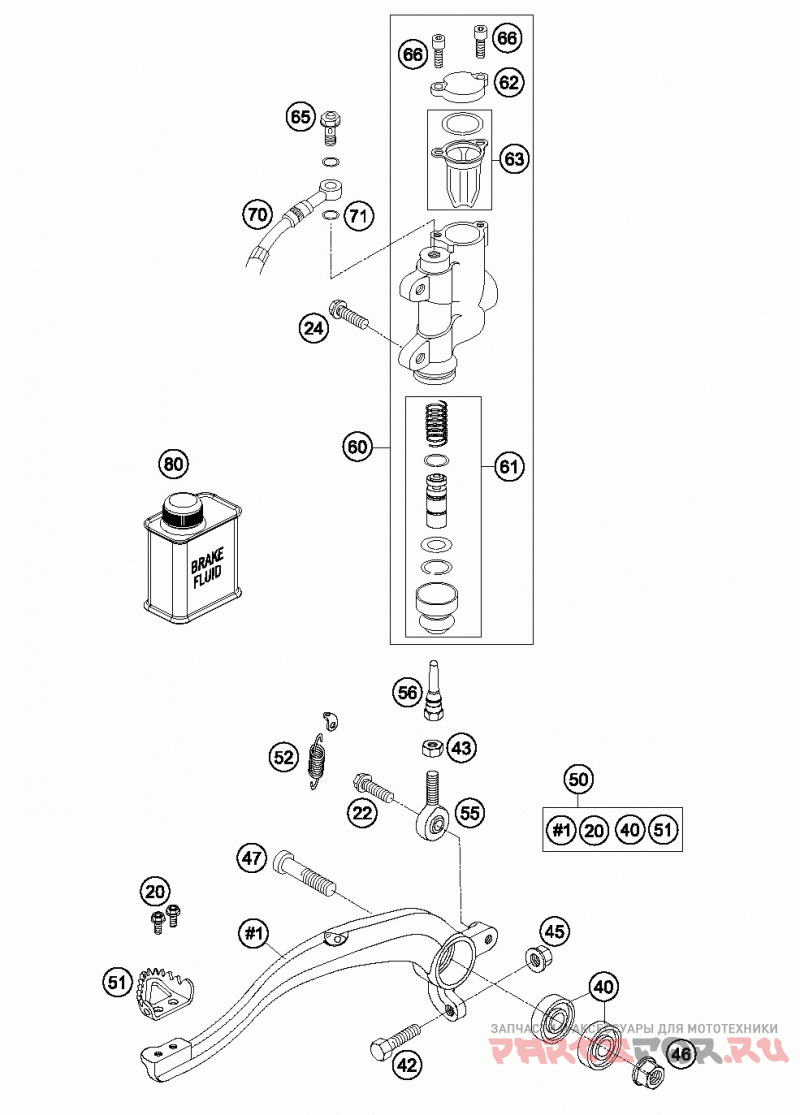

Тормозной цилиндр задний

KTM 85 SX CHASSIS

KTM
#oem кодцена
20
0025050126
HH collar screw M5x12 TX30
22
0025060206
HH collar screw M6x20 TX30
24
0025060126
HH collar screw M6x12 TX30
40
0625060002
deep groove ball bearing SKF 6000-2RS1
42
59001037000
SPECIAL SCREW M8X26 WS=10
43
0934060003
hex nut DIN 934 M6
45
46030045000
flanged nut M8 WS10
46
54630044000
COLLAR NUT M10 WS=13
47
0032100406S
AH-COLLAR SCREW M10X40 ISA45
50
47013050044
FOOT BRAKE LEVER CPL. 85 SX 03
51
54813051000
STEP PLATE FOR BRAKE LEVER
52*
54603062100
RETURN SPRING FOR BRAKE LEVER
55
54813055100
Joint head CMP6
56
47013056100
PRESSURE ROD 85 SX 06
60
47013060200
FOOT BRAKE CYL.R. CPL. D=11 05
60
4701306030001S
FOOT BRAKE CYL. REAR CPL. D=12
61
47013061000
REP. SET PISTON REAR D=11 2003
61
47013061100
REP. SET PISTON REAR D=12 2004
62
47013062000
CYLINDER COVER REAR 85 SX 03
63
47013063000
GASKET CYLINDER COVER REAR 03
65
47013025000
HOLLOW SCREW BRAKE CYLINDER 03
66
0912040103
AH.SCREW DIN0912-M 4X10
70
47013070000
BRAKE HOSE REAR 85 SX 03
71
0770080019
O-RING 8,00X1,00 FORMULA
80
00062030000
BRAKE FLUID DOT5.1 0,25L
