  5. 450 SX-F & XC-F ENGINE

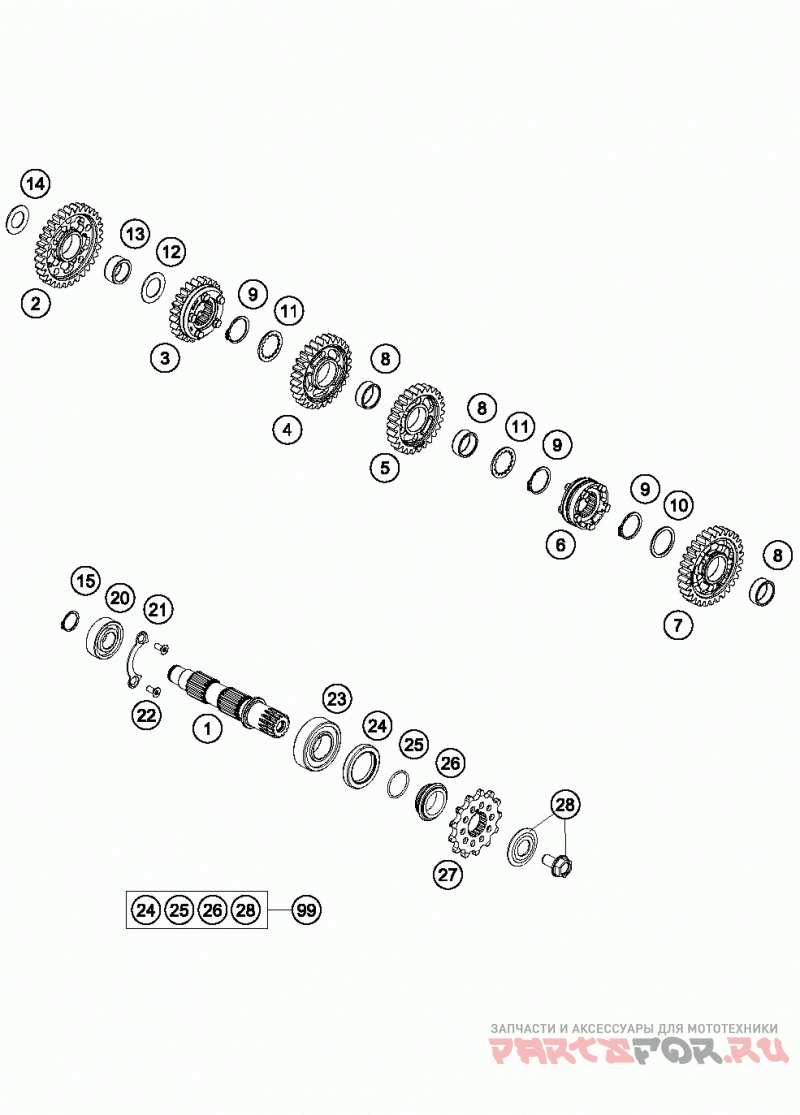

Трансмиссия 2-контрпривод

KTM 450 SX-F & XC-F ENGINE

KTM
#oem кодцена
1
79433010000
DRIVEN SHAFT
2
79433011100
Idler gear 1st gear
3
79433015200
Sliding gear 5th gear
4
79433013000
IDLER GEAR 3RD G.
5
79433014100
Idler gear 4th gear
6
79433017100
Shift collar
7
79433012100
Idler gear 2nd gear
8
0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
9
0471250120
CIRCLIP DIN0471-25X1,2
10
78033031000
STOP DISK 26 X 32 X 1,5
11
78033033000
STOP DISK 23 X 32 X 1,5
12
59033080000
SHIM 20X32X1
13
0405202612
NEEDLE BEARING K 20X26X12
14
56033030000
STOP DISC 17,2X30X1
15
0471170015
CIRCLIP DIN 0471-17X1, 5
20
0625062035
BALL BEARING 6203 JR2 C3
21
78033132000
TAB WASHER BEARING COUNT.SHAFT
22
0019050121S
INT. TORX FLAT HEAD M5X12 T25
23
49030023000
cylindrical roller bearing NJ205
24
0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
25
0770020220
O-RING 25,12X1,78 NBR70
26
78133014000
SPACER SLEEVE COUNTER
27
79233029013
SPROCKET 13T
27
79233029014
SPROCKET 14T
28
59033034044
SCREW 10.9+SPRING WASHER
99
00050000941
COUNTER SHAFT REP.KIT 4 STROKE
