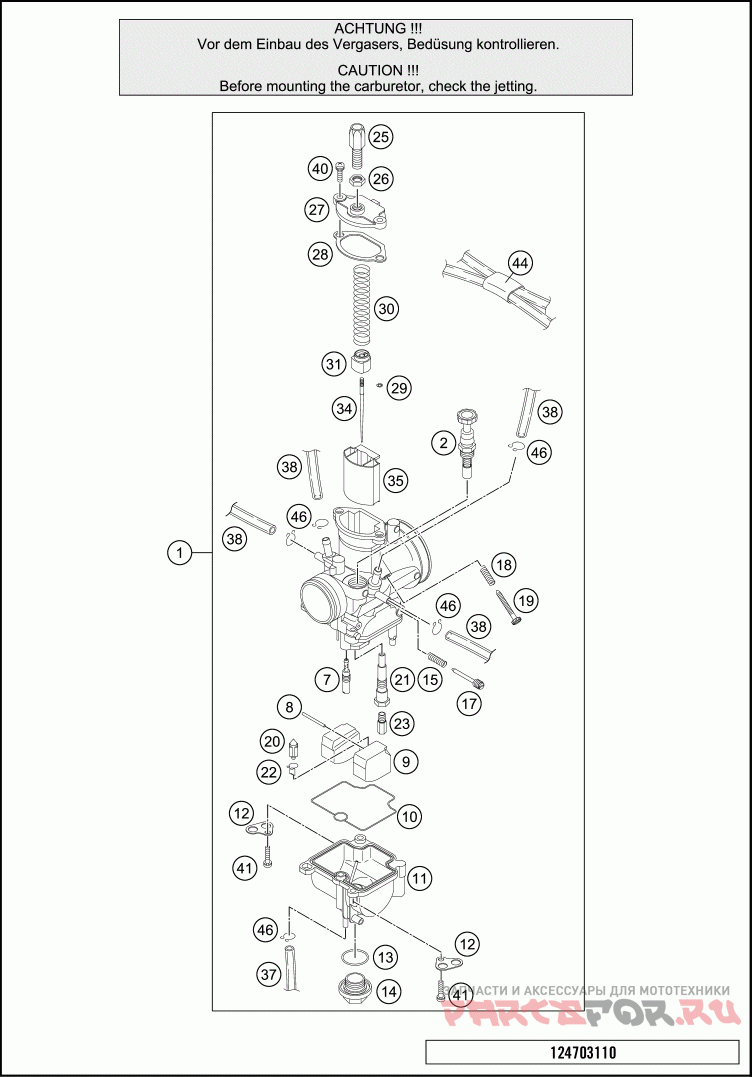

Карбюратор

KTM 2017 TC 85 ENGINE

KTM
#oem кодцена
1
47031001000
CARBURET OR KEIHIN PWK 28 2003
2
54631245000
STARTER PISTON CPL.
7
54531607038
IDLE JET 38 KEIHIN
7
54531607040
IDLE JET 40 KEIHIN
7
54531607042
IDLE JET 42 KEIHIN
7
54531607045
IDLE JET 45 KEIHIN
7
54531607048
IDLE JET 48 KEIHIN
7
54531607050
IDLE JET 50 KEIHIN
8
57331008000
ARM PIN FLOA T
9
47031009000
FLOA T CPL. PWK28 03
10
47031010000
FLOA T CHAMBER GASKET
11
47031011000
FLOA T CHAMBER PWK28 03
12
54531612100
RET AINING PLATE FOR BLEEDER
13
0770180230
O-RING 18,00X2,30 NBR 70
14
54531699000
PLUG M 18X1
15
54531615000
SPRING FOR ADJUSTMENT SCREW
17
54531617000
ADJUSTME NT SCREW
18
54631118000
Пружина
19
54631219100
ADJUSTME NT SCREW M 5
20
47031020000
FLOA T NEEDLE CPL.
21
47031021000
NEEDLE JET
22
54531621000
Зажим
23
54531623115
MAIN JET 115 KEIHIN
23
54531623118
MAIN JET 118 KEIHIN
23
54531623120
MAIN JET 120 KEIHIN
23
54531623122
MAIN JET 122 KEIHIN
23
54531623125
MAIN JET 125 KEIHIN
23
54531623128
MAIN JET 128 KEIHIN
23
54531623130
MAIN JET 130 KEIHIN
23
54531623132
MAIN JET 132 KEIHIN
23
54531623135
MAIN JET 135 KEIHIN
25
54531625000
ADJUSTME NT SCREW M 6X0,75
26
52031126000
HEXAGON NUT M 6X0,75 DIN0439
27
47031027000
CARBURET OR COVER PWK28 03
28
47031028000
CARBURET OR COVER GASKET PWK28
29
54531629000
CLIP FOR JET NEEDLE
30
47031030000
THROTTLE VALVE SPRING
31
47031031000
SPRING CAP
34
47031034000
JET NEEDLE N5HG KEIHIN
34
47031034100
JET NEEDLE N5HF KEIHIN
34
47031034200
JET NEEDLE N5HH KEIHIN
35
47031035000
THROTTLE VALVE 3,5
37
52031137001
PVC-HOSE 3X5MM
38
31007007101
PVC-HOSE 4X6MM
40
0016040133
% HH COLLAR SCREW M 4X16 WS=6
41
0985040163
FLAT HEAD SCREW DIN7985-M 4X16
44
47031084000
PLASTIC-CL IP
46
54531696000
CLAMP 6 MM
