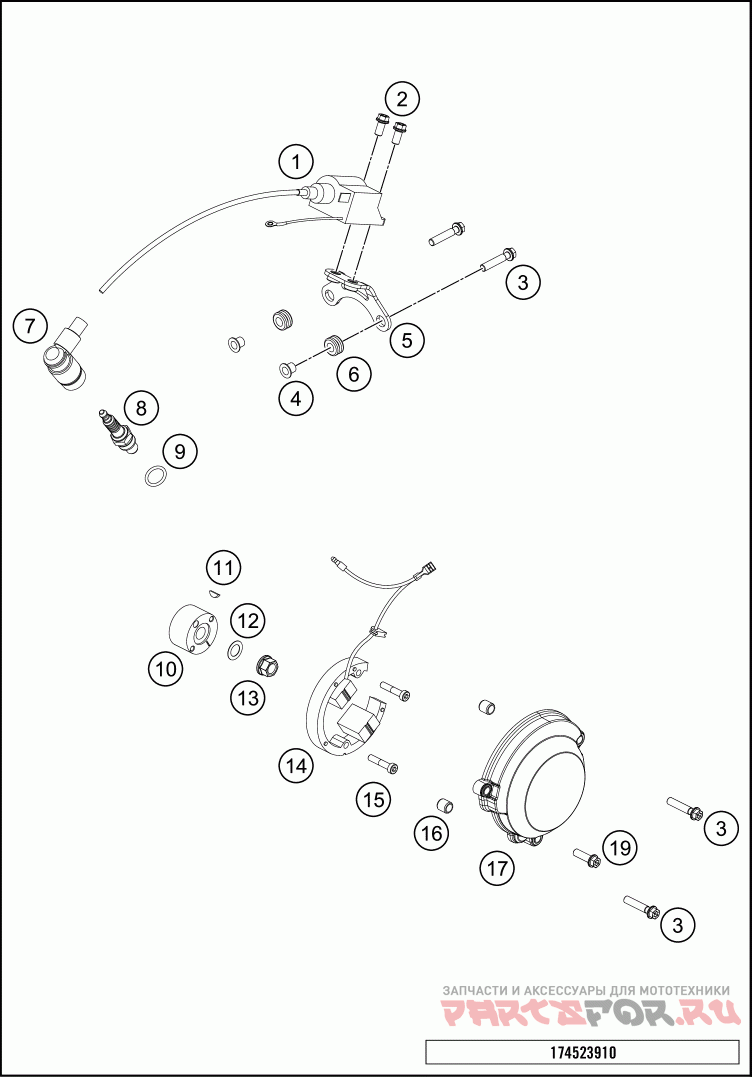

Система зажигания

KTM 2017 TC 50 ENGINE

KTM
#oem кодцена
1
45239006100
Катушка зажигания
2
0025060126
HH COLLAR SCREW M6X12 TX30
3
0025060306
HH COLLAR SCREW M6X30 TX30
4
45239060050
COLLAR BUSHING 6,3X8X13X9,5
5
45239010000
IGNIT . COIL RET AIN. PLATE CPL.
6
31008060000
RUBBER SLEEVE D=8MM OPEN
7
46239090000
SPARK PLUG CONNECTOR
8
45239093000
SPARK PLUG LR8B
9
0770012030
O-RING 12,00X3,0 VITON 75
10
45139005100
FLYWEEL ROTOR 50 2004
11
0888025030
WOODRUFF KEY DIN6888-2,5X3
12
45132020000
WASHER 10,4X16,8X0,4
13
58414030000
HH COLLAR NUT M10X1,25 WS=13
14
45139004000
FLYWHEEL STATOR 50CCM LC 2001
15
0012050253
AH SCREW DIN6912 M5X25
16
45230024000
DOWEL 9,8X7X5.5
17
45230602000
ignition cover
19
0025060206
HH COLLAR SCREW M6X20 TX30
