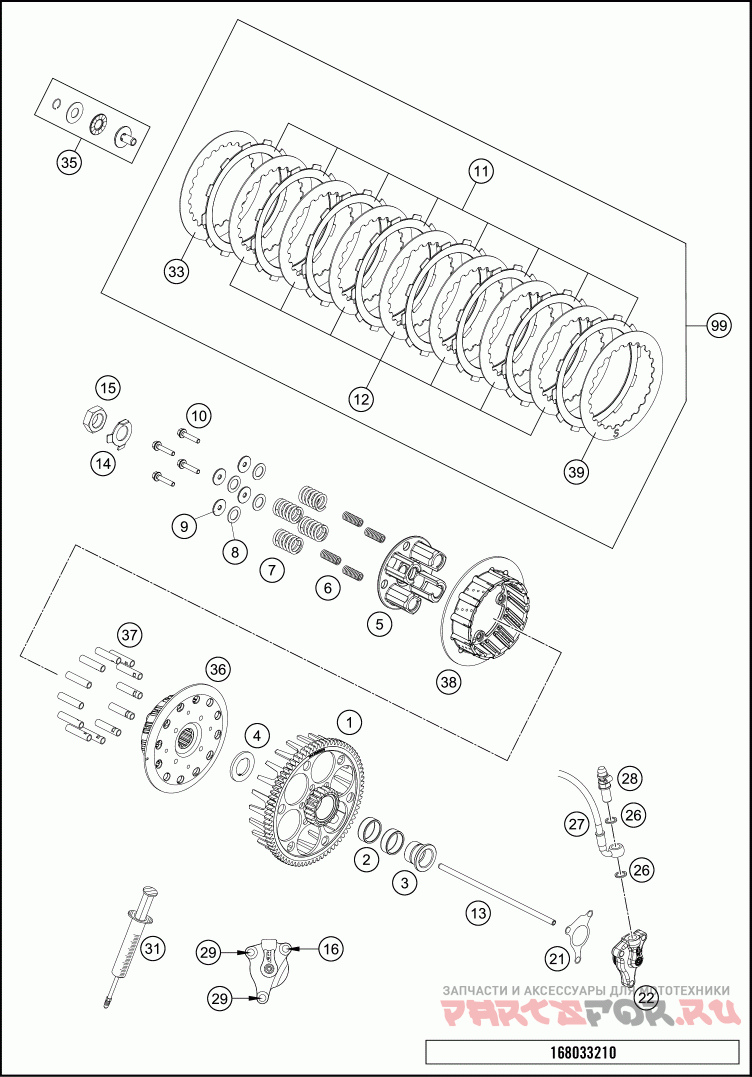

Сцепление

KTM 2017 FS 450 ENGINE

KTM
#oem кодцена
1
79432101076
CLUTCH CAGE
2
0405252910
NEEDLE BEAR K 25X29X10
3
78132015100
COLLARSLEEVE
4
78932009000
WASHER 22 X 36,5 X 3
5
78932103000
PRESSURE PLATE
6
59032004200
OPENING SPRING APTC 04
7
59032005100
CLUTCH SPRING APTC 2004
8
59032000101
WASHER 20 X 12,5 X 1
9
59032006100
WASHER 5,5X20X1,5
10
0025050256
HH COLLAR SCREW M5X25 ISA30
11
79532011000
LINING DISC 2MM 04
12
59032010200
INTERMEDIA TE DISC 1,4MM 2002
13
79432054000
PUSH ROD
14
78132018100
TAB WASHER
15
0936181505
HEXAGON NUT DIN0936-M18X1 ,5 R.
16
0025060306
HH COLLAR SCREW M6X30 TX30
21
59032065000
GASKET FOR SLAVE CYLINDER
26
0603100141
COPPER GASKET DIN7603-10X14X1
28
59032062000
HOLLOW SCREW + COPPER GASKET
29
0025060206
HH COLLAR SCREW M6X20 TX30
31
50329050000
VENT INJEKTION HYDR. CLUTCH
33
59032010100
INTERMEDIA TE DISC 1MM 2002
35
78132057144
PRESSURE PIECE CPL.
36
78932102010
HUB INSIDE
37
78932104000
Гильца
38
78932102020
HUB OUTSIDE
39
78932010000
INTERMEDIA TE DISC 1MM
99
79532010033
CLUTCH DISC KIT
