  5. 2017 FE 501 CHASSIS

Рама

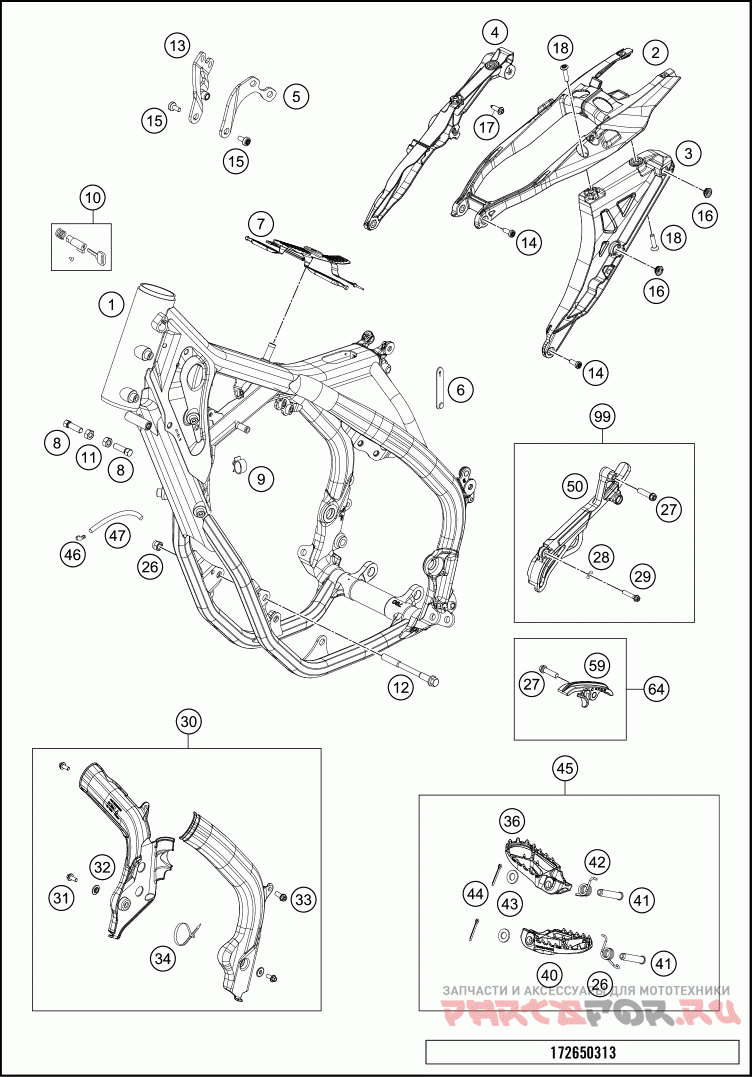

KTM 2017 FE 501 CHASSIS

KTM
#oem кодцена
5
79603013000
ENGINE BRACE LFET
6
60011093075
RUBBER CABLE TIE 75MM 03
7
79007012000
TANK REST RUBBER
8
59001037000
SPECIAL SCREW M8X26 WS=10
9
58111076000
CABLE SUPPORT KHS NR.150-47610
10
78003035000
STEERING HEAD LOCK 08
11
0934080003
HEXAGON NUT DIN0934-M 8
12
59003013000
ENGINEBRAC. SCREW M10X123 WS=13
13
79603014044
ENGINE BRACE RIGHT CPL.
14
0035080206S
AH-COLLAR SCREW M8X20 ISA45
15
0035080156S
AH-COLLAR SCREW M8X15 TORX45
16
47106003160
QUICK CONNECTOR CLUTCH
17
0017060205
SCREW FOR PLASTIC K60X20 SW6
18
0019080306S
COUNTER -SUNK SCREW ISA45 M8X30
26
54310086100
SELF LOCKING NUT M10 CU WS=14
27
0025080306
HH COLLAR SCREW M8X30 TX40
28
0125060003
WASHER DIN0125-A 6,4
29
0025060406
HH COLLAR SCREW M6X40 TX30
30
7900309400033
FRAME PROTECTION SET BLACK
31
0014050123
HH COLLAR SCREW M 5X12 WS=6
32
54803092060
BUSH F. FRAME PROTECTION 03
33
0025060126
HH COLLAR SCREW M6X12 TX30
34
44011076140
CABLE TIE 140/2,5MM BLACK
34
44011076305
CABLE TIE 300/4,8MM BLACK
36
79603040000
FOOTREST L/S EXC 2017
40
79603041000
FOOTREST R/S EXC 2017
41
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
42
79003045000
FOOTREST SPRING L/S 2016
43
0125100003
WASHER DIN0125-A10,5
44
0094032253
PIN DIN0094-3,2X25 STEEL
45
79603040033
FOOTREST -SET
47
55007016001
PVC-HOSE 7X10 PER METER
50
79403096000
SPROCKET COVER 450
59
79003053000
CHAIN SLIDER LOWER PAR T CPL.
64
79003053010
CHAIN SLIDING KIT BELOW CPL.16
99
79403096010
SPROCKET COVER KIT
