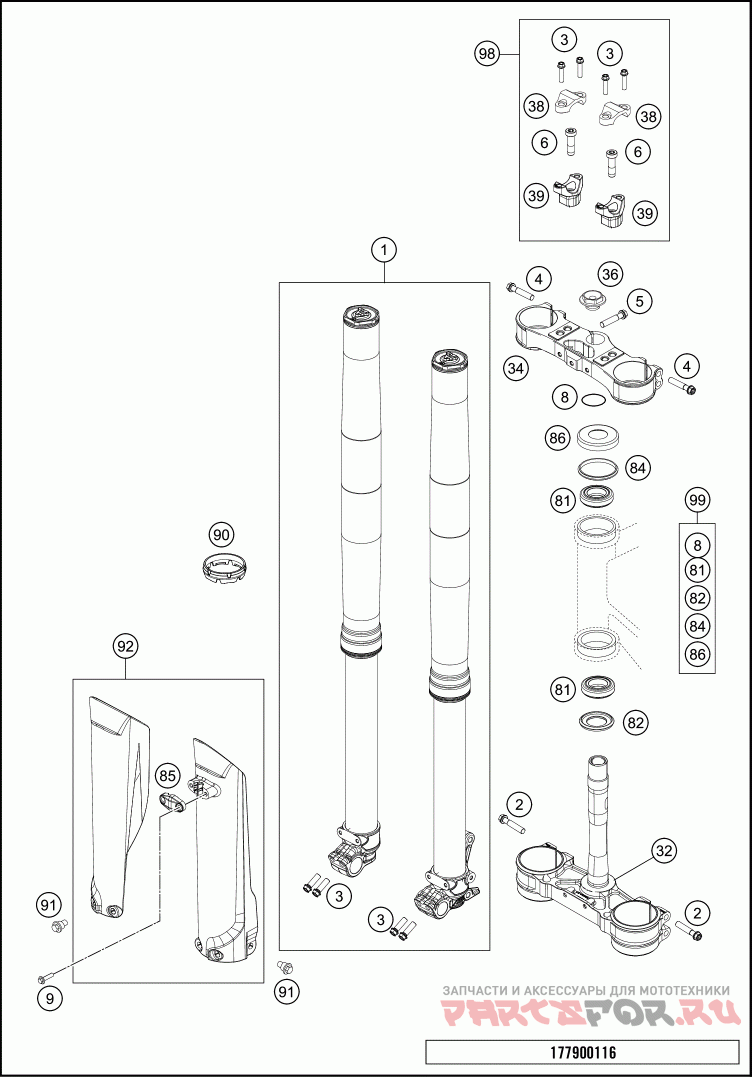

Передняя вилка

KTM 2017 450 EXC-F SIX DAYS CHASSIS

KTM
#oem кодцена
1
14158Q6901
FORK 450/500 EXC SIXDA YS 17
2
0025080506
HH COLLAR SCREW M8X50 TX40
3
0025080256
HH COLLAR SCREW M8X25 TX40
4
0025080406
HH COLLAR SCREW M8X40 TX40
5
0025080256S
HH COLLAR SCREW M8X25 TX40
6
0032100356S
AH-COLLAR SCREW M10X35 ISA45
8
0770025035
O-RING 25X3,55 NBR70 05
9
0017060206
SCREW F. PLASTIC K60X20AL SW6
32
7770113202204
BOTTOM TRIPLE CLAMP CPL ORANGE
34
7720103402204
TOP TRIPLE CLAMP X=22MM OR
36
70009082000
AXLESCRE W M20X1.5; SW17
38
77201038000
HANDLEB AR CLAMP 28MM
39
59401039032
HANDLEB .SUPP . D=28MM H=32MM 05
39
59401039037
HANDLEB .SUPP . D=28MM H=37MM 05
39
59401039042
HANDLEB .SUPP . D=28MM H=42MM 05
81
54201081100
TAPERED ROLLER BEARING CPL. 06
82
77701084000
O-RING SUPPORT W. SEALING LIP
84
54601184000
STEARING HEAD GASKET TOP
85
7770108510028
CLAMP BRAKE HOSE
86
78101086000
STEERING HEAD COVER
90
48600698
FORK PROTECTION RING 08
91
59001092050
SPECIAL SCREW M6X12,5 WS=8
92
7770109410028E
FORK PROTECTION SET SIXDA YS 17
98
00050000921
HANDLEB AR SUPPORT KIT D28/H37
99
00050000930
STEARING HEAD REP . KIT 06-15
