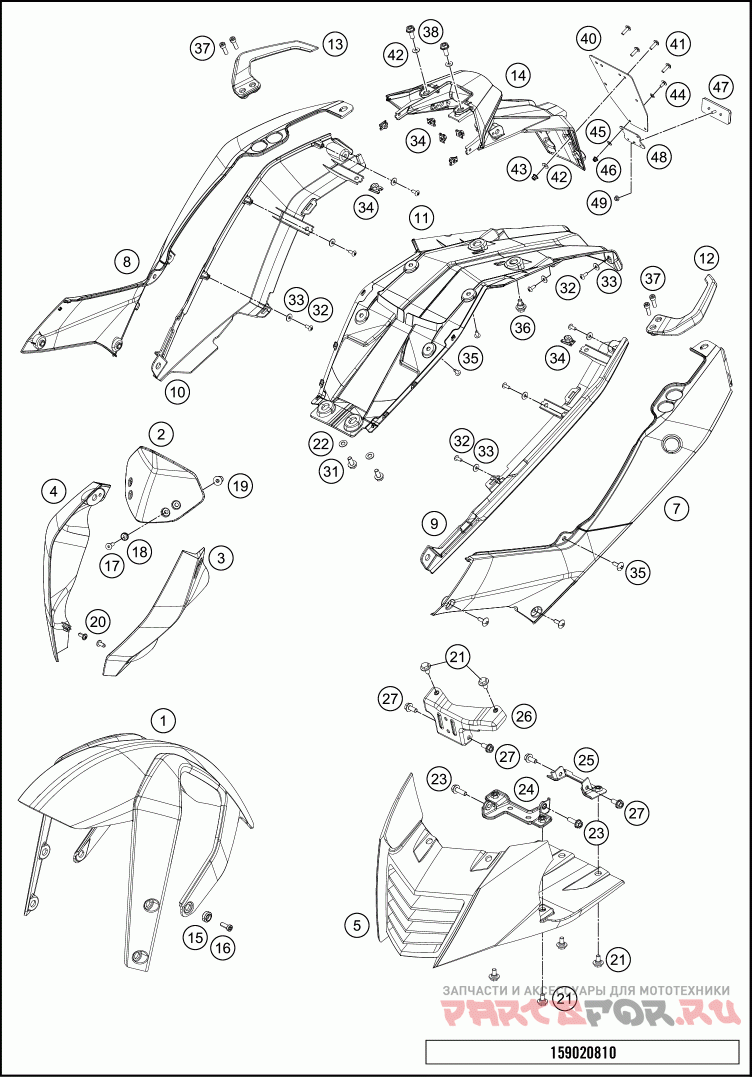

Обтекатель , крылья

KTM 2017 390 DUKE BLACK ABS CHASSIS

KTM
#oem кодцена
1
9010801000033
FRONT FENDER BLACK
2
90108008000
WIND SHIELD
3
9010800200030
MASK SPOILER L/S BLACK
4
9010800300030
MASK SPOILER R/S BLACK
5
90208020000
BELL Y PAN
7
9010804100047
SIDE COVER L/S TOP
8
9010804200047
SIDE COVER R/S TOP
9
90108043000
SIDE COVER BOTTOM L/S
10
90108044000
SIDE COVER BOTTOM R/S
12
90112008033
GRIP L/S CPL.
13
90112009033
GRIP R/S CPL.
15
90108010050
BUSHING FRONT FENDER
16
J912060163
AH SCREW M6X16
17
J019050201
AH SCREW M5X20
18
90108008050
WASHER FOR WINDSHIELD
19
90108008060
WELL NUT M5 L16
20
0081050121
SCREW FOR PLASTIC K50X12 T20
21
90108076000
SPECIAL SCREW M6X12X3
22
J125060003
PLAIN WASHER 6,5X13X1
23
J025060203
HH COLLAR SCREW M6X20 SW10
24
90208020001
BRACKET BELL Y PAN MIDDLE MTG
25
90208020003
BRACKET BELL Y PAN REAR MTG
26
90208020002
BRACKET BELL Y PAN TOP MTG
27
J025060143
HH COLLAR SCREW M6X14 SW8
31
J025060143
HH COLLAR SCREW M6X14 SW8
32
J081040121
CROSS PAN SCREW 4X12 PH
33
J021040003
WASHER 4,5X12X1MM
34
90108050001
CLIP NUT M5
35
J031050163
CHEESE-H EAD SCREW M5X16
36
90108015050
SPECIAL SCREW M6X12,5 WS8
37
J020080274
AH SCREW M8X27
38
J025060149
HH COLLAR SCREW M6X14 WS10
40
90808016000
REAR FENDER EXT.
41
90508006003
AH SCREW M6X1X20
42
90108015020
Шайба
43
90508016001
HH COLLAR NUT M6 9.1
44
J031050153
CHEESE-H EAD SCREW M5X15
45
90508015010
WASHER D=5,5
46
90102031010
HEX NUT M5 AF8
47
90514045000
Отражатель
48
90514044000
REFLECTOR MOUNTING
49
90204060001
HH COLLAR NUT
