Рама

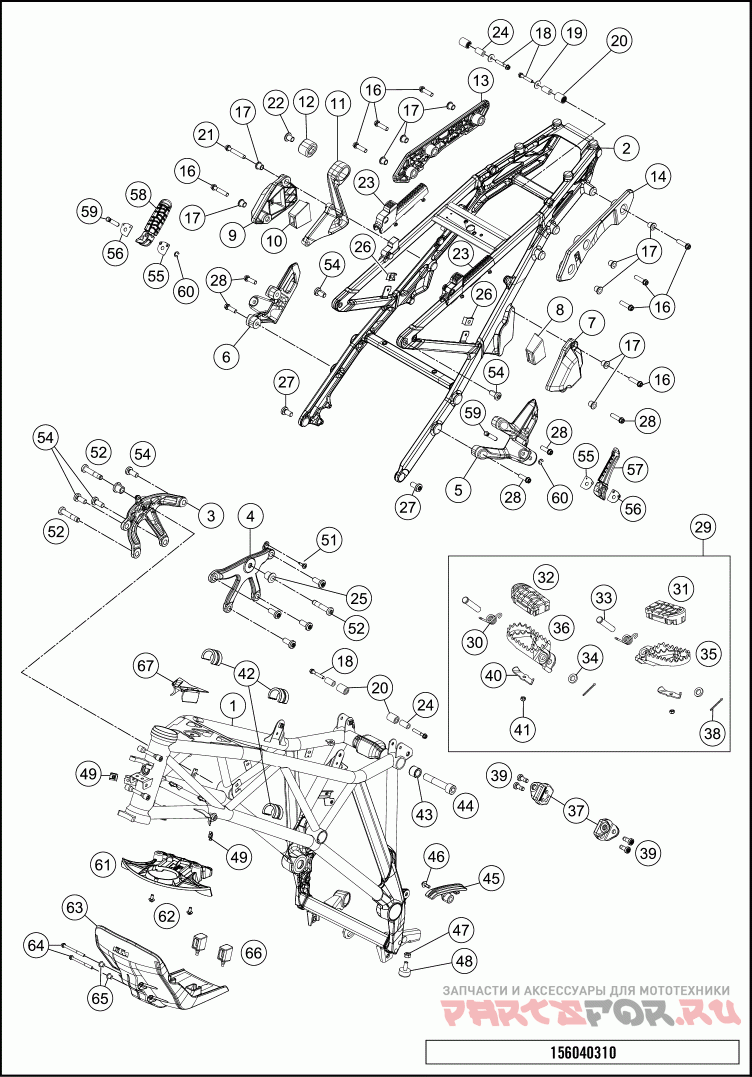

KTM 2017 1290 SUPER ADVENTURE T CHASSIS

Рама

#

oem код

название

цена

1

FRAME '604 OA'

FRAME '604 OA'

2

SUB FRAME

SUB FRAME

3

ENGINE SUPPORT R/S BLACK

ENGINE SUPPORT R/S BLACK

4

ENGINE SUPPORTL/S BLACK

ENGINE SUPPORTL/S BLACK

5

FOOTR. SUP . REAR L/S BLACK

FOOTR. SUP . REAR L/S BLACK

6

FOOTR. SUP . REAR R/S BLACK

FOOTR. SUP . REAR R/S BLACK

7

SUITCASE HOOK L/S

SUITCASE HOOK L/S

8

DAMPING RUBBER SUITCASE HOOK

DAMPING RUBBER SUITCASE HOOK

9

SUITCASE HOOK R/S

SUITCASE HOOK R/S

10

DAMPING RUBBER SUITCASE HOOK

DAMPING RUBBER SUITCASE HOOK

11

EXHAUST BRACKET

EXHAUST BRACKET

12

DAMPING RUBBER

DAMPING RUBBER

13

CASE BAR R/S

CASE BAR R/S

14

CASE BAR L/S

CASE BAR L/S

16

HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

17

SPACER BUSHING 13X17X8,2

SPACER BUSHING 13X17X8,2

18

HH COLLAR SCREW M6X35 TX30

HH COLLAR SCREW M6X35 TX30

19

WASHER DIN9021-A 6,4

WASHER DIN9021-A 6,4

20

RUBBER SEAT-CONT ACT SURF ACE

RUBBER SEAT-CONT ACT SURF ACE

21

HH COLLAR SCREW M8X50 TX40

HH COLLAR SCREW M8X50 TX40

22

Втулка

Втулка

23

PLATE RUBBER SEAT

PLATE RUBBER SEAT

24

BUSH 6.2X12X21.5

BUSH 6.2X12X21.5

25

SPACER BUSH ENGINE SUPPORT

SPACER BUSH ENGINE SUPPORT

26

RANGE CHANGE METAL NUT M6

RANGE CHANGE METAL NUT M6

27

AH-COLLAR SCREW M10X20 ISA45

AH-COLLAR SCREW M10X20 ISA45

28

SPECIAL SCREW M8X25 SS TX40

SPECIAL SCREW M8X25 SS TX40

29

FOOTPEG LS+RS CPL.

FOOTPEG LS+RS CPL.

30

FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

31

FOOTREST RUBBER FRONT L/S 03

FOOTREST RUBBER FRONT L/S 03

32

FOOTREST RUBBER FRONT R/S 03

FOOTREST RUBBER FRONT R/S 03

33

PIN FOR FOOT PED 51.5X9.8 MM

PIN FOR FOOT PED 51.5X9.8 MM

34

WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

35

FOOTREST L/S 08

FOOTREST L/S 08

36

FOOTREST R/S 08

FOOTREST R/S 08

37

FOOTREST MOUNTING

FOOTREST MOUNTING

38

PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

39

HH COLLAR SCREW M8X16 TX40

HH COLLAR SCREW M8X16 TX40

40

CLOSING PANEL FRONT L/S R/S 03

CLOSING PANEL FRONT L/S R/S 03

41

SELF LOCKING NUT DIN0985-M 5

SELF LOCKING NUT DIN0985-M 5

42

SPACER FUEL TANK 05

SPACER FUEL TANK 05

43

BUSHING MONOSHOCK SOCKET 05

BUSHING MONOSHOCK SOCKET 05

44

SCREW M14X1,5 L=73MM 03

SCREW M14X1,5 L=73MM 03

45

Направляющая цепи

Направляющая цепи

46

HH COLLAR SCREW M6X15 TX30

HH COLLAR SCREW M6X15 TX30

47

HEXAGON NUT DIN0934-M 8

HEXAGON NUT DIN0934-M 8

48

BUMP RUBBER M8X25MM

BUMP RUBBER M8X25MM

49

RANGE CHANGE METAL NUT M5

RANGE CHANGE METAL NUT M5

51

SPECIAL SCREW M5X12

SPECIAL SCREW M5X12

52

AH-COLLAR SCREW M10X50 ISA45

AH-COLLAR SCREW M10X50 ISA45

54

AH-COLLAR SCREW M10X24 ISA45

AH-COLLAR SCREW M10X24 ISA45

55

ENGAGE PANEL FOOTREST L/S 03

ENGAGE PANEL FOOTREST L/S 03

56

ENGAGE PANEL FOOTREST R/S 03

ENGAGE PANEL FOOTREST R/S 03

57

FOOTREST CPL. L/S REAR 03

FOOTREST CPL. L/S REAR 03

58

FOOTREST CPL. R/S REAR 03

FOOTREST CPL. R/S REAR 03

59

BOL T FOR FOOTREST REAR

BOL T FOR FOOTREST REAR

60

TAB WASHER DIN6799-RS 6,0

TAB WASHER DIN6799-RS 6,0

61

TRIPLECLAMP-F ACEPLA TE BELOW

TRIPLECLAMP-F ACEPLA TE BELOW

62

SCREW FOR PLASTIC K50X12 T20

SCREW FOR PLASTIC K50X12 T20

63

SKID PLATE ADV

SKID PLATE ADV

64

HH COLLAR SCREW M6X40 TX30

HH COLLAR SCREW M6X40 TX30

65

COLLAR BUSHING 6,3X8X13X9,5

COLLAR BUSHING 6,3X8X13X9,5

66

VIBRA TION DAMPER 03

VIBRA TION DAMPER 03

67

STEARING HEAD COVER

STEARING HEAD COVER
