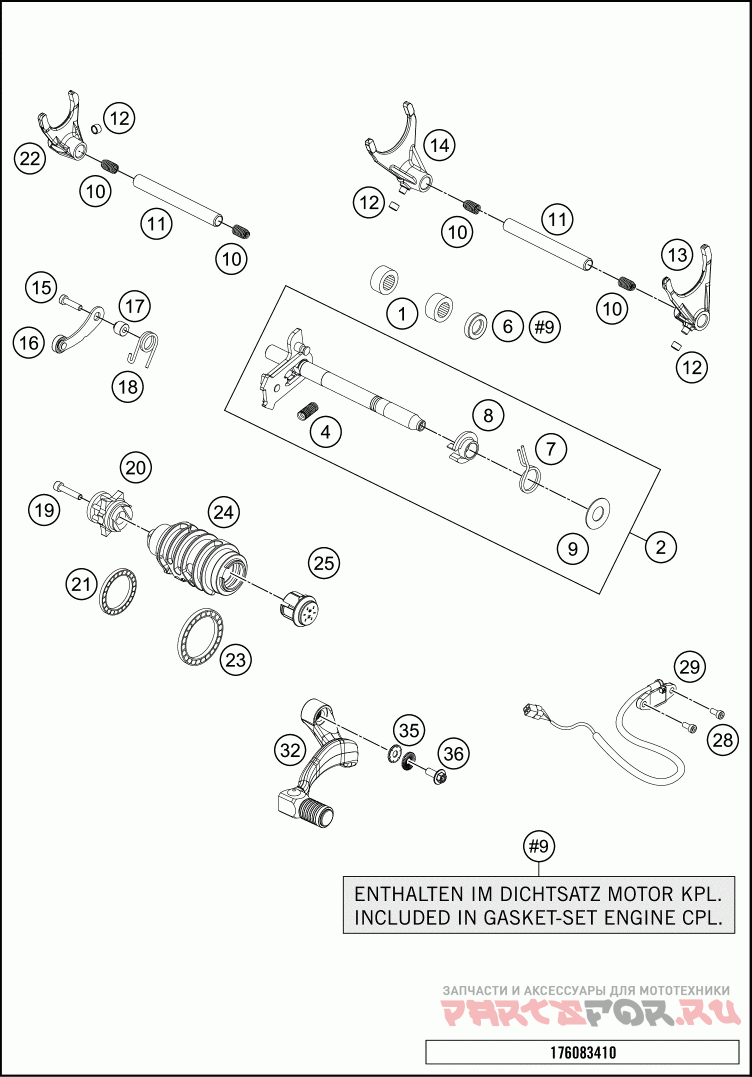

Механизм переключения

KTM 2017 1090 ADVENTURE R ENGINE

KTM
#oem кодцена
1
54632095000
NEEDLE BEAR.HK 1412 14X20X12
2
61234005333
SHIFT SHAFT CPL.
4
56534013100
TENSIONING SPRING 0,8MM
6
0760142460
SHAFT SEAL RING 14X24X6 B
10
58038023200
PRESSURE SPRING 0,9MM
11
59034020000
SHIFT RAIL 11,8X105MM
12
50334018100
SHIFTING ROLLER 6X8X5,2
13
61234002100
SHIFT FORK 2-3 GEAR
14
61234001000
SHIFTING FORK 08
15
0024060206
HH COLLAR SCREW M6X20 TX30
16
61434024000
LOCKING LEVER CPL.
17
75034052000
SLEEVE FOR LOCKING LEVER 07
18
61234023000
SPRING - LOCKING LEVER
19
0912060309
AH SCREW DIN0912-M 6X30 12.9
20
61434015000
SHIFT LOCA TING DRUM CPL.
21
0625618050
BALL BEARING 61805 C3
22
61234003200
SHIFT FORK 5-6 GEAR
23
0625068080
GROOVED BALL BEARING 6808 JRC3
24
60434012001
SHIFTING DRUM 6G
25
79234012020
MAGNET HOLDER CPL.
28
0984050143S
CYL. SCREW DIN6912 M5X14 8.8
29
60411023000
GEAR POSITION SENSOR
32
6003403104433S
SHIFTING LEVER CPL.
35
50233041500
PAIR NORDLOCK WASHER M6
36
0024060156S
HH COLLAR SCREW M6X15 TORX30
