Передняя вилка для мотоциклов KTM 150 SX CHASSIS (2017)

Москва и регионы России

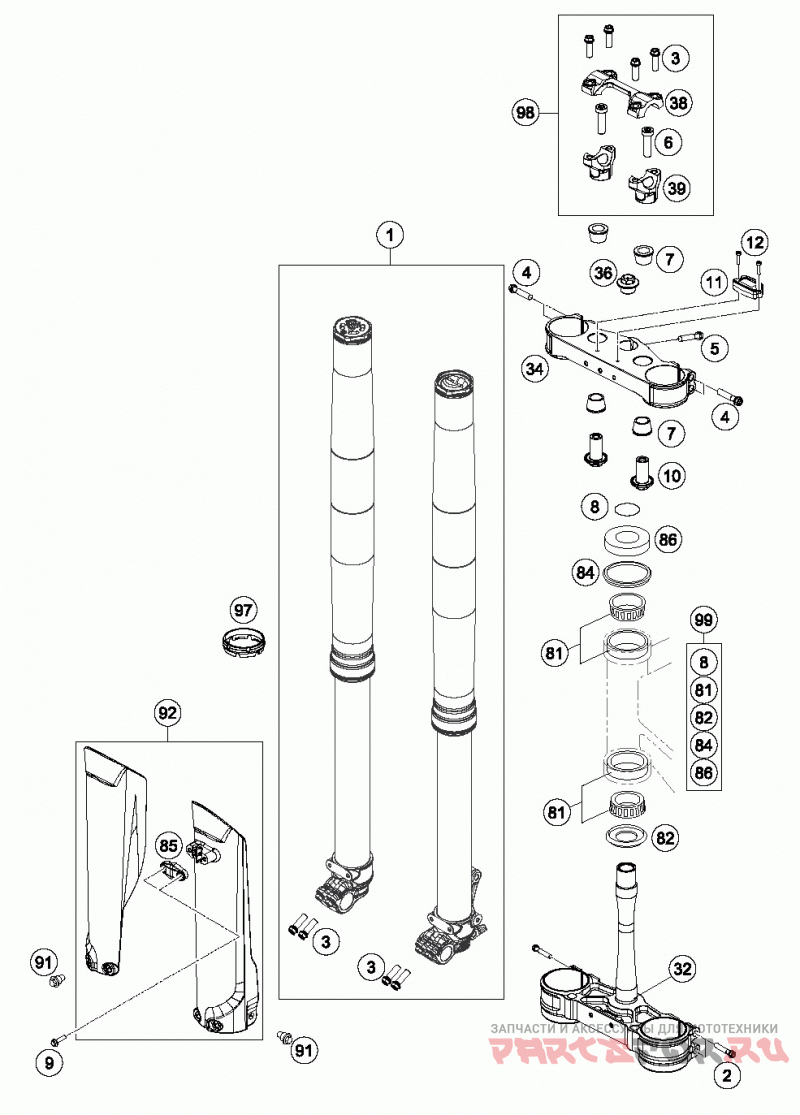

Передняя вилка

KTM 150 SX CHASSIS

Передняя вилка

#

oem код

название

цена

1*

FORK 125 SX 17

FORK 125 SX 17

2

HH collar screw M8x50 TX40

HH collar screw M8x50 TX40

3

HH collar screw M8x25

HH collar screw M8x25

4

HH COLLAR SCREW M8X40 TX40

HH COLLAR SCREW M8X40 TX40

5

HH COLLAR SCREW M8X25 WS=10

HH COLLAR SCREW M8X25 WS=10

6

AH-COLLAR SCREW M10X35 ISA45

AH-COLLAR SCREW M10X35 ISA45

7

RUBBER BUSH

RUBBER BUSH

8

O-RING 25X3,55 NBR70 05

O-RING 25X3,55 NBR70 05

9

SCREW F. PLASTIC K60X20AL SW6

SCREW F. PLASTIC K60X20AL SW6

10

HANDLEBAR SUPPORT LOWER PART

HANDLEBAR SUPPORT LOWER PART

11*

HOUR METER

HOUR METER

12*

AH SCREW DIN0912-M 4X16

AH SCREW DIN0912-M 4X16

32

LOWER TRIPLE CLAMP CPL. 16

LOWER TRIPLE CLAMP CPL. 16

34*

UPPER TRIPLE CLAMP X=22MM 2017

UPPER TRIPLE CLAMP X=22MM 2017

36

AXLESCREW M20X1.5 SW17

AXLESCREW M20X1.5 SW17

38*

HANDLEBAR CLAMP 28MM

HANDLEBAR CLAMP 28MM

39*

HANDLEBAR SUPPORT D28MM-H36MM

HANDLEBAR SUPPORT D28MM-H36MM

81

TAPERED ROLLER BEARING CPL. 06

TAPERED ROLLER BEARING CPL. 06

82

O-RING SUPPORT W. SEALING LIP

O-RING SUPPORT W. SEALING LIP

84

STEARING HEAD GASKET TOP

STEARING HEAD GASKET TOP

85*

CLAMP FOR BRAKEHOSE

CLAMP FOR BRAKEHOSE

86

STEERING HEAD COVER

STEERING HEAD COVER

91

SPECIAL SCREW M6X12,5 WS=8

SPECIAL SCREW M6X12,5 WS=8

92*

FORK PROTECTION SET

FORK PROTECTION SET

97

Fork protection ring 62,1mm

Fork protection ring 62,1mm

98

HANDLEBAR SUPPORT KIT D28/H36

HANDLEBAR SUPPORT KIT D28/H36

99

STEARING HEAD REP. KIT 06-15

STEARING HEAD REP. KIT 06-15
