  5. 2016 690 ENDURO R CHASSIS

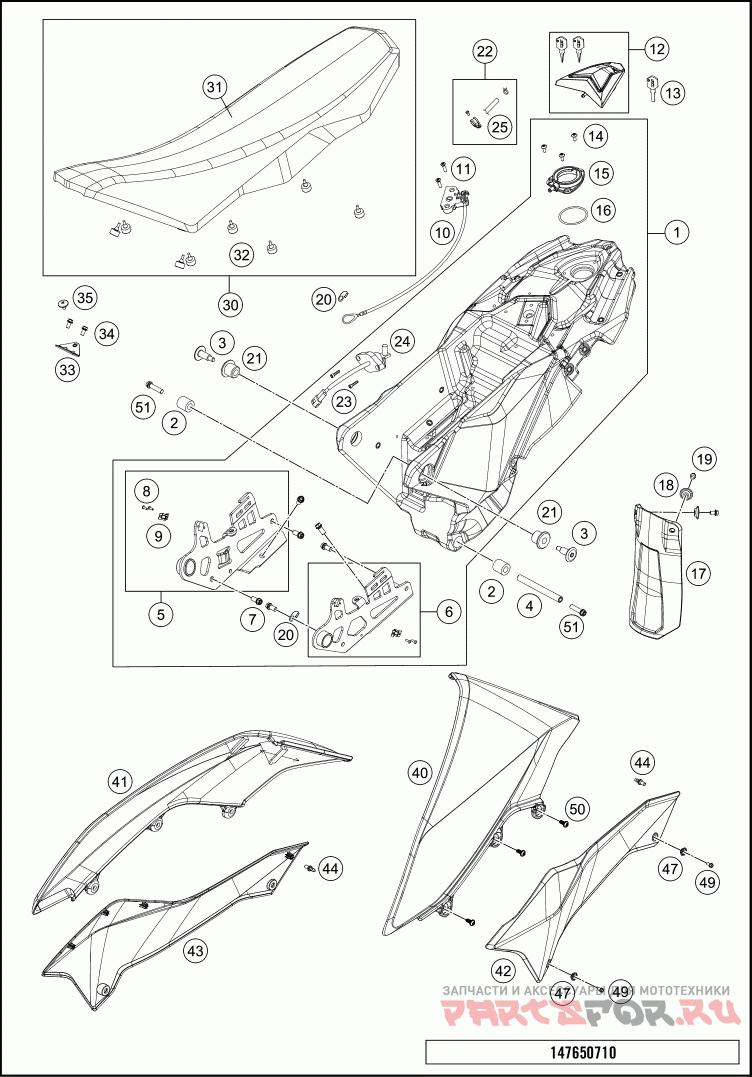

T ank, sea t , cover

KTM 2016 690 ENDURO R CHASSIS

KTM
#oem кодцена
1
7650701324433A
FUEL TANK CPL.
2
76507065100
RUBBER BUSHING 11,7X24,7 L=26
3
76507060000
BEARING BUSHING UP
4
76507061000
BEARING BUSHING DOWN
5
76507028000
TANK-RET AINING PLATE R/S 08
6
76507027100
TANK-RET AINING PLATE L/S
7
0025080166
HH COLLAR SCREW M8X16 TX40
8
54806108052
BLIND RIVET 3,3X9,7 GROOVED 04
9
54806008050
QUICK RELEASE-SPRI NG HANGER
10
76507050000
SEAT LOCK
11
0738060181
COU.SUNK SCR. AH ISO7380 M6X18
12
76507008100
TANK CAP
13
40011166100
KEY BLANK LC4/DUKE/L C8
14
78105081010
SCREW TORX M5X10
15
76507108050
CLOSING FLANGE
16
0770050030
O-RING 50,00X3,00 VITON
17
76506010100
SPLASH PROTECTOR
18
72210079000
BUCKET
19
0025060106
HH COLLAR SCREW M6X10 TX30
20
76507053000
CLAMP F. CABLE SEAT LOCK
21
76507066000
RUBB.BEAR. BOX 12x24x35 L=24,5
22
76507031044
TANK BREA T. - MODIFICA TION KIT
23
0912050163
AH SCREW DIN0912-M 5X16
24
58207080100
GAS-LEVEL SENSOR ADV . 2006
25
78015021000
HOSE EPA D=4/8 L=2000MM
30
76507140000
Седло
31
76507140050
SEAT COVER 2012
32
75007046010
SEAT RUBBER 10 MM
33
76507048000
BRACKET F. SEAT
34
0023060123
COLLAR SCREW M6X12 TX
35
58407011100
SCREW FOR SEAT M6X11,5/8
40
7650815010030
SPOILER L/S BLACK
41
7650815110030
SPOILER R/S BLACK
42
7650814100028B
SIDE COVER L/S WHITE 14 WITH DECAL
43
7650814200028B
SIDE COVER R/S 14 WITH DECAL
44
54806008051
QUICK RELEASE-NIP PLE 03
47
76508043150
COLLAR BUSHING
49
0025060166
HH COLLAR SCREW M6X16 TX30
50
0081050121
SCREW FOR PLASTIC K50X12 T20
51
0025080306S
HH COLLAR SCREW M8X30 TX40
