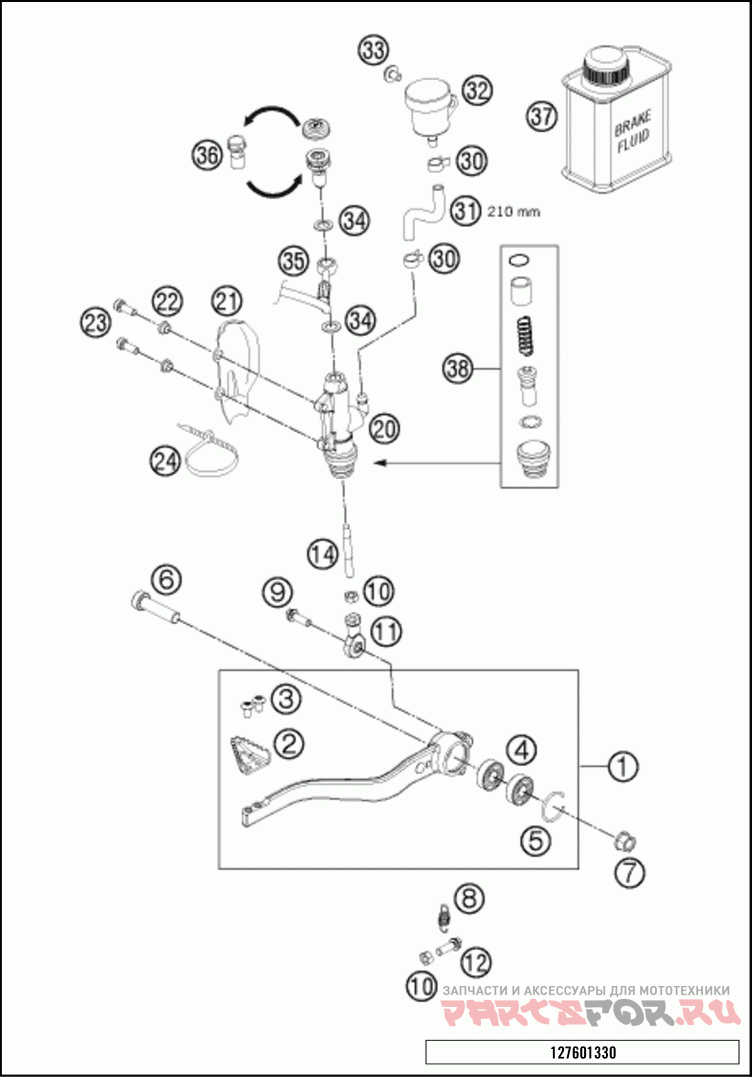

Тормозной цилиндр задний

KTM 2016 690 DUKE ORANGE CHASSIS

KTM
#oem кодцена
1
7501305004401
FOOT BRAKE LEVER CPL. 07
2
60013051000
STEP PLATE FOOT BRAKE LEVER 03
3
58605083010
% SCREW TORX M5X10 05
4
0625060002
BALL BEARING SKF 6000-2RS1
5
0993026500
LOCK RING DIN7993-B26
6
0032100406S
AH-COLLAR SCREW M10X40 ISA45
7
54630044000
COLLAR NUT M10 WS=13
8
61013052000
SPRING FOOT BRAKE LEVER 05
9
0025060206S
HH COLLAR SCREW M6X20 TX30
10
0934060003
HEXAGON NUT DIN0934-M 6
11
54603069000
SWIVEL HEAD M6 FOOT BRAKE LEV.
12
59009062026
SPECIAL SCREW M6X26 SW=8 10.9
21
54513038000
BRAKE CYL. PROTECTOR
22
50213161000
COLLAR BUSHING
23
0025060206S
HH COLLAR SCREW M6X20 TX30
24
44011076200
CABLE TIE 200/3,6MM BLACK
30
58007017000
YDNAC CLAMP 10101 (10,4MM)
31
69013069001
HOSE FOR RESERVOIR 6X1,5
33
0024060106
HH COLLAR SCREW M6X10 TX30
34
0603100141
COPPER GASKET DIN7603-10X14X1
35
76042003000
BRAKE PIPE
36
62113020100
HOLL. SCREW M10X1X19.5
37
00062030000
BRAKE FLUID DOT5.1 0,25L
38
54513150000
REPAIR KIT PISTON 13MM
