Рама для мотоциклов KTM 2016 65 SX CHASSIS (2016)

Москва и регионы России

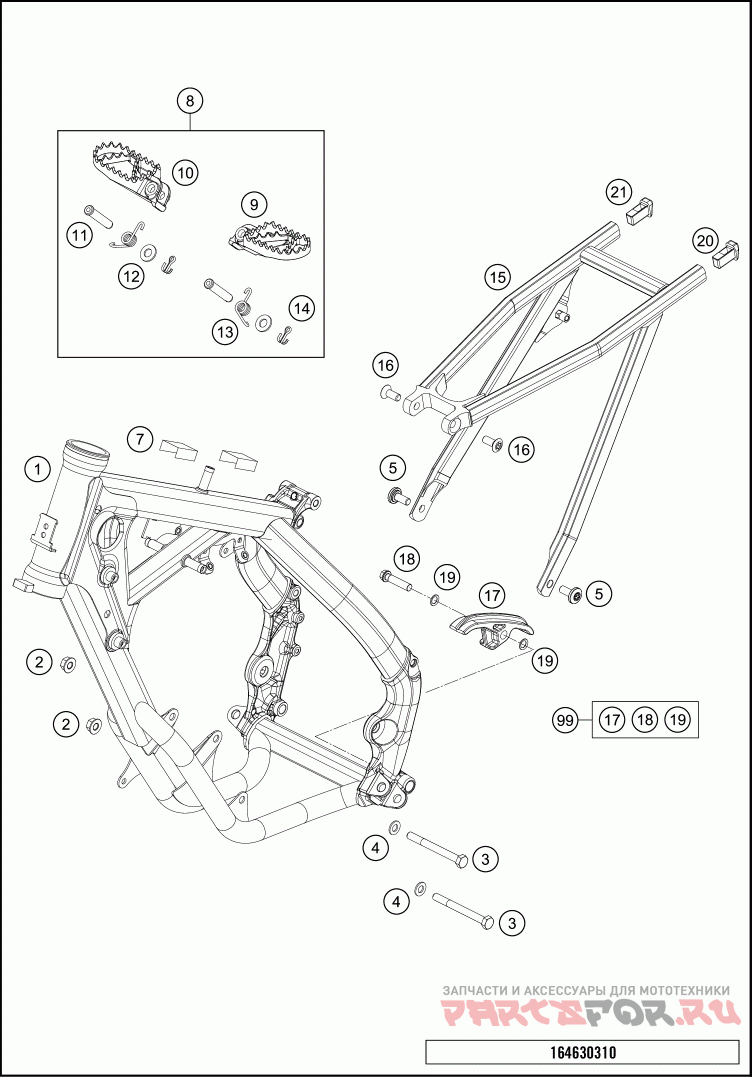

Рама

KTM 2016 65 SX CHASSIS

Рама

#

oem код

название

цена

1*

Рама

Рама

2

HEXAGON NUT DIN EN1661 M8 SW13

HEXAGON NUT DIN EN1661 M8 SW13

3

HH SCREW DIN931 M8X80 SS

HH SCREW DIN931 M8X80 SS

4

WASHER DIN0125-A 8,4

WASHER DIN0125-A 8,4

5*

SPECIAL SCREW M8X18 TORX45 SS

SPECIAL SCREW M8X18 TORX45 SS

7

ADH. FOIL TRANSP . 80X80 MM 04

ADH. FOIL TRANSP . 80X80 MM 04

8

FOOTREST CPL. 14

FOOTREST CPL. 14

9

FOOTREST L/S

FOOTREST L/S

10

FOOTREST R/S

FOOTREST R/S

11

PIN FOR FOOT PED 51.5X9.8 MM

PIN FOR FOOT PED 51.5X9.8 MM

12

WASHER DIN0125-A10,5

WASHER DIN0125-A10,5

13

FOOTREST SPRING L/S & R/S

FOOTREST SPRING L/S & R/S

14

PIN DIN0094-3,2X25 STEEL

PIN DIN0094-3,2X25 STEEL

15*

SUBFRAME 65SX 2016

SUBFRAME 65SX 2016

16

FLAT HEAD SCREW M. ISA45 M8X20

FLAT HEAD SCREW M. ISA45 M8X20

17

CHAIN SLIDING PIECE BELOW 07

CHAIN SLIDING PIECE BELOW 07

18

HH COLLAR SCREW M8X35 TX40

HH COLLAR SCREW M8X35 TX40

19

Стопорная шайба 8 мм

Стопорная шайба 8 мм

20*

SUB FRAME APPLICA TION LEFT

SUB FRAME APPLICA TION LEFT

21*

SUB FRAME APPLICA TION RIGHT

SUB FRAME APPLICA TION RIGHT

99

CHAIN SLIDING KIT BELOW 09-15

CHAIN SLIDING KIT BELOW 09-15
