Тормозной цилиндр задний для мотоциклов KTM 2016 500 EXC SIXDAYS CHASSIS (2016)

Москва и регионы России

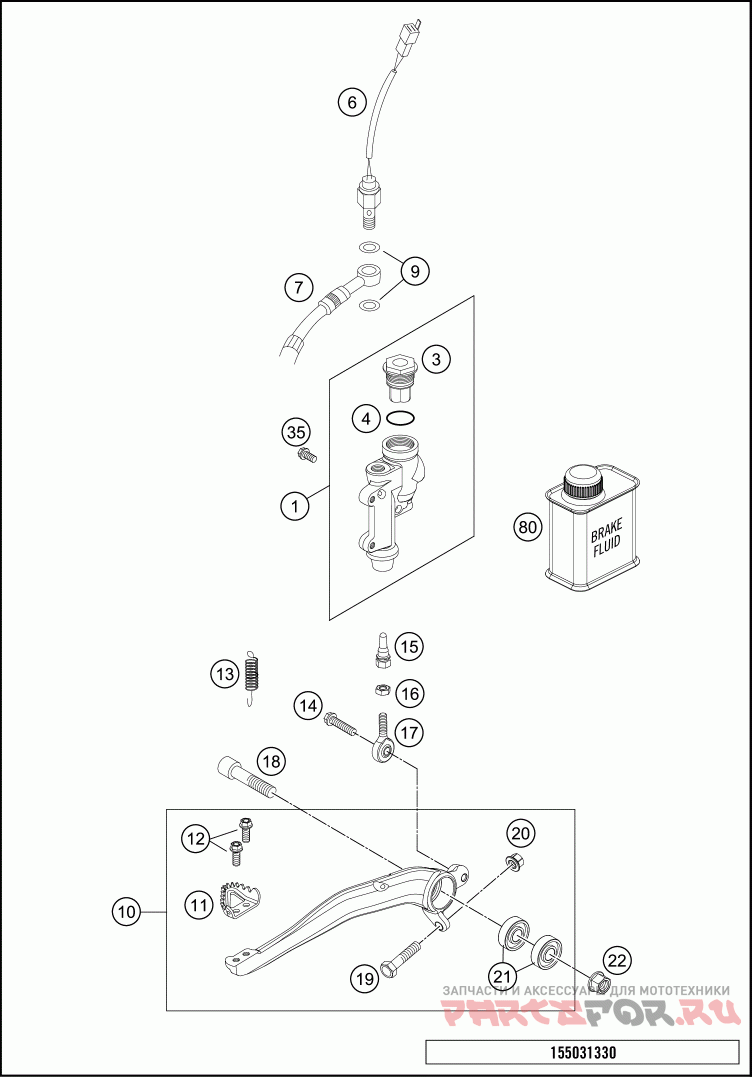

Тормозной цилиндр задний

KTM 2016 500 EXC SIXDAYS CHASSIS

Тормозной цилиндр задний

#

oem код

название

цена

1

REAR BRAKE CYLINDER CPL.SX 09

REAR BRAKE CYLINDER CPL.SX 09

3

REAR BRAKE CYL. COVER CPL. 04

REAR BRAKE CYL. COVER CPL. 04

4

FOOT -BRAKE CYL. GASKET SX 03

FOOT -BRAKE CYL. GASKET SX 03

7

BRAKE HOSE REAR 655MM 15

BRAKE HOSE REAR 655MM 15

9

COPPER GASKET DIN7603-10X14X1

COPPER GASKET DIN7603-10X14X1

10

FOOT BRAKE LEVER CPL.

FOOT BRAKE LEVER CPL.

11

STEP PLATE FOR BRAKE LEVER

STEP PLATE FOR BRAKE LEVER

12

HH COLLAR SCREW M5X12 TX30

HH COLLAR SCREW M5X12 TX30

13*

RETURN SPRING FOR BRAKE LEVER

RETURN SPRING FOR BRAKE LEVER

14

HH COLLAR SCREW M6X20 TX30

HH COLLAR SCREW M6X20 TX30

15

PUSH ROD L=28MM 03

PUSH ROD L=28MM 03

16

SELF LOCK. NUT DIN0985-M 6

SELF LOCK. NUT DIN0985-M 6

17

SWIVEL HEAD KA6 03

SWIVEL HEAD KA6 03

18

AH-COLLAR SCREW M10X40 ISA45

AH-COLLAR SCREW M10X40 ISA45

19

SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

20

COLLAR NUT M8 WS=10

COLLAR NUT M8 WS=10

21

BALL BEARING SKF 6000-2RS1

BALL BEARING SKF 6000-2RS1

22

COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

35

HH COLLAR SCREW M6X12 TX30

HH COLLAR SCREW M6X12 TX30

80

BRAKE FLUID DOT5.1 0,25L

BRAKE FLUID DOT5.1 0,25L
