Амортизатор в разборе для мотоциклов KTM 2016 450 SX-F CHASSIS (2016)

Москва и регионы России

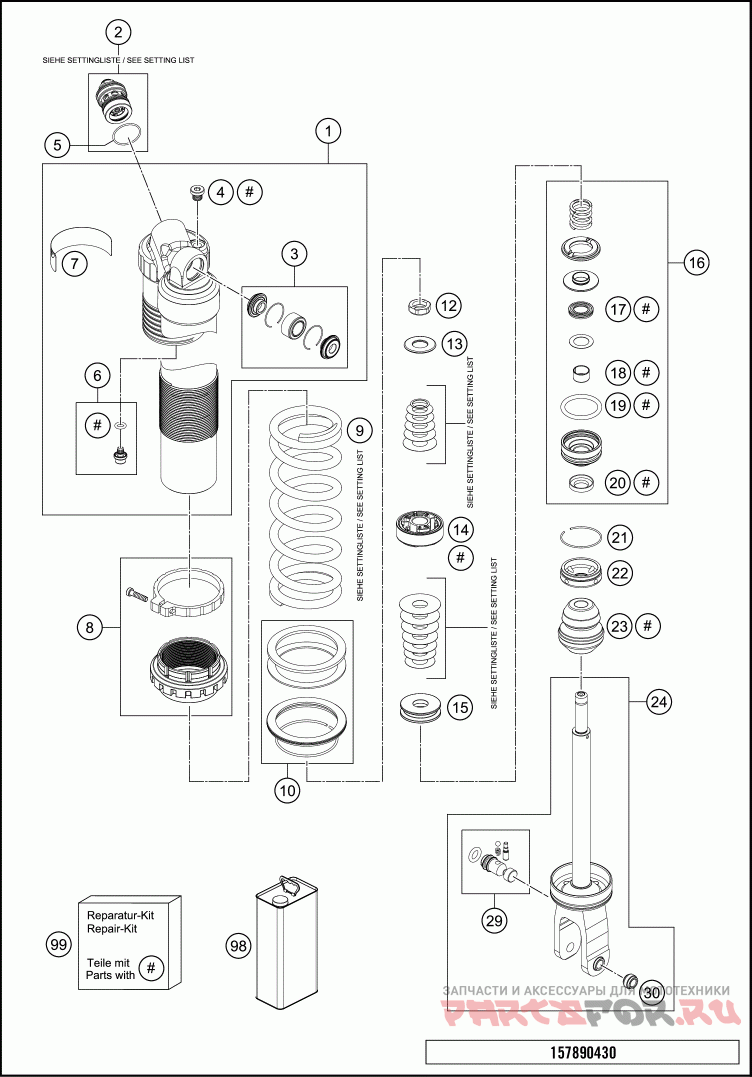

Амортизатор в разборе

KTM 2016 450 SX-F CHASSIS

Амортизатор в разборе

#

oem код

название

цена

1*

MONOSOCK UPPER PAR T CPL.

MONOSOCK UPPER PAR T CPL.

2*

DCC-COMPR .DAMP .CONTROL LINK 16

DCC-COMPR .DAMP .CONTROL LINK 16

2*

DCC-COMPR .DAMP .CONTROL LINK 16

DCC-COMPR .DAMP .CONTROL LINK 16

2*

DCC-COMPR .DAMP .CONTROL LINK 16

DCC-COMPR .DAMP .CONTROL LINK 16

3*

REP .KIT BEAR./SEAL KGW 1525 HD

REP .KIT BEAR./SEAL KGW 1525 HD

4

BLEED PLUG R 1/8

BLEED PLUG R 1/8

5*

O-RING 25X1,5 VITON

O-RING 25X1,5 VITON

6*

PLUG SCREW M5X6 CPL.

PLUG SCREW M5X6 CPL.

7*

STICKER WP WARNING

STICKER WP WARNING

8*

SPRING ADJUSTER PLASTIC CPL.

SPRING ADJUSTER PLASTIC CPL.

9*

SPRING 247 42 N/MM

SPRING 247 42 N/MM

9*

SPRING 247 45 N/MM

SPRING 247 45 N/MM

9*

SPRING 247 48 N/MM

SPRING 247 48 N/MM

9*

SPRING 252 51 N/MM

SPRING 252 51 N/MM

10*

SPRING PLATE SET

SPRING PLATE SET

11

CIRCLIP 58,2X2

CIRCLIP 58,2X2

12*

PISTON ROD NUT M12X1

PISTON ROD NUT M12X1

13*

REBOUND DISC 12X34 T2 H0

REBOUND DISC 12X34 T2 H0

14*

PISTON ID12

PISTON ID12

15*

REBOUND DISC 12X43 H8

REBOUND DISC 12X43 H8

16

ADAPTER D50 H28 CPL.

ADAPTER D50 H28 CPL.

17

SEAL D18X30X5 08

SEAL D18X30X5 08

18

DU-BUSH 18X20X12

DU-BUSH 18X20X12

19

O-RING 41X5

O-RING 41X5

20

DUST SEAL 1828 08

DUST SEAL 1828 08

21

CIRCLIP 53X1,75

CIRCLIP 53X1,75

22

RESERVOIR CAP D=50 H=10 09

RESERVOIR CAP D=50 H=10 09

23*

BUMP RUBBER 57X18 H46

BUMP RUBBER 57X18 H46

24*

MONOSHOCK BOTTOM PAR T CPL.

MONOSHOCK BOTTOM PAR T CPL.

29*

ADJUSTING SCREW M8X0,5 CPL.

ADJUSTING SCREW M8X0,5 CPL.

30

ADAPTOR -BUSH M10x1,50, D=15

ADAPTOR -BUSH M10x1,50, D=15

98

SHOCK ABSORBER FLUID 5 LT

SHOCK ABSORBER FLUID 5 LT

99

REP . KIT 5018 LINK 2016 US/HQV

REP . KIT 5018 LINK 2016 US/HQV
