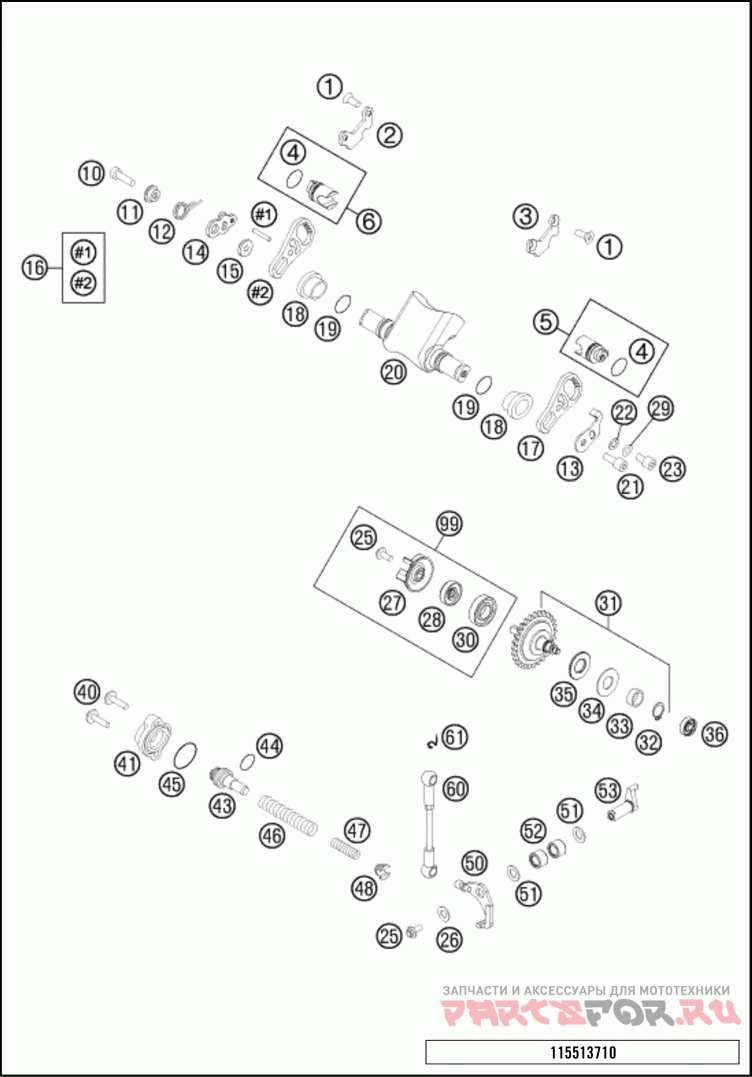

Глушитель

KTM 2016 300 XC-W ENGINE

KTM
#oem кодцена
1
0019050106S
INT . TORX FLAT HEAD M5X10 10.9
2
54837362000
RET AINING PLATE 300 R/S 08
3
54837363000
RET AINING PLATE 300 L/S 08
4
0770160021
O-RING 16,00X2,00 VITON
5
54837361044
CONTROL VALVE 300 L/S CPL. 08
6
54837361144
CONTROL VALVE 300 R/S CPL. 08
10
0912060203
AH SCREW DIN0912-M 6X20
11
54637067000
SPRING SLEEVE
12
54637066000
OVERLOA D SPRING
14
54637065000
CONTROL LEVER WITH BALL TYPE
15
54637068100
BUSHING SLEEVE
16
54837364044
GEAR SEGMENT RIGHT CPL. 08
17
54837364050
GEAR SEGMENT 300 L/S 08
19
0770150151
O-RING 15,00X1,50 VITON
20
54837320100
CONTROL FLAP 300 08
21
0912060163
AH SCREW DIN0912-M 6X16
22
54637056100
WASHER 6,5X11X2
23
0912060083
AH SCREW DIN0912-M 6X 8
25
0014050123
HH COLLAR SCREW M 5X12 WS=6
26
0349000050
WASHER DIN7349-5X15 X2
27
54835005000
WATER PUMP WHEEL 07
28
0760082472
SHAFT SEAL RING 8X24X7 A DUO
29
0137060003
SPRING WASHER DIN0137-B 6
30
0625160020
BALL BEARING 16002 C3
31
54837050044
CENTRIFUGA L TIMER CPL. 250/300
32
0471120010
CIRCLIP DIN0471-12X1
33
54837054000
DIST ANCE BUSH. CENTRIFUG.TIM ER
34
54637071010
AXIAL WASHER AS1226
35
54637097200
AXIAL NEEDLE BEARING AXK 1226
36
54637098100
BALL BEARING 626LLBC3/5K
40
0014050203
HH COLLAR SCREW M 5X20 WS=6
43
54837075000
SPRING GUIDE 250/300
44
0770021120
O-RING 12,37X2,62 NBR70
45
0770240020
O-RING 24,00X2,00 NBR70
46
54837069000
ADJUST . SPRING 2003
47
54637072300
AUXILIARY SPRING MID., YELLOW
47
54837072000
AUXILIARY SPRING SOFT , RED
47
54837072100
AUXILIARY SPRING HARD, GREEN
48
54637071200
SPRING INSERT
51
0988101610
SHIM WASHER DIN988 10X16X1
52
0618101410
NEEDLE SLEEVE HK 1010
53
54837057000
CONTROL LEVER 03
60
54637095444
CONNECT ING ROD CPL.
61
50237195055
SECURING DIN-71805-S -8
99
54835055110
WATER PUMP REP . KIT SX 07-14
