Передняя вилка

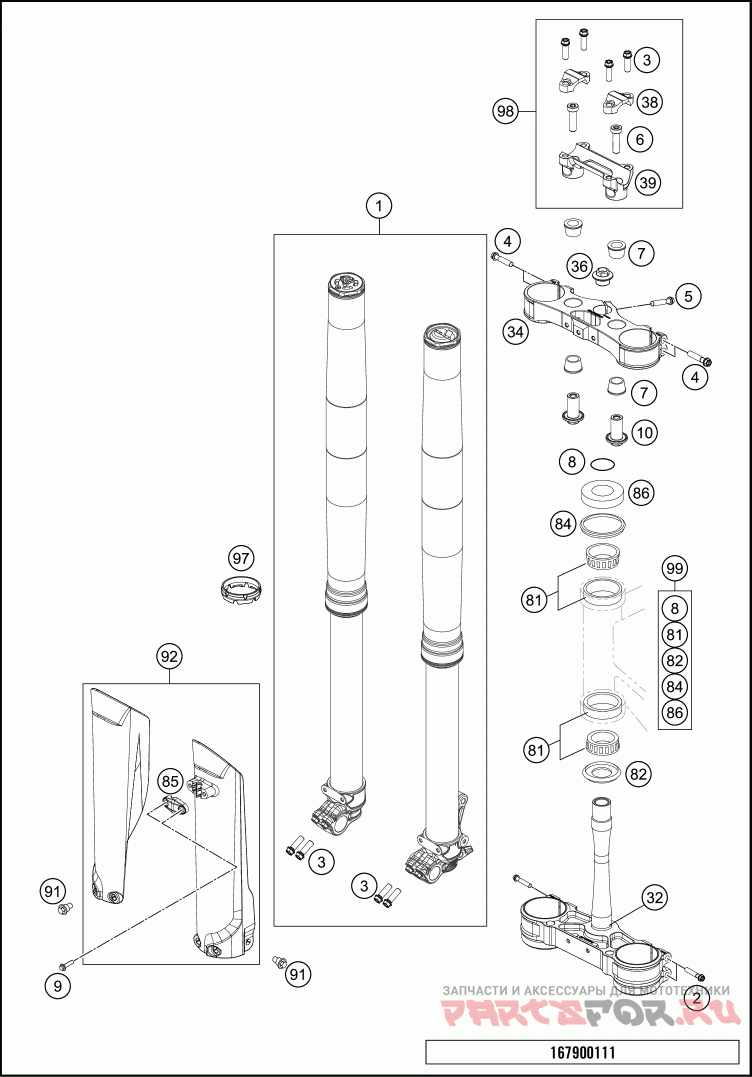

KTM 2016 250 SX-F FACTORY EDITION CHASSIS

KTM
#oem кодцена
1*
34188P0501
FORK 250 SX-F 2016
2
0025080506
HH COLLAR SCREW M8X50 TX40
3
0025080256
HH COLLAR SCREW M8X25 TX40
4
0025080406
HH COLLAR SCREW M8X40 TX40
5
0015080256S
% HH COLLAR SCREW M8X25 WS=10
6
0032100356S
AH-COLLAR SCREW M10X35 ISA45
7
83001040000
RUBBER BUSH
8
0770025035
O-RING 25X3,55 NBR70 05
9
0017060206
SCREW F. PLASTIC K60X20AL SW6
10
79001037034
HANDLEB AR SUPPORT LOWER PAR T
32
7900103202204
LOWER TRIPLE CLAMP CPL. 16
34
7900103402204
UPPER TRIPLE CLAMP X=22MM 2016
36
70009082000
AXLESCRE W M20X1.5; SW17
38
77201038000
HANDLEB AR CLAMP 28MM
39
79001139036
HANDLEB AR SUPPORT D28MM-H36MM
81
54201081100
TAPERED ROLLER BEARING CPL. 06
82
77701084000
O-RING SUPPORT W. SEALING LIP
84
54601184000
STEARING HEAD GASKET TOP
85*
77701085000EB
CLAMP BRAKE LINE
86
78101086000
STEERING HEAD COVER
91
59001092050
SPECIAL SCREW M6X12,5 WS=8
97
48600698
FORK PROTECTION RING 08
98
00050000929
HANDLEB AR SUPPORT KIT D28/H36
99
00050000930
STEARING HEAD REP . KIT 06-15
