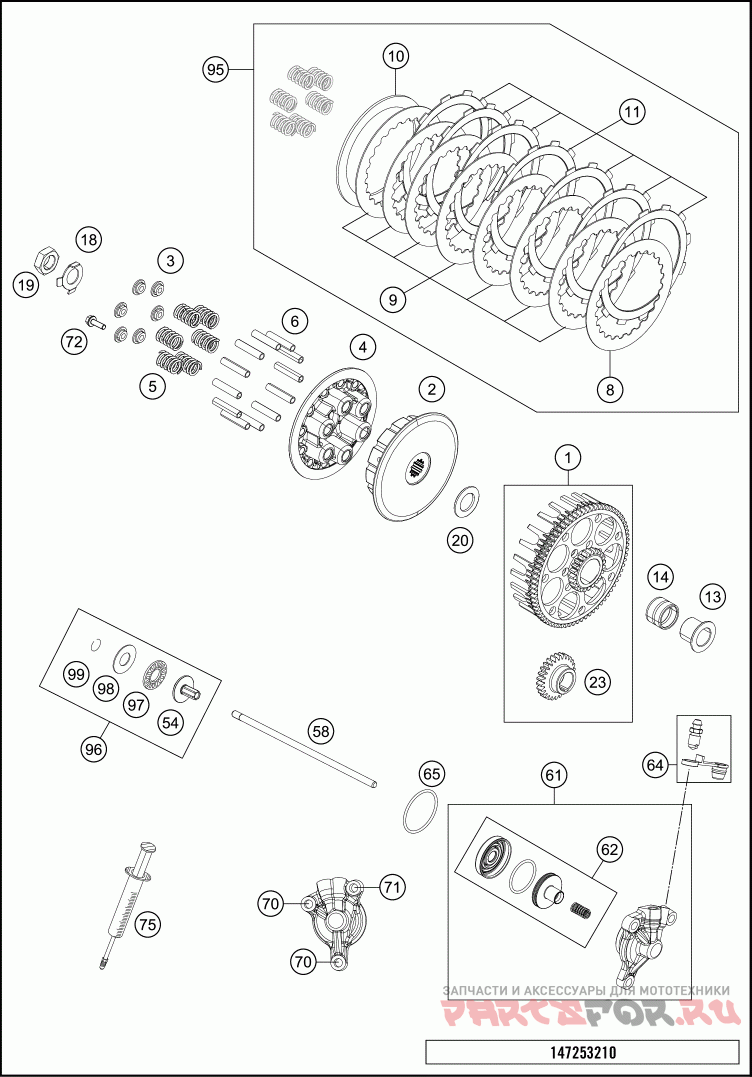

Сцепление

KTM 2016 250 FREERIDE ENGINE

Сцепление

#

oem код

название

цена

1

CLUTCH CAGE INCL. PRIM. WHEEL

CLUTCH CAGE INCL. PRIM. WHEEL

3

SPRING RET AINER 6,2X12X18X5,2

SPRING RET AINER 6,2X12X18X5,2

4

PRESSURE PLATE

PRESSURE PLATE

5

Пружинка

Пружинка

6

DRIVING SLEEVE D=7,95 L=38

DRIVING SLEEVE D=7,95 L=38

8

INTERMEDIA TE DISC 1MM 2002

INTERMEDIA TE DISC 1MM 2002

9

INTERMEDIA TE DISC 1,4MM 2002

INTERMEDIA TE DISC 1,4MM 2002

10

ALU DISC 3MM

ALU DISC 3MM

11

LINING DISC 1,95 MM

LINING DISC 1,95 MM

13

INNER RING 21.65X26X24.5

INNER RING 21.65X26X24.5

14

NEEDLE BEARING K26X30X22ZW.KSE

NEEDLE BEARING K26X30X22ZW.KSE

18

TAB WASHER

TAB WASHER

19

HEXAGON NUT DIN0936-M18X1 ,5 R.

HEXAGON NUT DIN0936-M18X1 ,5 R.

20

WASHER 21.7 X 37 X 2.5

WASHER 21.7 X 37 X 2.5

23

PRIMARY GEAR 26T 2003

PRIMARY GEAR 26T 2003

54

PRESSURE PLATE 85 SX 2003

PRESSURE PLATE 85 SX 2003

58

PUSH ROD

PUSH ROD

61

OUTPUT CYLINDER CPL.

OUTPUT CYLINDER CPL.

62

PISTON CPL.

PISTON CPL.

65

O-RING 31,47X1,78

O-RING 31,47X1,78

70

HH COLLAR SCREW M6X16 TX30

HH COLLAR SCREW M6X16 TX30

71

HH COLLAR SCREW M6X30 TX30

HH COLLAR SCREW M6X30 TX30

72

HH COLLAR SCREW M6X25 TX30

HH COLLAR SCREW M6X25 TX30

75

VENT INJEKTION HYDR. CLUTCH

VENT INJEKTION HYDR. CLUTCH

95

CLUTCH KIT 250 FREERIDE

CLUTCH KIT 250 FREERIDE

96

PRESSURE PIECE CPL. 08

PRESSURE PIECE CPL. 08

97

AXIAL NEEDLE BEARING AXK 1226

AXIAL NEEDLE BEARING AXK 1226

98

AXIAL WASHER AS1226 12X26X1

AXIAL WASHER AS1226 12X26X1

99

CIRCLIP DIN7993-RW12

CIRCLIP DIN7993-RW12
