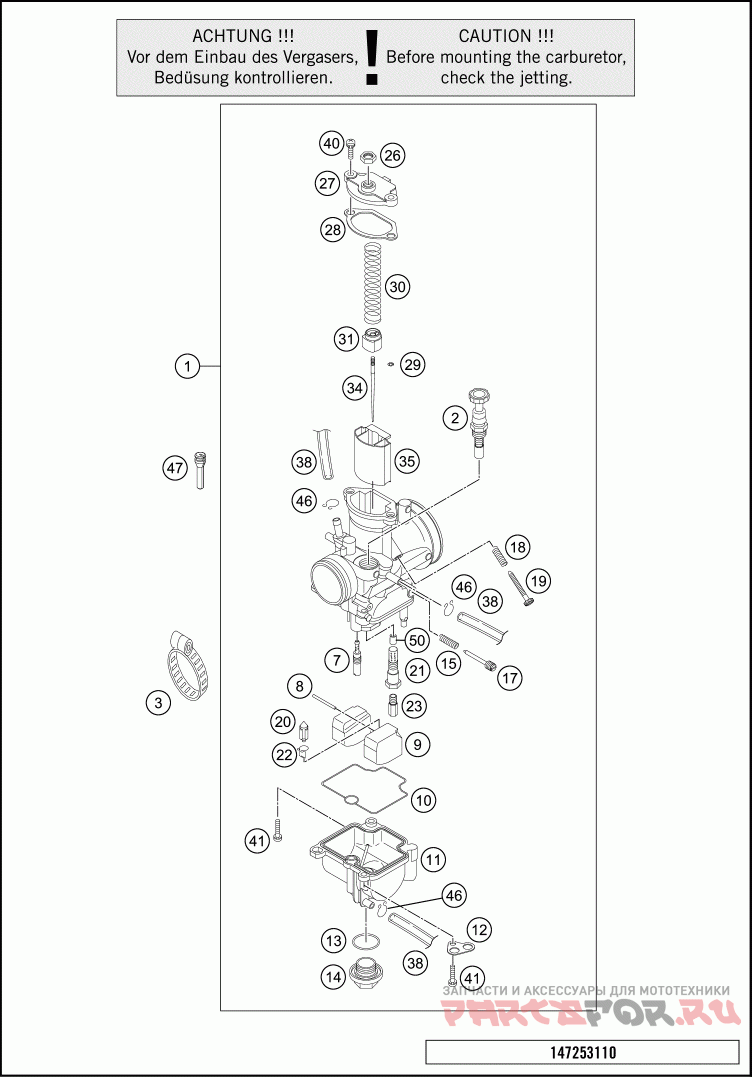

Карбюратор

KTM 2016 250 FREERIDE ENGINE

KTM
#oem кодцена
1
72531001044
CARBURET OR KEIH. PWK28
2
54631245000
STARTER PISTON CPL.
3
72530061000
CLAMP 45/12 GEMI
7
54531607040
IDLE JET 40 KEIHIN
7
54531607042
IDLE JET 42 KEIHIN
7
54531607045
IDLE JET 45 KEIHIN
7
54531607048
IDLE JET 48 KEIHIN
7
54531607050
IDLE JET 50 KEIHIN
8
57331008000
ARM PIN FLOA T
9
47031009000
FLOA T CPL. PWK28 03
10
47031010000
FLOA T CHAMBER GASKET
11
72531011000
FLOA T CHAMBER BODY 14
12
54531612100
RET AINING PLATE FOR BLEEDER
13
0770180230
O-RING 18,00X2,30 NBR 70
14
54531699000
PLUG M 18X1
15
54531615000
SPRING FOR ADJUSTMENT SCREW
17
54531617000
ADJUSTME NT SCREW
18
54631118000
Пружина
19
54631219100
ADJUSTME NT SCREW M 5
20
47031020000
FLOA T NEEDLE CPL.
21
72531022000
NEEDLE JET HOLDER 14
22
54531621000
Зажим
23
54531623110
MAIN JET 110 KEIHIN
23
54531623115
MAIN JET 115 KEIHIN
23
54531623118
MAIN JET 118 KEIHIN
23
54531623120
MAIN JET 120 KEIHIN
23
54531623122
MAIN JET 122 KEIHIN
23
54531623125
MAIN JET 125 KEIHIN
23
54531623128
MAIN JET 128 KEIHIN
23
54531623130
MAIN JET 130 KEIHIN
26
52031126000
HEXAGON NUT M 6X0,75 DIN0439
27
47031027000
CARBURET OR COVER PWK28 03
28
47031028000
CARBURET OR COVER GASKET PWK28
29
54531629000
CLIP FOR JET NEEDLE
30
47031030000
THROTTLE VALVE SPRING
31
47031031000
SPRING CAP
34
72531034000
JET NEEDLE KEIHIN JJK
34
72531034100
JET NEEDLE KEIHIN JJJ
34
72531034200
JET NEEDLE KEIHIN JJH
34
72531034300
JET NEEDLE KEIHIN JJG
34
72531034400
JET NEEDLE KEIHIN JJF
34
72531034500
JET NEEDLE KEIHIN JJE
35
47031035000
THROTTLE VALVE 3,5
38
31007007101
PVC-HOSE 4X6MM
40
0016040133
% HH COLLAR SCREW M 4X16 WS=6
41
0985040163
FLAT HEAD SCREW DIN7985-M 4X16
46
54531696000
CLAMP 6 MM
47
72531029015
SLIDE STOP FREERIDE 250
50
72531021000
NEEDLE JET 14
