Рама

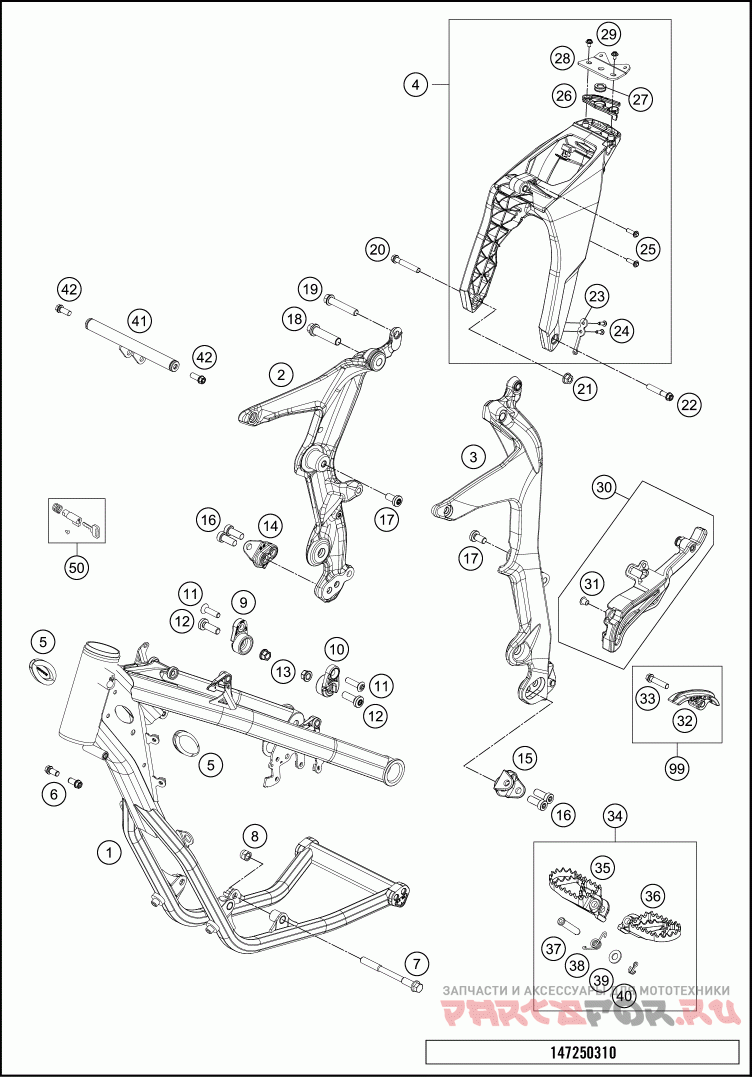

KTM 2016 250 FREERIDE CHASSIS

KTM
#oem кодцена
1
7250300100004
Рама
2
70003001152
CONNECT ION BRACKET R/S 14
3
70003101051
CONNECT ION BRACKET L. VMT
4
70003002033
SUBFRAME CPL.
5
58404041000
CLOSING COVER SWINGARM SM 03
6
0025080166S
HH COLLAR SCREW M8X16 TX40
7
59003013000
ENGINEBRAC. SCREW M10X123 WS=13
8
54310086100
SELF LOCKING NUT M10 CU WS=14
9
72007015000
FUEL TANK CARRIER R/S
10
72007014000
FUEL TANK CARRIER L/S
11
0019080306S
COUNTER -SUNK SCREW ISA45 M8X30
12
0035100309S
AH-COLLAR SCREW M10X30 ISA45
13
54630044000
COLLAR NUT M10 WS=13
16
0032100256S
AH-COLLAR SCREW M10X25 ISA45
17
0035100209
AH-COLLAR SCREW M10X20 ISA45
18
70004016000
MONOSHOCK SCREW TOP M12X80
19
69004094000
HH COLLAR SCREW M10X56 WS13 08
20
0025080506
HH COLLAR SCREW M8X50 TX40
21
06923080003
HEXAGON NUT DIN EN1661 M8 SW13
22
0025080456
HH COLLAR SCREW M8X45 TX40
23
70003024050
SIDE STAND SPRING PLATE 12
24
0017060205
SCREW FOR PLASTIC K60X20 SW6
25
0016070253
PLASTIC SCREW K7X25 PT1447
26
70007039000
SEAT LOCKING MECHANISM
27
70007039060
BUSHING QUICK LOCK
28
70007039050
BRACKET QUICK LOCK
29
0024060106
HH COLLAR SCREW M6X10 TX30
30
72503096000
SPROCKET COVER CPL.
31
45239060050
COLLAR BUSHING 6,3X8X13X9,5
32
70003053000
CHAIN SLIDING PIECE BELOW CPL.
33
0025080356
HH COLLAR SCREW M8X35 TX40
34
78003040033
FOOTREST L/S + R/S CPL. 09
35
78003041050
FOOTREST R/S 08
36
78003040050
FOOTREST L/S 08
37
54803044000
PIN FOR FOOT PED 51.5X9.8 MM
38
54603041000
FOOTREST SPRING L/S & R/S
39
0125100003
WASHER DIN0125-A10,5
40
0094032253
PIN DIN0094-3,2X25 STEEL
41
72503013000
ENGINE BRACKET
42
0025080206S
HH COLLAR SCREW M8X20 ISA40
50
78003035000
STEERING HEAD LOCK 08
99
70003053010
CHAIN SLIDING KIT BELOW
