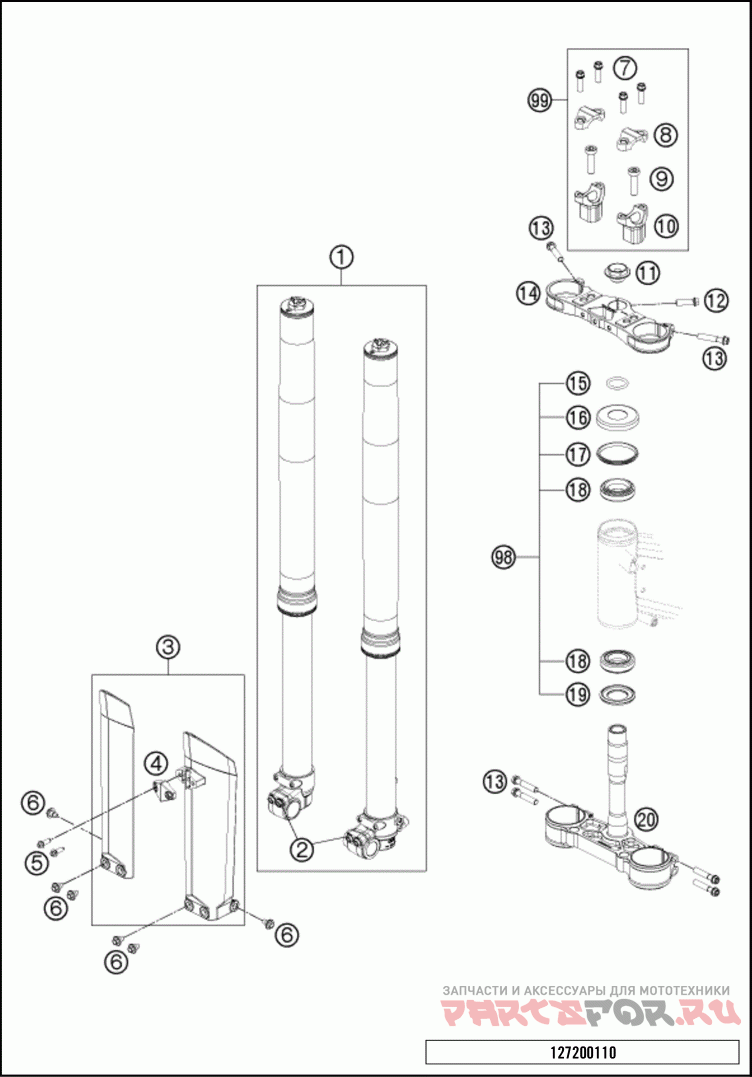

Передняя вилка

KTM 2016 250 FREERIDE CHASSIS

KTM
#oem кодцена
2
0025080206
HH COLLAR SCREW M8X20 TX40
3
4710109400028
FORK PROTECTOR SET 85SX WHITE
4
4710108500028
CLAMP FOR BRAKE HOSE
5
0017060206
SCREW F. PLASTIC K60X20AL SW6
6
59001092050
SPECIAL SCREW M6X12,5 WS=8
7
0025080256
HH COLLAR SCREW M8X25 TX40
8
77201038000
HANDLEB AR CLAMP 28MM
9
0032100356S
AH-COLLAR SCREW M10X35 ISA45
10
59401039047
HANDLEB .SUPP . D=28MM H=47MM 05
11
72001036000
COLLAR SCREW M20X1,5 WS17 AL
12
0025080256S
HH COLLAR SCREW M8X25 TX40
13
0025080406
HH COLLAR SCREW M8X40 TX40
14
7000103402030
TOP FORK PLATE BLACK
15
0770025035
O-RING 25X3,55 NBR70 05
16
78101086000
STEERING HEAD COVER
17
54601184000
STEARING HEAD GASKET TOP
18
54201081100
TAPERED ROLLER BEARING CPL. 06
19
77701084000
O-RING SUPPORT W. SEALING LIP
20
7000103202030
BOT .TRIPLE CLAMP CPL. BL. 20MM
98
00050000930
STEARING HEAD REP . KIT 06-15
99
00050000926
HANDLEB AR SUPPORT KIT FREERIDE
