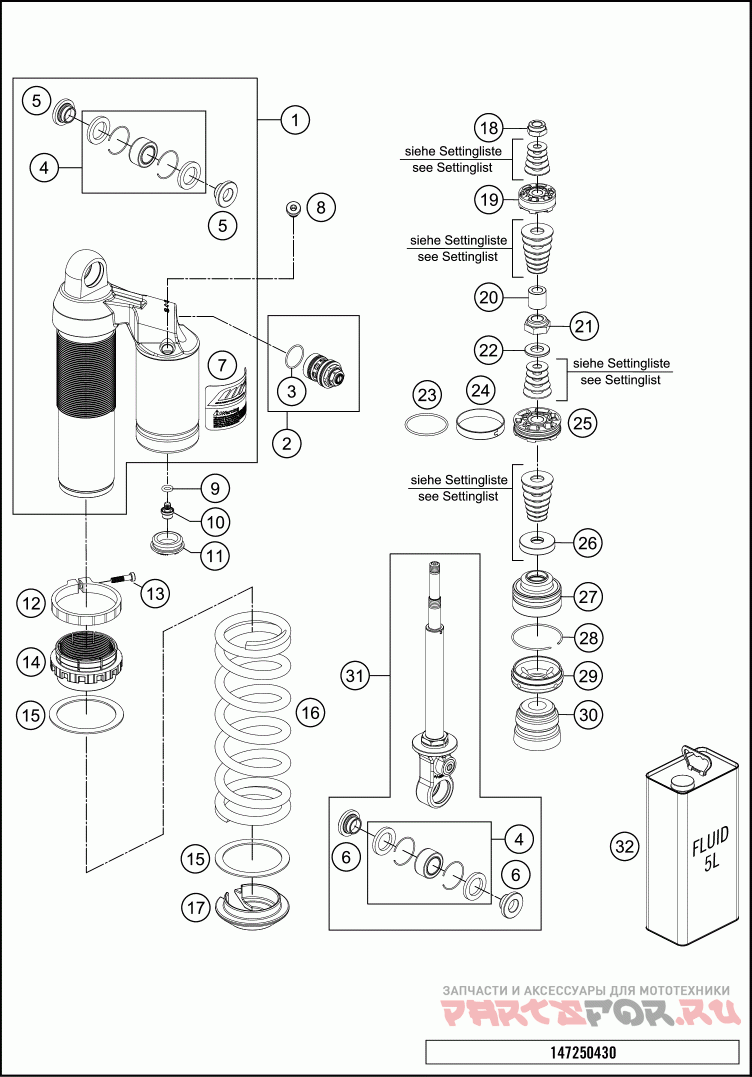

Амортизатор в разборе

KTM 2016 250 FREERIDE CHASSIS

KTM
#oem кодцена
1
46181018S1
MONOSHOCK CASE CPL.
2
50180213S20
DCC-COMPR .DAMP .CONTROL CPL. 13
3
50180218
O-RING 25X1,5 VITON
4
R12012
REP . KIT BEAR./SEAL UP . 07
5
46181105
DIST ANCE BUSH KGW 12X24
6
46180007
ADAPTOR BUSH KGW 12X24
7
52000087
STICKER WP MONOSHOCK
8
50180095
BLEED PLUG R 1/8
9
46810893
O-RING NBR 5,28X1,78
10
36120151S
SCREW PLUG M5X6
11
46811208
RUBBER CAP
12
46181014
TENSIONI NG RING D64 H10
13
0912050203
%ALLENHEAD SCREW M5 L=20 STAIN
14
46181013
ADJUSTING NUT D46 PLASTIC
15
50180410
INTERM.RING D=58
16
91010324S
SPRING 55/63/71 N/MM SET
16
91010323S
SPRING 58/66/74 N/MM SET
16
91010170S
SPRING 55 N/MM
17
46180349
SPRING WASHER H=15 D=28
18
46180356
PISTON ROD NUT M10X1
19
14460016
PISTON + PISTON SPRING
20
46181016
SANDWIC H BUSH 10X17X10
21
46810474
PISTON ROD NUT
22
46811258
RING 12X24X2,5
23
46810035
O-RING VITON 37,82X1,78
24
46811206
PISTON RING 8X46
25
46810560
PISTON 6+6D7
26
14460017
REBOUND DISC H=4
27
46180669S
ADAPTOR CPL. D=46 H=28 07
28
46810010
CIRCLIP 49X1,5
29
46180338
CAP D=46 H=9,5
30
50180276
BUMP RUBBER WP60 D=18-26
31
46181010S1
MONOSHOCK LOWER PAR T
32
50180751S1
SHOCK ABSORBER FLUID 5 LT
