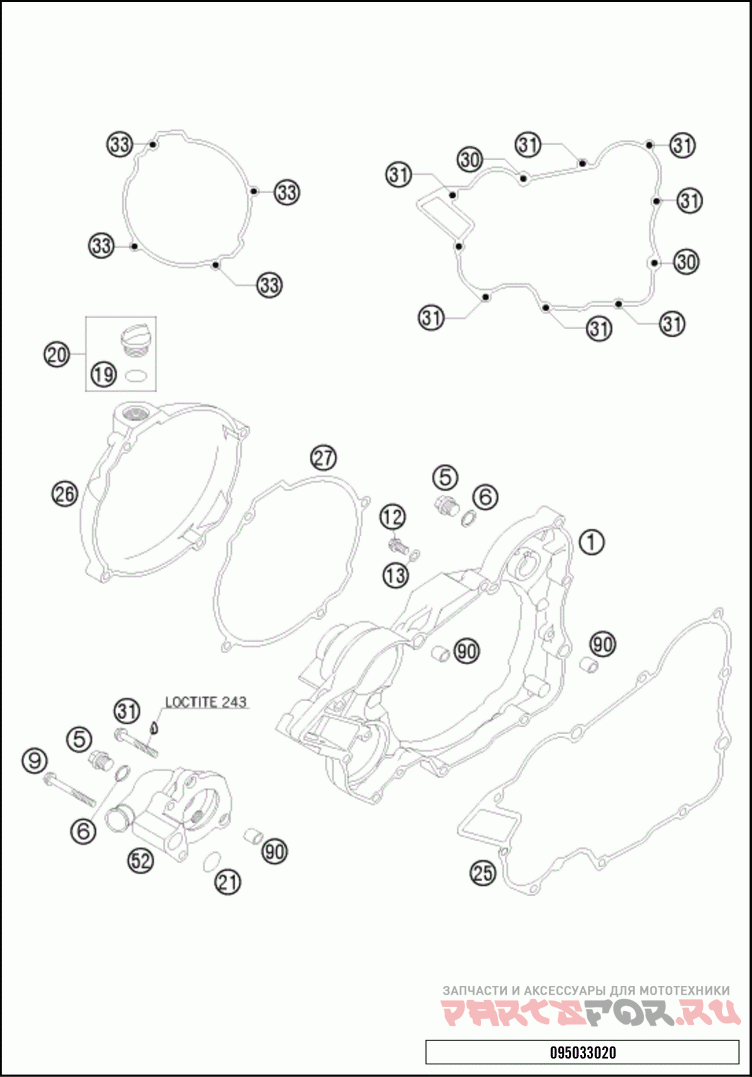

Кожух сцепления

KTM 2016 200 XC-W ENGINE

KTM
#oem кодцена
1
5033000114415
CLUTCH COVER CPL. 125/200 09
5
0910100003
PLUG DIN0910-M 10X1
6
0603100141
COPPER GASKET DIN7603-10X14X1
9
0025060506
HH COLLAR SCREW M6X50 TX30
12
0025060126
HH COLLAR SCREW M6X12 TX30
13
0603061001
CU-SEAL RING DIN7603-6X10X 1
19
0770191015
O-RING 19,00X3,00 NBR
20
79430020033
OIL FILLER CAP M24x3 WITH O-R
21
0770160030
O-RING 16,00X3,00 NBR 70
25
50330025000
CLUTCH COVER GASKET 0,5MM
26
5033002610015
CLUTCH OUTSIDE COVER
27
50330027000
CLUTCH OUTS.COVER GASKET 1MM
30
0025060406
HH COLLAR SCREW M6X40 TX30
31
0025060356
HH COLLAR SCREW M6X35 TX30
33
0025060306
HH COLLAR SCREW M6X30 TX30
52
50335052033
WATERPUMP COVER 125/200 98
90
49030090100
DOWEL 9,8 X 7 X 10
