Тормозной цилиндр задний для мотоциклов KTM 2016 200 XC-W CHASSIS (2016)

Москва и регионы России

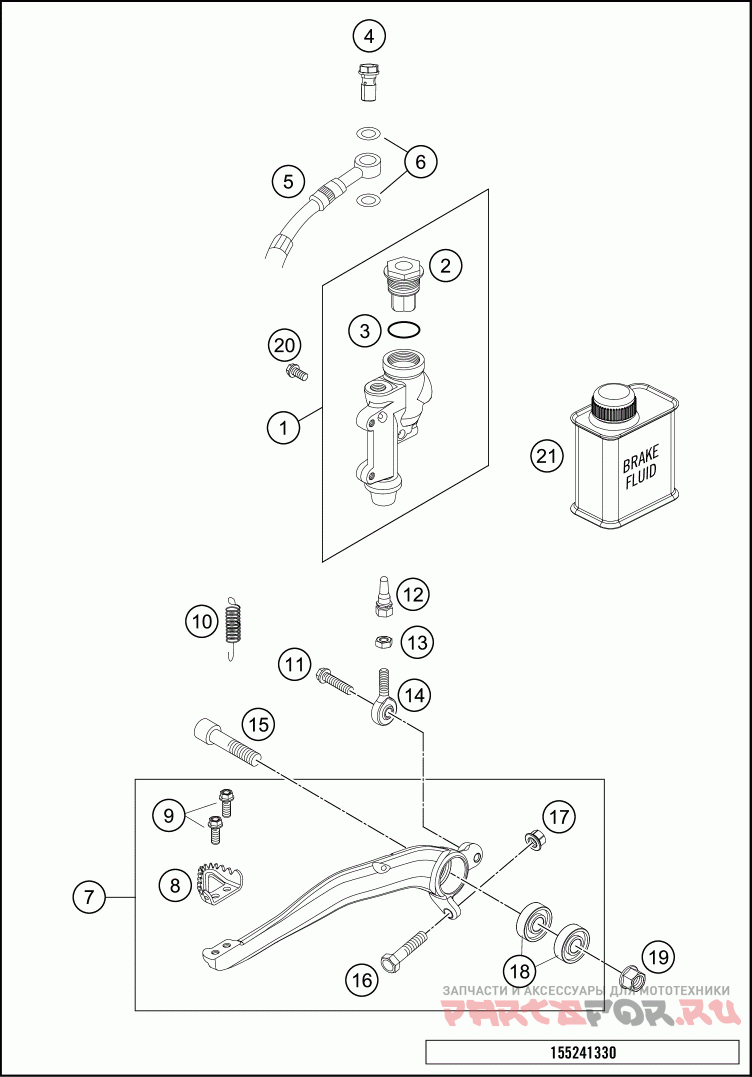

Тормозной цилиндр задний

KTM 2016 200 XC-W CHASSIS

Тормозной цилиндр задний

#

oem код

название

цена

1

REAR BRAKE CYLINDER CPL.SX 09

REAR BRAKE CYLINDER CPL.SX 09

2

REAR BRAKE CYL. COVER CPL. 04

REAR BRAKE CYL. COVER CPL. 04

3

FOOT -BRAKE CYL. GASKET SX 03

FOOT -BRAKE CYL. GASKET SX 03

4

HOLLOW SCREW BLACK M10X1X19

HOLLOW SCREW BLACK M10X1X19

5

BRAKE HOSE REAR 655MM 15

BRAKE HOSE REAR 655MM 15

6

COPPER GASKET DIN7603-10X14X1

COPPER GASKET DIN7603-10X14X1

7

FOOT BRAKE LEVER CPL.

FOOT BRAKE LEVER CPL.

8

STEP PLATE FOR BRAKE LEVER

STEP PLATE FOR BRAKE LEVER

9

HH COLLAR SCREW M5X12 TX30

HH COLLAR SCREW M5X12 TX30

10

RETURN SPRING FOR BRAKE LEVER

RETURN SPRING FOR BRAKE LEVER

11

HH COLLAR SCREW M6X20 TX30

HH COLLAR SCREW M6X20 TX30

12

PUSH ROD L=28MM 03

PUSH ROD L=28MM 03

13

SELF LOCK. NUT DIN0985-M 6

SELF LOCK. NUT DIN0985-M 6

14

SWIVEL HEAD KA6 03

SWIVEL HEAD KA6 03

15

AH-COLLAR SCREW M10X40 ISA45

AH-COLLAR SCREW M10X40 ISA45

16

SPECIAL SCREW M8X26 WS=10

SPECIAL SCREW M8X26 WS=10

17

COLLAR NUT M8 WS=10

COLLAR NUT M8 WS=10

18

BALL BEARING SKF 6000-2RS1

BALL BEARING SKF 6000-2RS1

19

COLLAR NUT M10 WS=13

COLLAR NUT M10 WS=13

20

HH COLLAR SCREW M6X12 TX30

HH COLLAR SCREW M6X12 TX30

21

BRAKE FLUID DOT5.1 0,25L

BRAKE FLUID DOT5.1 0,25L
