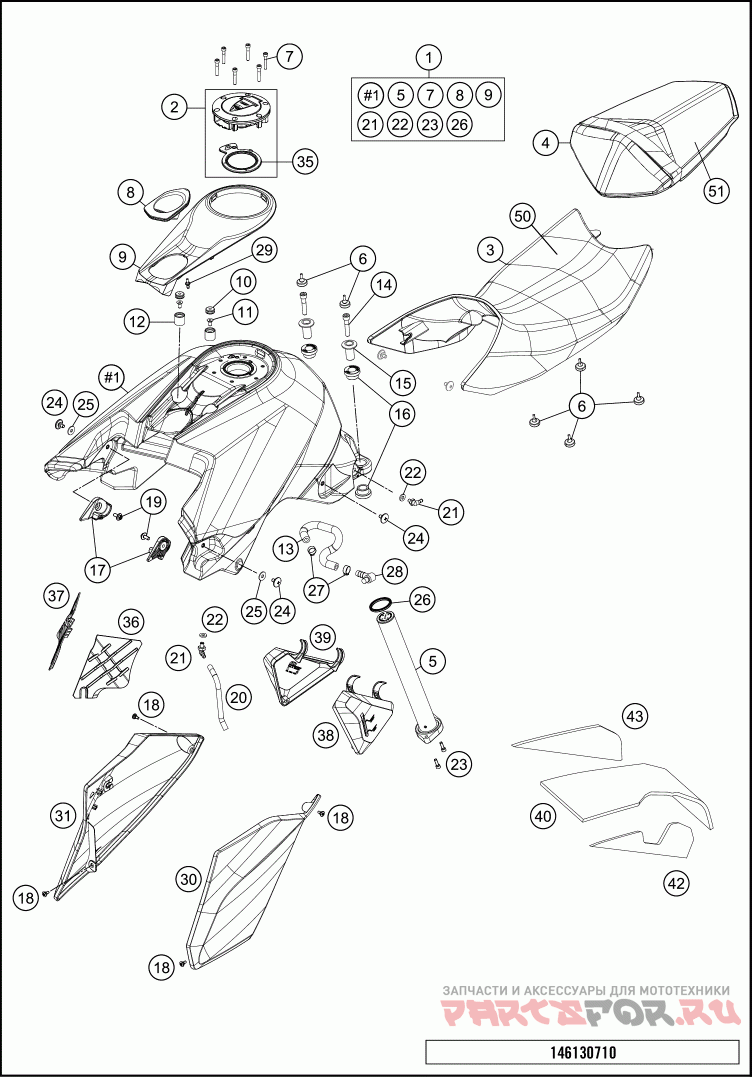

T ank, sea t , cover для мотоциклов KTM 2016 1290 SUPERDUKE R ORANGE CHASSIS (2016)

T ank, sea t , cover

KTM 2016 1290 SUPERDUKE R ORANGE CHASSIS

oem код

название

цена

61307013044EBA

FUEL TANK ASS. SD ORANGE 14

TANK CAP CPL.

SEAT DRIVER CPL.

SEAT PILLION CPL.

DIST ANCE RUBBER AIRBOX 03

0912050253

AH SCREW DIN0912-M 5X25

61307059000

COVER IGNITION LOCK

61307058000

COVER FUEL TANK

76008052050

RUBBER SLEEVE 5X7.6X13MM

0991060126

FLAT HEAD SCREW DIN7991-M 6X12

76008052000

BUSHING 13X20X18,5MM

61307017050

FUEL HOSE PUMP

0912080403

AH SCREW DIN912 M8X40

61007060000

BEARING BUSHING OUTSIDE 05

61007065000

TANK RUBBER BUSHING FRONT 05

61307021044

TANK MOUNTING FRONT L/S & R/S

69008021160

SPECIAL SCREW M5X12

0024060136

HH COLLAR SCREW M6X13 TX30

60007126001

HOSE 5,4X9,4 NBR, METER

60007024000

CONNECT .PIECE F.OVERFLOW M7 03

60007024050

GASKET FOR CONNECTING PIECE 03

0912050163

AH SCREW DIN0912-M 5X16

58407011100

SCREW FOR SEAT M6X11,5/8

0021060003

WASHER DIN9021-A 6,4

60307080090

GASKET FUEL LEVEL SENSOR

00050157706

VARIABLE ONE-EAR CLAMP 15,7MM

7720701000030

PLUG CPC

54806008051

QUICK RELEASE-NIP PLE 03

GASKET TANK CAP

FRAME COVER L/S

FRAME COVER R/S

KNEE PAD L/S

KNEE PAD R/S

INSULA TION MAT MIDDLE

INSULA TION MAT L/S

INSULA TION MAT R/S

SEAT COVER

SEAT COVER
