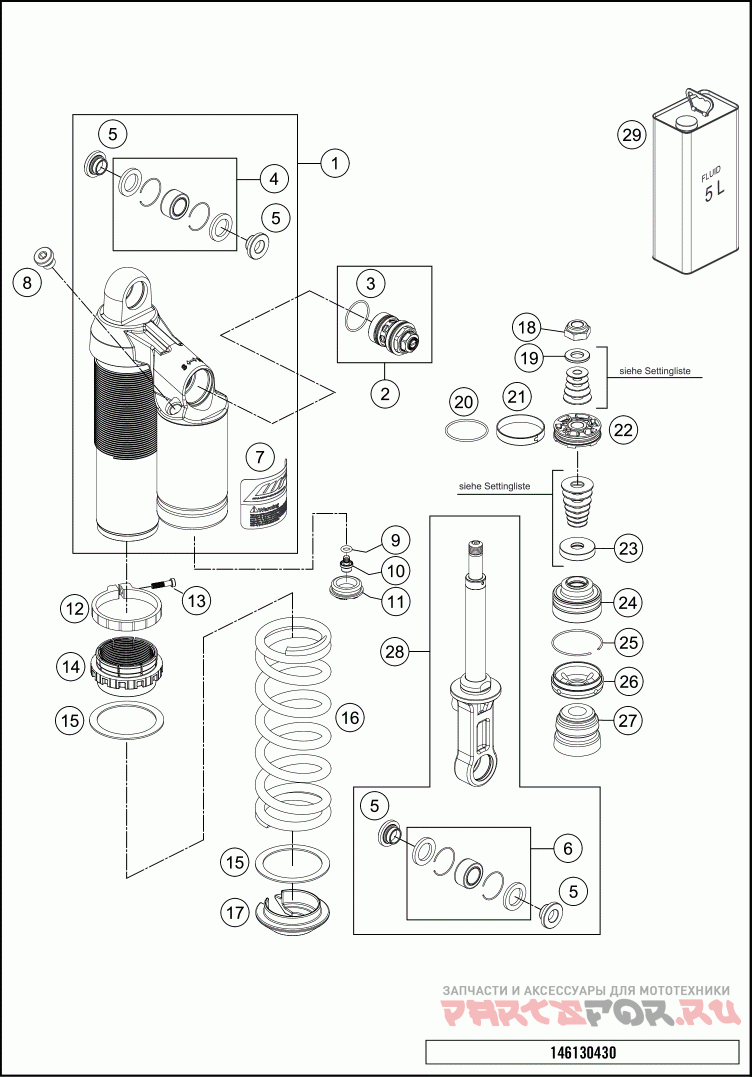

Monoshock dissassembled

KTM 2016 1290 SUPERDUKE R BLACK CHASSIS

KTM
#oem кодцена
2
50180213S10
DCC-COMPR .DAMP .CONTROL CPL. 07
3
50180217
O-RING 27X1,5 VITON
4
R12012
REP . KIT BEAR./SEAL UP . 07
5
46181307E
BUSHING KGW 1525 14X32
6
R12012
BEARING KIT KGW 1525 990 DUKE
7
52000087
STICKER WP MONOSHOCK
8
50180095
BLEED PLUG R 1/8
9
46810893
O-RING NBR 5,28X1,78
10
36120151S
SCREW PLUG M5X6
11
46811208
RUBBER CAP
12
46181014
TENSIONI NG RING D64 H10
13
0912050203
%ALLENHEAD SCREW M5 L=20 STAIN
14
46181013
ADJUSTING NUT D46 PLASTIC
15
50180410
INTERM.RING D=58
16
91010078S
SPRING (59) 170-185 D 14 05
17
46180396S
SPRING RET AINER H=15 D=28
18
46180597
PISTON ROD NUT 06
19
46811258
RING 12X24X2,5
20
46810035
O-RING VITON 37,82X1,78
21
46812011
PISTONRI NG
22
46810560
PISTON 6+6D7
23
46181117
REBOUND WASHER 34/12 H5
24
46180669S
ADAPTOR CPL. D=46 H=28 07
25
46810010
CIRCLIP 49X1,5
26
46181031
CAP D46 L=18MM
27
46180365
BUMP RUBBER WP60 H=30 D=18-26
28
46180654S15
MONOSHOCK LOWER PAR T
29
50180751S1
SHOCK ABSORBER FLUID 5 LT
