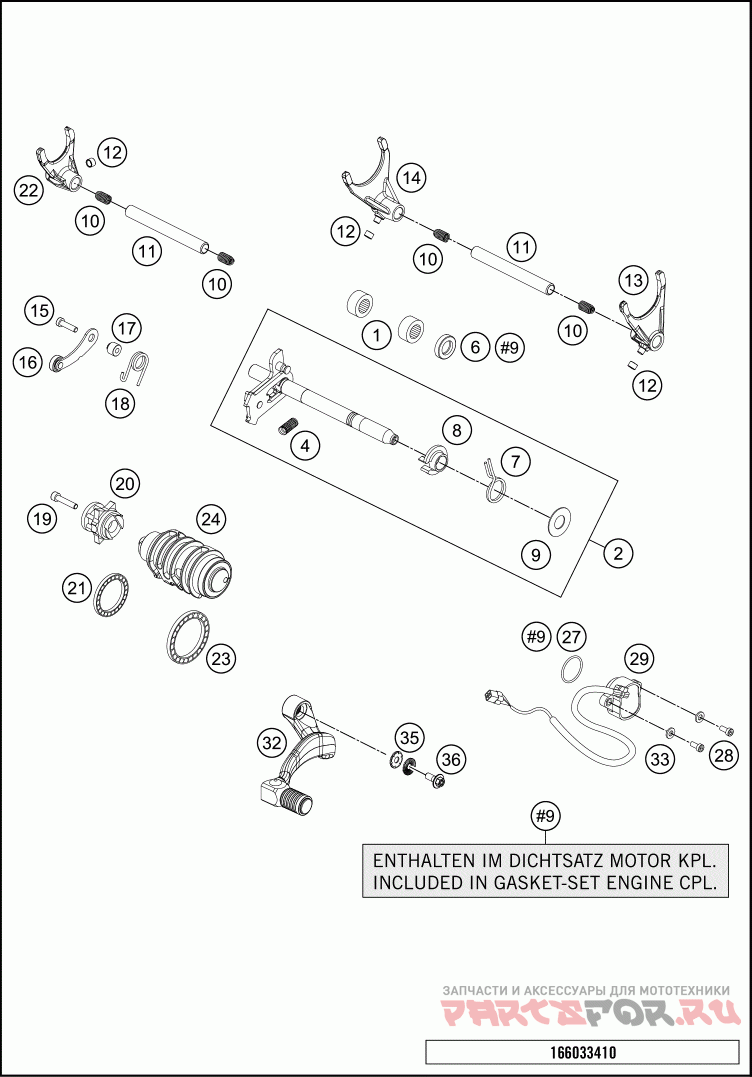

Механизм переключения

KTM 2016 1190 ADVENTURE R ENGINE

KTM
#oem кодцена
1
54632095000
NEEDLE BEAR.HK 1412 14X20X12
2
61234005333
SHIFT SHAFT CPL.
4
56534013100
TENSIONI NG SPRING 0,8MM
6
0760142460
SHAFT SEAL RING 14X24X6 B
7
61234014000
RETURNS PRING 2MM
8
54634020000
SPRING GUIDE
9
54634050000
STOP DISK 14X30X1
10
58038023200
PRESSURE SPRING 0,9MM
11
59034020000
SHIFT RAIL 11,8X105MM
12
50334018100
SHIFTING ROLLER 6X8X5,2
13
61234002100
SHIFT FORK 2-3 GEAR
14
61234001000
SHIFTING FORK 08
15
0024060206
HH COLLAR SCREW M6X20 TX30
16
75034024044
LOCKING LEVER CPL. 07
17
75034052000
SLEEVE FOR LOCKING LEVER 07
18
61234023000
SPRING - LOCKING LEVER
19
0912060303
AH SCREW DIN0912-M 6X30
20
61234015444
SHIFT DRUM LOCA TING CPL.
21
0625618050
BALL BEARING 61805 C3
22
61234003200
SHIFT FORK 5-6 GEAR
23
0625068080
GROOVED BALL BEARING 6808 JRC3
24*
60334012100
SHIFTING DRUM CPL.
27
07700240251
O-RING 24X2,5 VITON
28
0984050163S
CYL. SCREW DIN6912 M5X16 8.8
29
60211023100
GEAR-POS ITION SENSOR
32
6003403104433S
SHIFTING LEVER CPL.
33
0125050003
WASHER DIN0125-A 5,3
35*
50233041500
NORDLOC K WASHER M6
36*
0024060156S
HH COLLAR SCREW M6X15 TORX30
