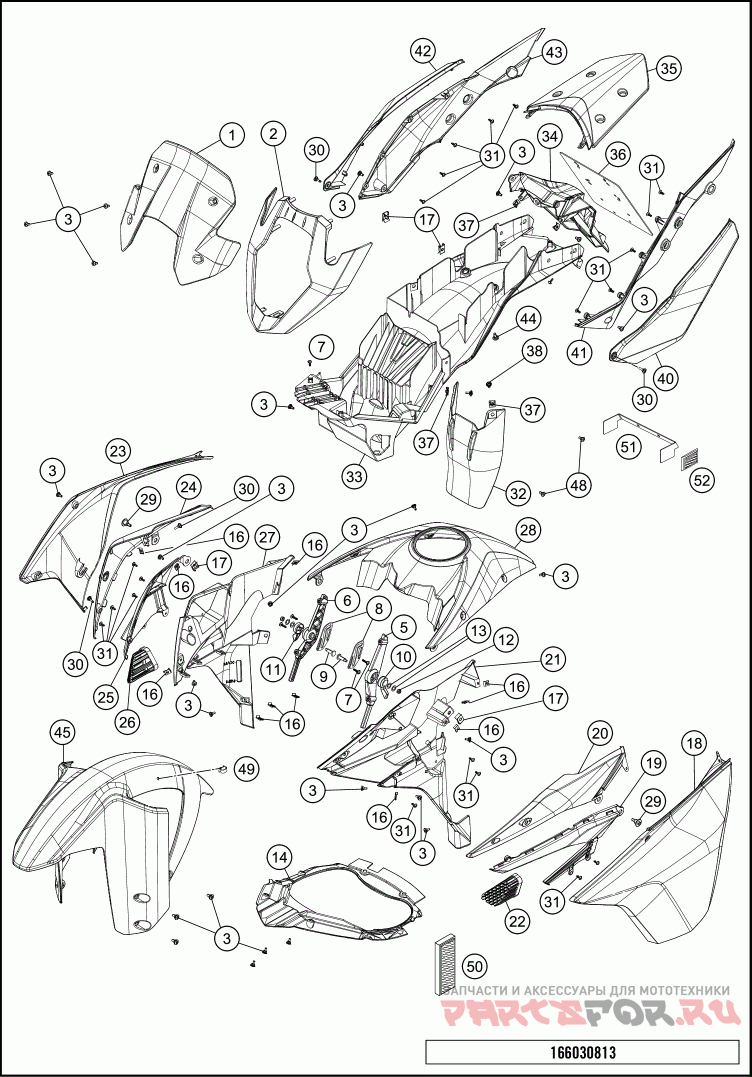

Обтекатель, крылья

KTM 2016 1190 ADVENTURE R CHASSIS

KTM
#oem кодцена
1
60308108500
WIND SHIELD SHORT USA
2
6030800100028A
HEADLIGHT MASK WHITE
3
69008021160
SPECIAL SCREW M5X12
5
60308008050
WIND SHIELD SUPPORT L/S
6
60308008051
WIND SHIELD SUPPORT R/S
7
0081050181
SCREW FOR PLASTIC K50X18 T20
8
60308008055
SLIDING SHEET WIND SHIELD
9
60308008056
TENSION BOL T
10
60308008052
TENSION LEVER L/S
11
60308008053
TENSION LEVER R/S
12
0985060003
SELF LOCK. NUT DIN0985-M 6
13
0093081508
BELLEVILL E SPRING 8,2X15X0,8
14
60308005000
COCKPIT COVER LOWER SIDE
16
69008021080
RANGE CHANGE METAL NUT M5
17
54603048100
RANGE CHANGE METAL NUT M6
18
6030805000030A
SPOILER LEFT
19
6030800205033
AIR INT AKE L/S
21*
60308025100
INNER LINING LEFT
22
60308021050
COVERING GRID AIR INT AKE L/S
23
6030805100030A
SPOILER RIGHT
25
6030800305033
AIR INT AKE R/S
26
60308031050
COVERING GRID AIR INT AKE RIGHT
27*
60308026100
INNER LINING RIGHT
28
6030803000028A
COVER FUEL TANK WHITE
29
60035001000
SPECIAL SCREW M6X21 WS=8
30
69008021060
SPECIAL SCREW M5X17
31
0081050121
SCREW FOR PLASTIC K50X12 T20
32
60304050000
SPLASH PROTECTION
33*
60308019200
REAR END LOWER PAR T
34
60308015000
NUMBER PLATE SUPPORT
35
6030801300033
REAR FENDER
36
60012081200
LICENCE FITTING 06
37
54603048200
RANGE CHANGE METAL NUT M5
40
6030804100028A
SIDE COVER LEFT WHITE
41
6030804300033
REAR SIDE COVER LEFT
42
6030804200028A
SIDE COVER RIGHT WHITE
43
6030804400033
REAR SIDE COVER RIGHT
44
83008000015
SPECIAL SCREW M6X15X3
45
6030801000033
FRONT FENDER
48
0025060126
HH COLLAR SCREW M6X12 TX30
49
58111076000
CABLE SUPPORT KHS NR.150-47610
50
60012080100
SIDE REFLECTOR YELLOW 03 FOR US AU CN ONL Y
51
62512081000
BRACKET SIDE REFLECTOR 06 ONL Y US & CN
52
16512180100
SIDE REFLECTOR RED REAR ONL Y US & CN
