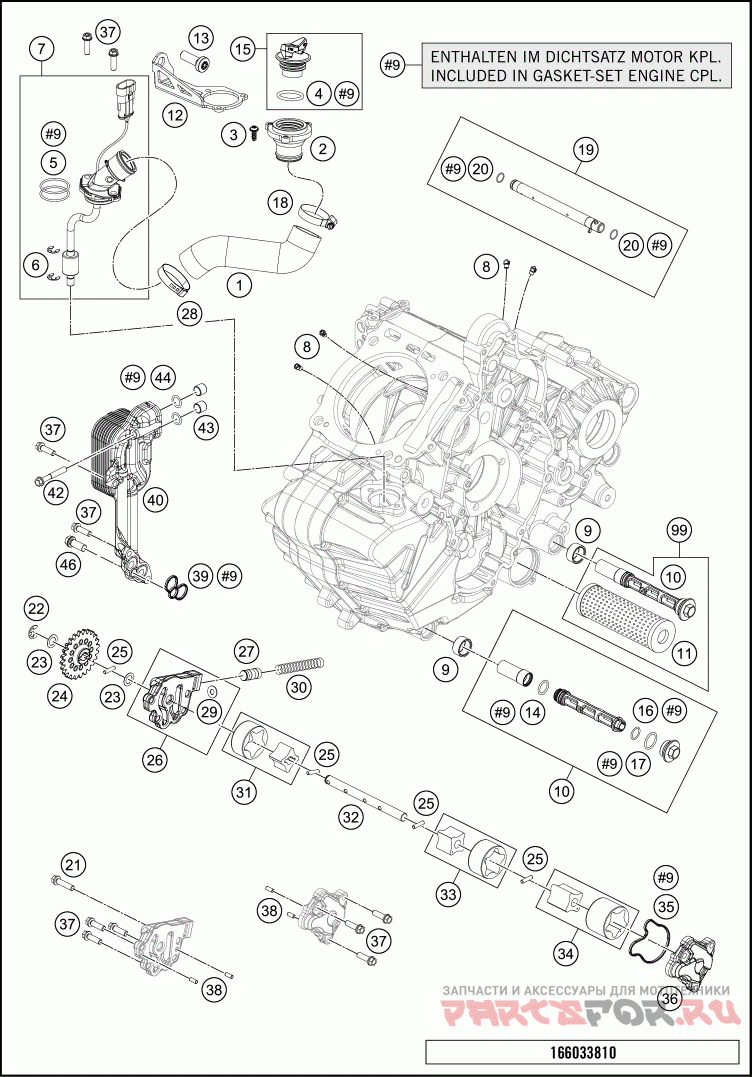

Lubrica ting system

KTM 2016 1190 ADVENTURE ORANGE ENGINE

KTM
#oem кодцена
1
60307026100
OIL INFILLING HOSE
2
60307129000
THREADE D ADAPTER
3
0081050141
EJOT PT SCREW 50X14 WN 1451
4
0770250032
O-RING 25,00X3,20 NBR 70
5
0770300020
O-RING 30X2,0 FPM
6
0799070000
TAB WASHER DIN6799-RS 7,0
8
60030063070
OIL JET 70 M5
9
61238017000
OIL SCREEN BUSHING 08
10
61238021100
OIL SCREEN CPL.
11
61338015200
OIL FILTER
12
60312967040
OIL INFILLING ADAPTER BRACKET ONL Y FOR ADVENTURE R
13
0035100309S
AH-COLLAR SCREW M10X30 ISA45 ONL Y FOR ADVENTURE R
14
0770140200
O-RING 14,00X2,00
15
60338085100
OIL PLUG CPL.
16
0770125015
O-RING 12,5X1,5 NBR
17
0770170200
O-RING 17,00X2,00
18
10001120000
CLAMP 25-40 SGT 4
19
61230065000
OIL INJECTION TUBE CPL. 08
20
0770010010
O-RING 10,00X1,00 NBR 70 SH
21
0025060256
HH COLLAR SCREW M6X25 TX30
22
0799080000
TAB WASHER DIN6799 RS8
23
60038007010
WASHER 10X16X0,5 03
24*
60038001324
OIL PUMP GEAR 24Z
25
0402041580
NEEDLE ROLLER NRB 4X15,8 G2
26
61238009144
PRESSURE PUMP COVER CPL.
28
00050376706
VARIABLE ONE-EAR CLAMP 37,6MM
29
50337073000
Регулировочная прокладка
30
61238026000
CONTROL SPRING
31
60038009000
ROTOR-SET 19MM 03
32
61238002000
OIL PUMP SHAFT 08
33
61238011100
ROTOR SET 22MM
34
61238010100
ROTOR SET 30MM
35
61238008150
MOLDED RING SUCTION PUMP COVER
36
61238008200
SUCTION PUMP COVER
37
0025060206
HH COLLAR SCREW M6X20 TX30
38
0402050980
NEEDLE ROLLER DIN5402 5X9,8
39
61238051000
MOLDED RING
40
6923805000033
OIL COOLER CPL.
42
0025060506
HH COLLAR SCREW M6X50 TX30
43
61238052000
Втулка
44
0770012021
O-RING 12X2 VITON GREEN
46
0025080206
HH COLLAR SCREW M8X20 TX40
99
00050000068
OILFIL TER SERVICE KIT
