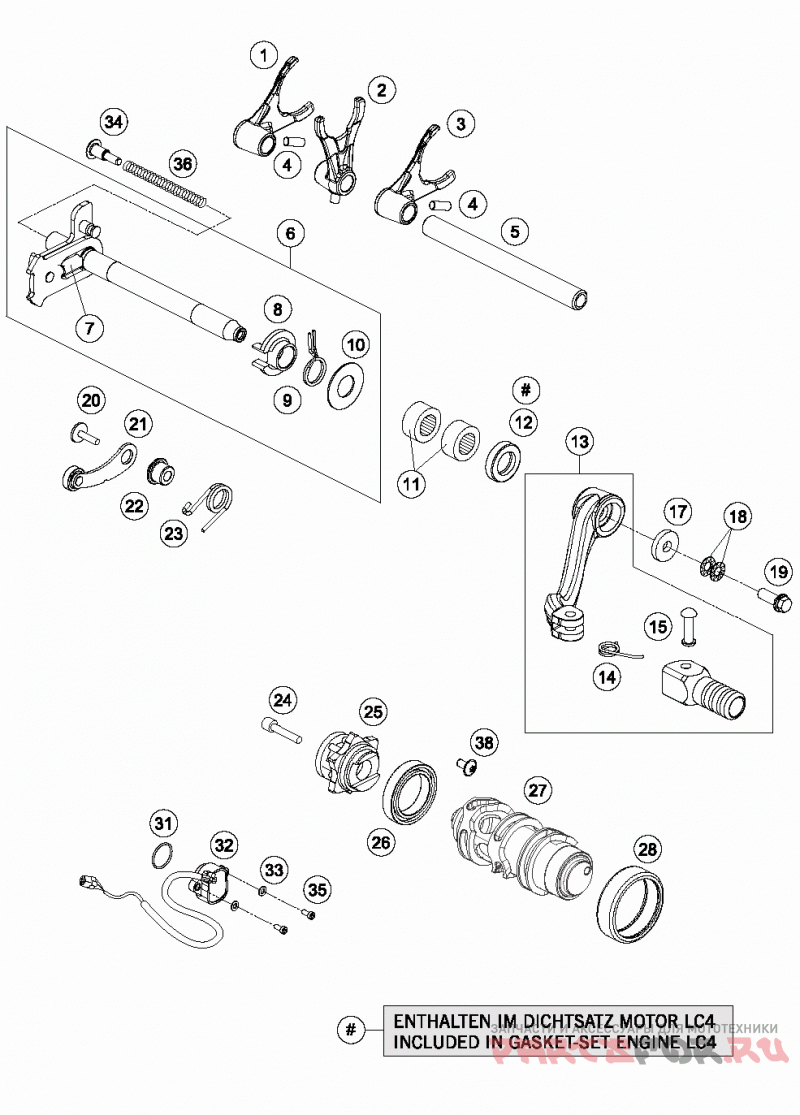

Механизм переключения

KTM 690 ENDURO R ENGINE

Механизм переключения

#

oem код

название

цена

1

Shift Fork F. Slidinggear 5 12

Shift Fork F. Slidinggear 5 12

2

Shift Fork F. Slidingg. 3/4 12

Shift Fork F. Slidingg. 3/4 12

3

Shift Fork F. Slidinggear 6 12

Shift Fork F. Slidinggear 6 12

4

Needle Roller Din5402 6x14, 8

Needle Roller Din5402 6x14, 8

5

Shiftrail 07

Shiftrail 07

6

Вал переключения в сборе

Вал переключения в сборе

7

Tensioning Spring 0, 8mm

Tensioning Spring 0, 8mm

10

Stop Disk 14x30x1, 5 Steel

Stop Disk 14x30x1, 5 Steel

11

Needle Bear.hk 1412 14x20x12

Needle Bear.hk 1412 14x20x12

12

Shaft Seal Ring 14x24x6b Viton

Shaft Seal Ring 14x24x6b Viton

13

Shift Lever Cpl. 07

Shift Lever Cpl. 07

14

Shifting Lever Spring

Shifting Lever Spring

15

Bolt 6x25 For Shift Lever

Bolt 6x25 For Shift Lever

17

Steel Washer 6, 4x17x3

Steel Washer 6, 4x17x3

18

Pair Of Washers M 6 Nordlock

Pair Of Washers M 6 Nordlock

19

Special Screw M6x16 Ws=8 10.9

Special Screw M6x16 Ws=8 10.9

20

Hh Collar Screw M6x20 Tx30

Hh Collar Screw M6x20 Tx30

21

Locking Lever Cpl. 07

Locking Lever Cpl. 07

22

Sleeve For Locking Lever 07

Sleeve For Locking Lever 07

23

Arresting Lever Spring 03

Arresting Lever Spring 03

24

Ah Screw Din0912-m 6x30

Ah Screw Din0912-m 6x30

25

Shift Drum Locating Cpl. 07

Shift Drum Locating Cpl. 07

26

Ball Bearing 61805 C3

Ball Bearing 61805 C3

27

Shifting Drum Cpl.

Shifting Drum Cpl.

28

Needle Bear Hk3512 35x42x12

Needle Bear Hk3512 35x42x12

31

Уплотнительное кольцо 24x2, 5 витон

Уплотнительное кольцо 24x2, 5 витон

32

Gear-position Sensor

Gear-position Sensor

33

Cyl. Screw Din6912 M5x16 8.8

Cyl. Screw Din6912 M5x16 8.8

34

% Spacer

% Spacer

35

Шайба Din0125-в 5, 3

Шайба Din0125-в 5, 3

36

% Spring For Operating Shaft

% Spring For Operating Shaft

38

%flat Head Screw Iso7380 M5x10

%flat Head Screw Iso7380 M5x10
