Рама

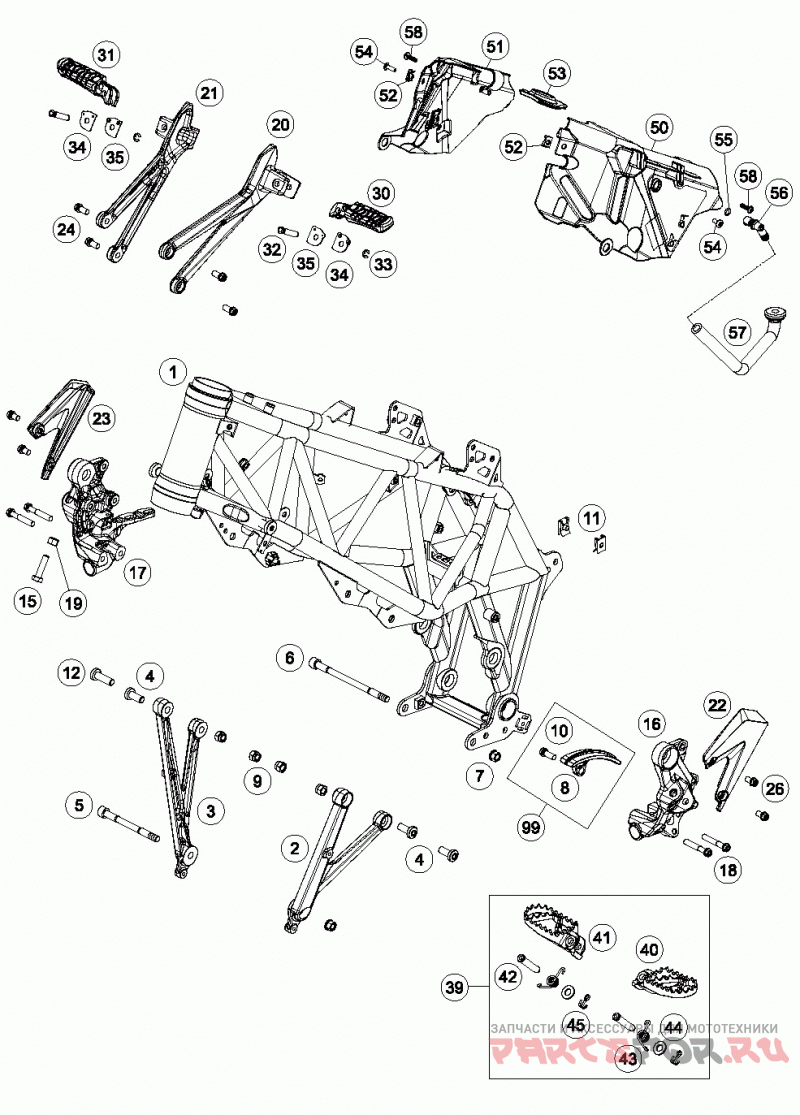

KTM 690 ENDURO R CHASSIS

KTM
#oem кодцена
1
7650300130004
Frame "765na" Orange
2
7650300500033
Engine Support L/s Black
3
7650300600033
Engine Support R/s Black
4
0035100249
Ah-collar Screw M10x24 Isa45
5
75003015000
Special Screw M10x115 Isk8 07
6
75003014000
Special Screw M10x152 Isk8 07
7
54630044000
Collar Nut M10 Ws=13
8
76504067000
Chain Slid. Guard 08
9
54310086100
Self Locking Nut M10 Cu Ws=14
10
0025080206
Hh Collar Screw M8x20 Tx40
11
54603048500
Range Change Metal Nut M4
12
0035100309S
Ah-collar Screw M10x30 Isa45
15
0933050203
Hh Screw Din933 M5x20
16
7650303804401
Foot Rest Bracket L/s
17
7650303924401
Footrest Bracket Right
18
0025080456
Hh Collar Screw M8x45 Tx40
19
0934050003
Hexagon Nut Din0934-m 5
20
7650304800001S
Foot Rest Bracket Rear L/s
21
7650304900001
% Foot Rest Bracket Rear R/s
22
76503038150
Heel Protector Ls 09
23
76503039050
Heel Protector Rs 08
24
0025080166
Hh Collar Screw M8x16 Tx40
26
0025080126
Hh Collar Screw M8x12 Tx40
30
60003050000
Footrest Cpl. L/s Rear 03
31
60003051000
Footrest Cpl. R/s Rear 03
32
60003044000
Bolt For Footrest Rear 03
33
0799060003
Tab Washer Din6799-rs 6, 0
34
60003052000
Engage Panel Footrest R/s 03
35
60003152000
Engage Panel Footrest L/s 03
39
78003040033
Footrest L/s + R/s Cpl. 09
40
78003040050
Footrest L/s 08
41
78003041050
Footrest R/s 08
42
54803044000
Pin For Foot Ped 51.5x9.8 Mm
43
54603041000
Footrest Spring L/s & R/s
44
0125100003
Washer Din0125-a10, 5
45
0094032253
Pin Din0094-3, 2x25 Steel
50
76503083200
Cover Frame L/s
51
76503084200
Cover Frame R/s
52
69008021080
Range Change Metal Nut M5
53
76503085000
Cover For Ignition Lock
54
78105081010
Screw Torx M5x10
55
0770080020
O-ring 8x2 Silicone
56
60038082000
Angle Connector Lc8 03
57
76530087100
Ventilation Oil Separator Foam
58
0081050181
Screw For Plastic K50x18 T20
99
76504067010
Chain Sliding Below 08-13
