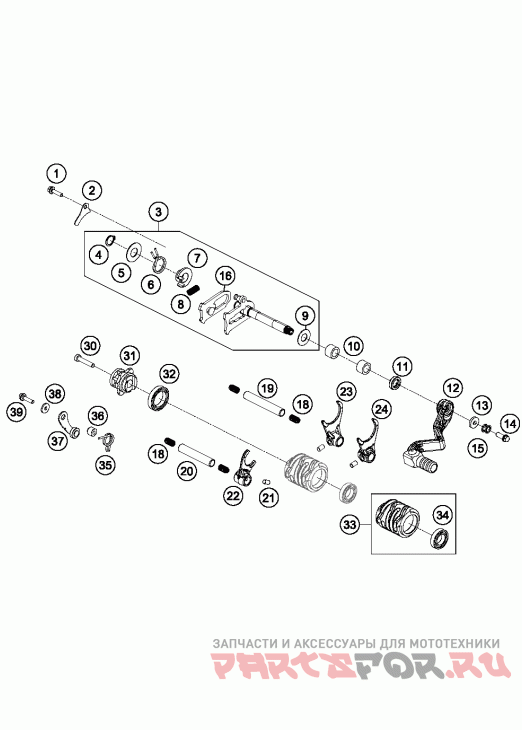

Механизм переключения для мотоциклов KTM 65 SX ENGINE (2015)

Москва и регионы России

Механизм переключения

KTM 65 SX ENGINE

Механизм переключения

#

oem код

название

цена

1

Hh Collar Screw M5x12 Tx30

Hh Collar Screw M5x12 Tx30

2

Shifting Shaft Fender Ret. Pl.

Shifting Shaft Fender Ret. Pl.

3

Shift Shaft Cpl.

Shift Shaft Cpl.

4

Lock Washer Din0471-14x1

Lock Washer Din0471-14x1

5

Stop Disk 14x30x1

Stop Disk 14x30x1

6

Return Spring 03

Return Spring 03

7

Spring Guide

Spring Guide

8

Tensioning Spring 0, 8mm

Tensioning Spring 0, 8mm

9

Stop Disk 12, 1x25x1

Stop Disk 12, 1x25x1

10

Needle Bearing 12x18x12 2002

Needle Bearing 12x18x12 2002

11

Shaft Seal Ring 12x20x5 B

Shaft Seal Ring 12x20x5 B

12

Shifting Lever Cpl.

Shifting Lever Cpl.

13

Steel Washer 6, 4x17x3

Steel Washer 6, 4x17x3

14

Hh Collar Screw M6x16 Isa 30

Hh Collar Screw M6x16 Isa 30

15

Pair Of Washers M 6 Nordlock

Pair Of Washers M 6 Nordlock

18

Pressure Spring 0, 9mm

Pressure Spring 0, 9mm

19

Shifting Rail Counter Shaft

Shifting Rail Counter Shaft

20

Shifting Rail Main Shaft

Shifting Rail Main Shaft

21

Needle Roller Zrb 6x10

Needle Roller Zrb 6x10

22

Shift Fork Main Shaft

Shift Fork Main Shaft

23

Shift Fork Countershaft R/s

Shift Fork Countershaft R/s

24

Shift Fork Countershaft Ll/s

Shift Fork Countershaft Ll/s

30

Ah Screw Din0912-m 6x30

Ah Screw Din0912-m 6x30

31

Shift Drum Locating Cpl.

Shift Drum Locating Cpl.

32

Ball Bearing 61805 C3

Ball Bearing 61805 C3

33

Shift Roller Cpl.

Shift Roller Cpl.

34

Ball Bearing 6903 C4

Ball Bearing 6903 C4

35

Locking Lever Spring 03

Locking Lever Spring 03

36

Sleeve For Locking Lever

Sleeve For Locking Lever

37

Locating Lever Cpl. 08

Locating Lever Cpl. 08

38

Washer Din7349-5x15x2

Washer Din7349-5x15x2

39

Hh Collar Screw M5x20 Tx30

Hh Collar Screw M5x20 Tx30
