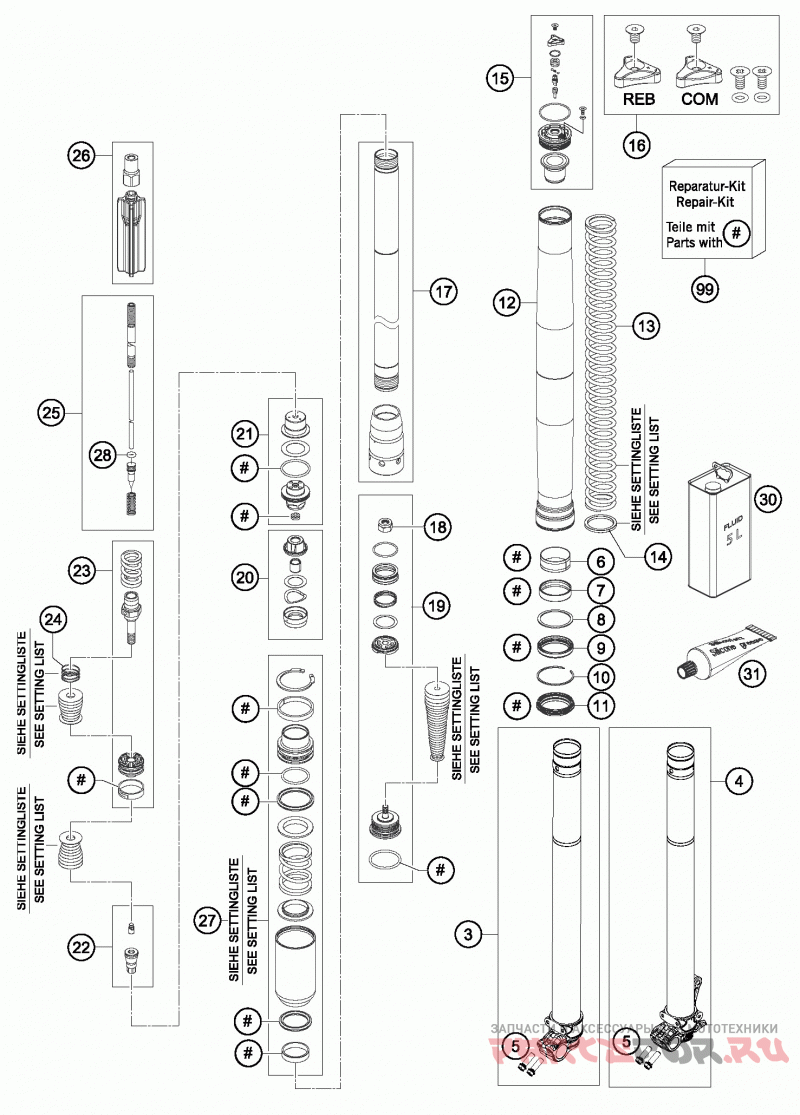

Передняя вилка

KTM 450 SXF FACTORY EDITION CHASSIS

KTM
#oem кодцена
3
48601327S1
Axle Clamp R/s With Inner Tube
4
48601326S1
Axle Clamp L/s With Inner Tube
5
0025080256
Hh Collar Screw M8x25 Tx40
6
48601008
Guiding Bush 47x49x20 R11
7
48601009
Guiding Bush 48x52x12 R11
8
48600013
Support Ring 50 X 57, 6 X 1, 5
9
48601179
Oil Sealring D48x57, 9x11, 4 Red
10
48600070
Lock Washer Sb58
11*
48601562
% Dust Seal D48x58, 4x5, 7 Red
12
48600736
Outer Tube L577 D54/60mm 2l
13
91410102S
Spring 4, 4n/mm Set D=4, 9mm
13
91410103S
Spring 4, 6n/mm Set D=4, 9mm
13
91410104S
Spring 4, 8n/mm Set D=4, 9mm
13
91410105S
Spring 5, 0n/mm Set D=4, 9mm
14
48600456
Spacer 43x35x2, 5
14
48600458
Spacer 43x35x1, 5
15
48601116E
Screw Cap M51x1, 5 Cpl.
15
48601050E
Screw Cap M51x1, 5 Reb. Kpl.
16
R14033
Screw Cap Small Part Kit
17
48601031S
Cartridge Kit
18*
40540486
Nut M6x0, 5 Rebound
20
48601025S1
Check Valve D21 Cpl.
21
R14035
Screw Sleeve Kit
22*
48601527S
Needle Kit
23*
R14056
Tap Kit
24
48600382
Shuttle Valve Spring C=0, 4
25
48601343S
Piston Rod Cpl.
26
48601035S1
Spring Guide Cpl.
27*
48601315S5
Pressure Tank For 24187p** Cpl
28
46811265
O-ring Viton 2, 2x1, 6
30
48601166S1
Fork Oil Sae4 5l
31
T511
Silicone Grease F. Dust Stri
99
R24001
Repair - Kit
