Электрика

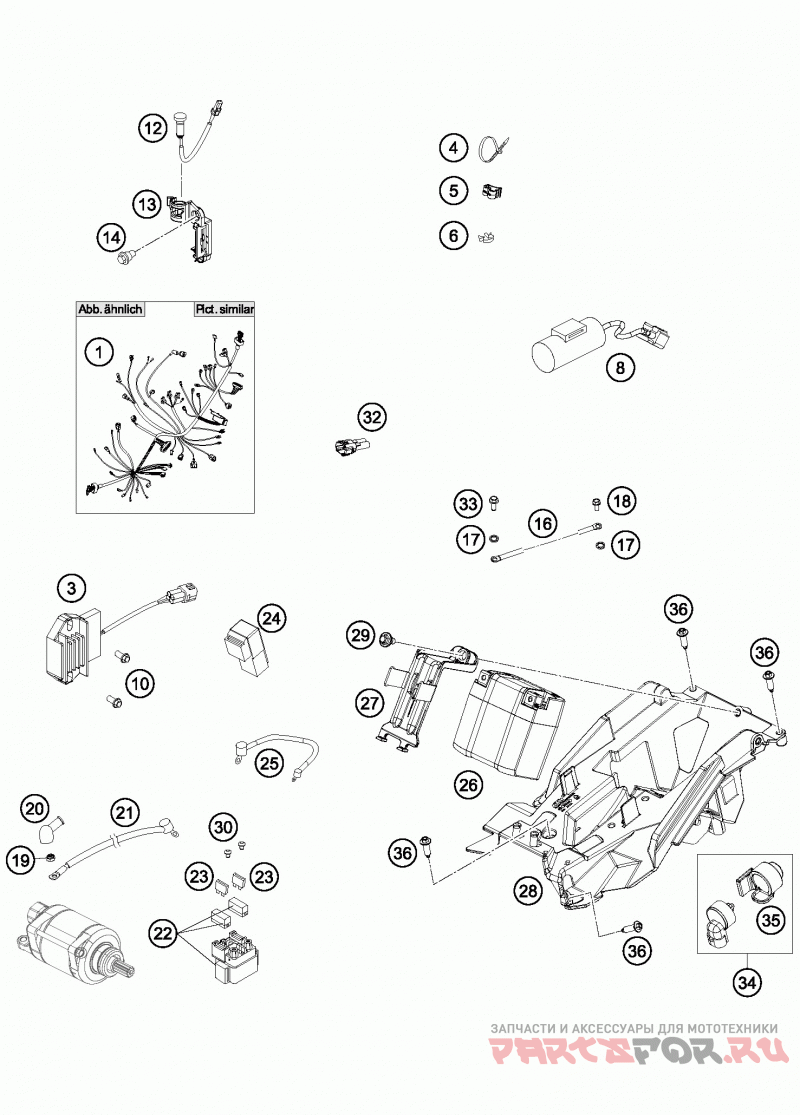

KTM 450 SXF FACTORY EDITION CHASSIS

KTM
#oem кодцена
1*
79211075000
Wiring Harness
3
77211034000
Voltage Regulator 09
4
44011076140
Cable Tie 140/2, 5mm Black
4
44011076200
Cable Tie 200/3, 6mm Black
4
44011076305
Cable Tie 300/4, 8mm Black
5
83013026000
Cable Guide
6
57013072100
Wiring Holder 16mm
8*
79011035000
Condenser 2016
10
0025060206
Hh Collar Screw M6x20 Tx30
12
81214083000
Indicator Light Led Yellow Fi
13
77214098000
Holder Indicator Light Sx
14
59001092050
Special Screw M6x12, 5 Ws=8
16
58411097100
Ground Cable D=6mm L=140mm '97
17
58411098100
Contact Washer M6 Vsv-k6
18
0009050106
Ejot Spiral Screw Sf M5x10-k
19
0985060003
Self Lock. Nut Din0985-m 6
20
77240099000
Protection Cap F. Starter Eng.
21
58411059100
Startercable 700 Mm '97
22
58211058000
Starter Relay 12v '99
23
58011109110
Fuse 10 A 2000
24
61111057000
Relay Cm1a-r-12v-h80 07
25
58711086000
Wiring Harness Battery Duke'99
26*
79011053100
Battery 12v / 2, 2ah
27*
79011056000
Battery Box Support
28*
79011055000
Battery Box
29*
83008000012
Special Screw M6x12x3
30
0902060083
Ah Oval Screw Iso 7380 M 6x8
32
69011040000
End Plug Can-bus 08
33
0025050126
Hh Collar Screw M5x12 Tx30
34*
76511010000
Map-select-switch
35*
76511010050
Rubber Holder F. Map-sel-swit.
36*
0017060205
Screw For Plastic K60x20 Sw6
