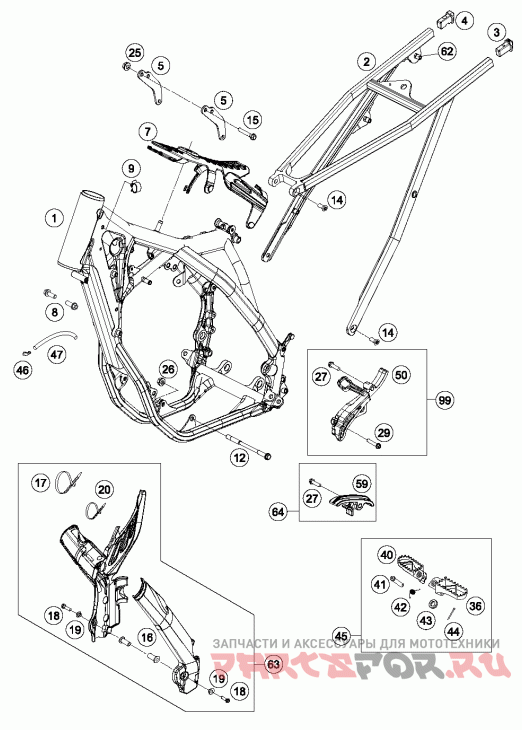

Рама

KTM 350 XCF CHASSIS

KTM
#oem кодцена
1*
7770300130004
Frame "777n4" Orange 2015
2
77203002000
Sub Frame Sx
3
78103002010
Sub Frame Application Left
4
78103002020
Sub Frame Application Right
5
77703013000
Reinforcing
7
77207012000
Tank Rest Rubber
8
0025080166S
Hh Collar Screw M8x16 Tx40
9
57013072100
Wiring Holder 16mm
12
77203014000
Engine Brac.scr. M10x115
14
0019080206S
Flat Head Screw M. Isa45 M8x20
15
56530079000S
Hh Collar Screw M8x44 Ws13
16
54803092050
Blind Plug-in Nut M5 Wn 22a 03
17
44011076305
Cable Tie 300/4, 8mm Black
18
0738050250
Cou.sunk Scr. Ah Iso7380 M5x25
19
54803092060
Bush F. Frame Protection 03
20
44011076140
Cable Tie 140/2, 5mm Black
25
06923080003
Hexagon Nut Din En1661 M8 Sw13
26
54310086100
Self Locking Nut M10 Cu Ws=14
27
0025080306
Hh Collar Screw M8x30 Tx40
29
0025060406
Hh Collar Screw M6x40 Tx30
36
78003040050
Footrest L/s 08
40
59003041250
% Foot Peg R/s Silver 02
41
54803044000
Pin For Foot Ped 51.5x9.8 Mm
42
54603041000
Footrest Spring L/s & R/s
43
0125100003
Washer Din0125-a10, 5
44
0094032253
Pin Din0094-3, 2x25 Steel
45
5030314013390
Footpeg L.+r. Cpl. 03
46
50303089000
Angle Piece '97
47
55007016001
Pvc-hose 7x10 Per Meter
50
77203096000
Sprocket Cover 350 Sx-f
59
77203053000
Chain Slider Lower Part Cpl.
62
77303139000
Blind Rivet Nut Em6-60lf/hx
63
77203094000
Plastic Frame Protection Set
64
77203053010
Chain Sliding Kit Below Cpl.11
99
77203096010
Sprocket Cover Kit
