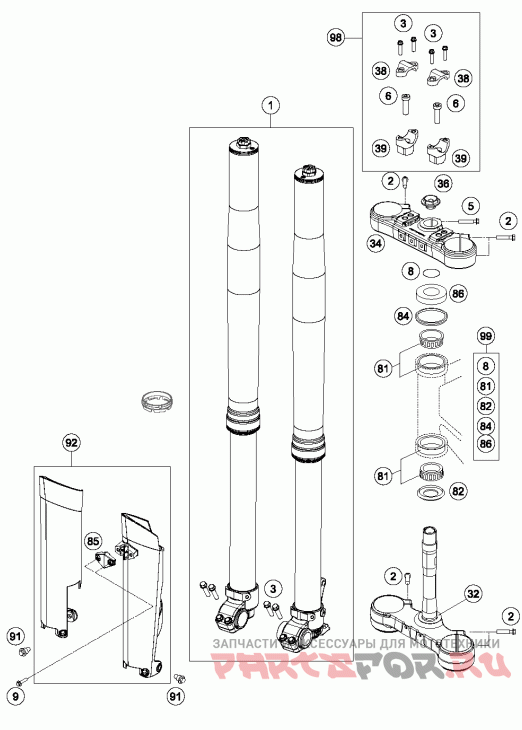

Передняя вилка

KTM 350 EXCF CHASSIS

KTM
#oem кодцена
1
14187L6701
Gabel Wp 350 Exc/xc-w 2012
2
0025080306
Hh Collar Screw M8x30 Tx40
3
0025080256
Hh Collar Screw M8x25 Tx40
5
0025080356
Hh Collar Screw M8x35 Tx40
6
0032100356S
Ah-collar Screw M10x35 Isa45
8
0770025035
O-ring 25x3, 55 Nbr70 05
9
0017060206
Screw F. Plastic K60x20al Sw6
32*
78101132120
Bottom Triple Clamp Cpl.
34
78101034020
Top Triple Clamp X=20mm
36*
70009082000
Axlescrew M20x1.5; Sw17
38
77201038000
Handlebar Clamp 28mm
39
59401039032
Handleb.supp. D=28mm H=32mm 05
39
59401039037
Handleb.supp. D=28mm H=37mm 05
39
59401039042
Handleb.supp. D=28mm H=42mm 05
81
54201081100
Tapered Roller Bearing Cpl. 06
82
77701084000
O-ring Support W. Sealing Lip
84
54601184000
Stearing Head Gasket Top
85
7800108500028
Clamp F. Speed. Cable D=6mm 08
86
78101086000
Steering Head Cover
91
59001092050
Special Screw M6x12, 5 Ws=8
92
7800109420028
Fork Protect. L/s+r/s White
98
00050000921
Handlebar Support Kit D28/h37
99
00050000930
Stearing Head Rep. Kit 06-15
