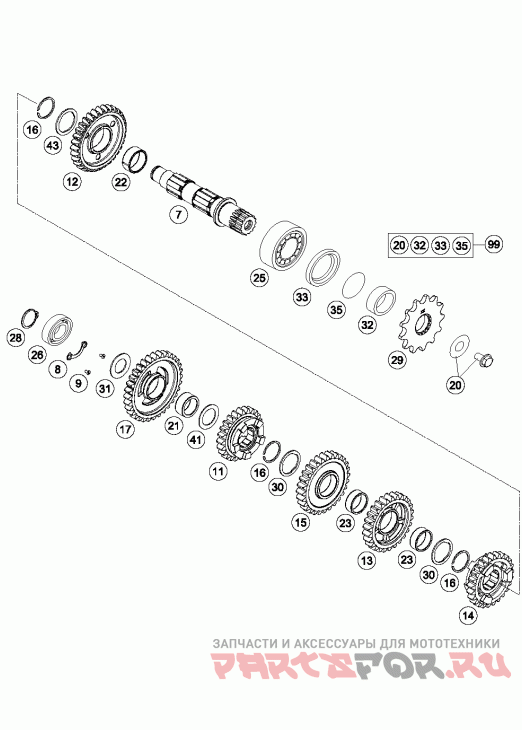

Трансмиссия 2-контрпривод

KTM 250 XCF ENGINE

KTM
#oem кодцена
7
77733110000
Промежуточный вал
8
78033132000
Tab Washer Bearing Count.shaft
9
0019050106S
Int. Torx Flat Head M5x10 10.9
11*
72033016000
Sliding Gear 6th Gear, 20t
12
77733112000
Idler Gear 2nd G. T=30
13
77733114100
Idler Gear 4.g. Z=28
14
77733115100
Sliding Gear 5.g., Z=23
15
77733113100
Idler Gear 3.g. Z=24
16
0417024000
Circlip Ws24
17
77733011000
Idler Gear 1st G. T=32
20
59033034044
Screw 10.9+spring Washer
21
0405202612
Needle Bearing K 20x26x12
22
0405242812
Neddle Bear. K24x28x11, 9 Div.
23
0405222611
Needle Bear.k 22x26x10 Divided
25
49030023000
Cyl.roll Bearing Nj205
26
0625062035
Ball Bearing 6203 Jr2 C3
28
0471170015
Circlip Din 0471-17x1, 5
29
50033029013
Front Sprocket 13-t
29
50033029014
Front Sprocket 14-t
30
77733043000
Stop Disc 23, 4x31x1, 5
31
77233020000
Stop Disk 17, 2x30x1, 3
32
54633014100
Spacer Bushing 12mm
33
0760324571
Shaft Seal Ring 32x45x7 Bslnbr
35
0770020220
O-ring 25, 12x1, 78 Nbr70
41
54833080000
Stop Disc 20, 2x30x1
43
77733044000
Stop Disc 24x32x1, 5
99
00050000941
Counter Shaft Rep.kit 4 Stroke
