Сцепление для мотоциклов KTM 250 XCF ENGINE (2015)

Москва и регионы России

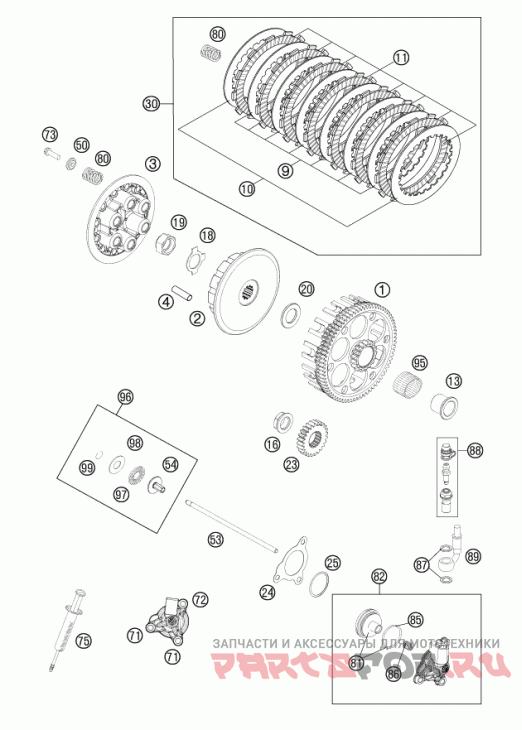

Сцепление

KTM 250 XCF ENGINE

Сцепление

#

oem код

название

цена

1*

Outer Clutch Hub

Outer Clutch Hub

2

Внутренняя Ступица Муфты

Внутренняя Ступица Муфты

3

Pressure Plate

Pressure Plate

4

Driving Sleeve D=7, 95 L=38

Driving Sleeve D=7, 95 L=38

9

Intermediate Disc 1, 4mm 2002

Intermediate Disc 1, 4mm 2002

10

Intermediate Disc 1mm 2002

Intermediate Disc 1mm 2002

11

Lining Disc 2mm 04

Lining Disc 2mm 04

13

Inner Ring

Inner Ring

16

Nut Primary Wheel

Nut Primary Wheel

18

Sheet Metal Lock

Sheet Metal Lock

19

Hexagon Nut M18x1, 5

Hexagon Nut M18x1, 5

20

Washer 21, 8 X 37 X 3

Washer 21, 8 X 37 X 3

23

Primary Gear 24t.

Primary Gear 24t.

24

Gasket F. Output Cylinder

Gasket F. Output Cylinder

25

O-ring 30, 00x1, 50 Nbr 70

O-ring 30, 00x1, 50 Nbr 70

30

Clutch Kit 350 Sx-f 11-15

Clutch Kit 350 Sx-f 11-15

50

Spring Retainer 6, 2x12x18x3, 6

Spring Retainer 6, 2x12x18x3, 6

53

Push Rod

Push Rod

54

Pressure Piece

Pressure Piece

71

Hh Collar Screw M6x16 Tx30

Hh Collar Screw M6x16 Tx30

72

Воротник Винт M6x35 Tx30

Воротник Винт M6x35 Tx30

73

Воротник Винт M6x25 Tx30

Воротник Винт M6x25 Tx30

75

Vent Injektion Hydr. Clutch

Vent Injektion Hydr. Clutch

80

Clutch Spring 2, 4x40 200'98

Clutch Spring 2, 4x40 200'98

81

Piston Cpl.

Piston Cpl.

82

Output Cylinder Cpl.

Output Cylinder Cpl.

85

Уплотнительное кольцо

Уплотнительное кольцо

86

Pressure Spring

Pressure Spring

87

Cu-seal Ring Din7603-10x16x1

Cu-seal Ring Din7603-10x16x1

88

Bleeder Screw Cpl. 05

Bleeder Screw Cpl. 05

89

Clutch Pipe 06

Clutch Pipe 06

95

Needle Bearing K26x30x22zw.kse

Needle Bearing K26x30x22zw.kse

96

Pressure Piece Cpl. 08

Pressure Piece Cpl. 08

97

Axial Needle Bearing Axk 1226

Axial Needle Bearing Axk 1226

98

Axial Washer As1226 12x26x1

Axial Washer As1226 12x26x1

99

Circlip Din7993-rw12

Circlip Din7993-rw12
